Kohler OVE K-17629T-2 Installation Instructions Manual

One-piece
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information -
consumer
.
ORDERING INFORMATION
OVE Toilet..............................................................K-17629T-2
Includes
OVE Toilet Seat ...............................
®
OVE Toilet ...........................................................K-17629T-S2
Includes
OVE Quiet-close Toilet Seat ............
®
NOTES
·
Observe all local plumbing and building codes.
·
Shut off the water supply.
·
Ensure that the new drain has the correct roughing-in
dimension.
·
Carefully inspect the new fixture for any sign of damage.
·
Fixture dimensions are nominal and conform to tolerances
established by ASME Standards (A112.19.2-2018).
·
This product complies with Q/KCI-006-2018 and GB
25502-2017. Water Efficiency Grade 2.
WARNING: Risk of personal injury or product
damage
: Handle vitreous china products very carefully.
Vitreous china can break and chip if you over tighten
bolts and nuts.
WARNING: Risk of external leakage
nut has been factory-tightened to design specifications.
If re-tightening is required, wrench tighten 1/4 turn past
finger tight.
No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137
8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA
NO.1 KOHLER STREET, ECONOMIC DEVELOPMENT ZONE OF FAKU COUNTY, SHENYANG LIAONING PROVINCE, PRC
1089093-T01-H
please leave instructions for the
K-17669T-M
K-17660T-M
. The fill valve
·
·
·
.............................................................K-17629T-2
...........................................................K-17629T-S2
·
·
·
·
·
2018)
·
Q/KCI-006-2018 GB 25502-2017
2
1/4
2
528137
8
256410
1
110400
©
Copyright Kohler China Investment Co., Ltd. 2020
-1-
©

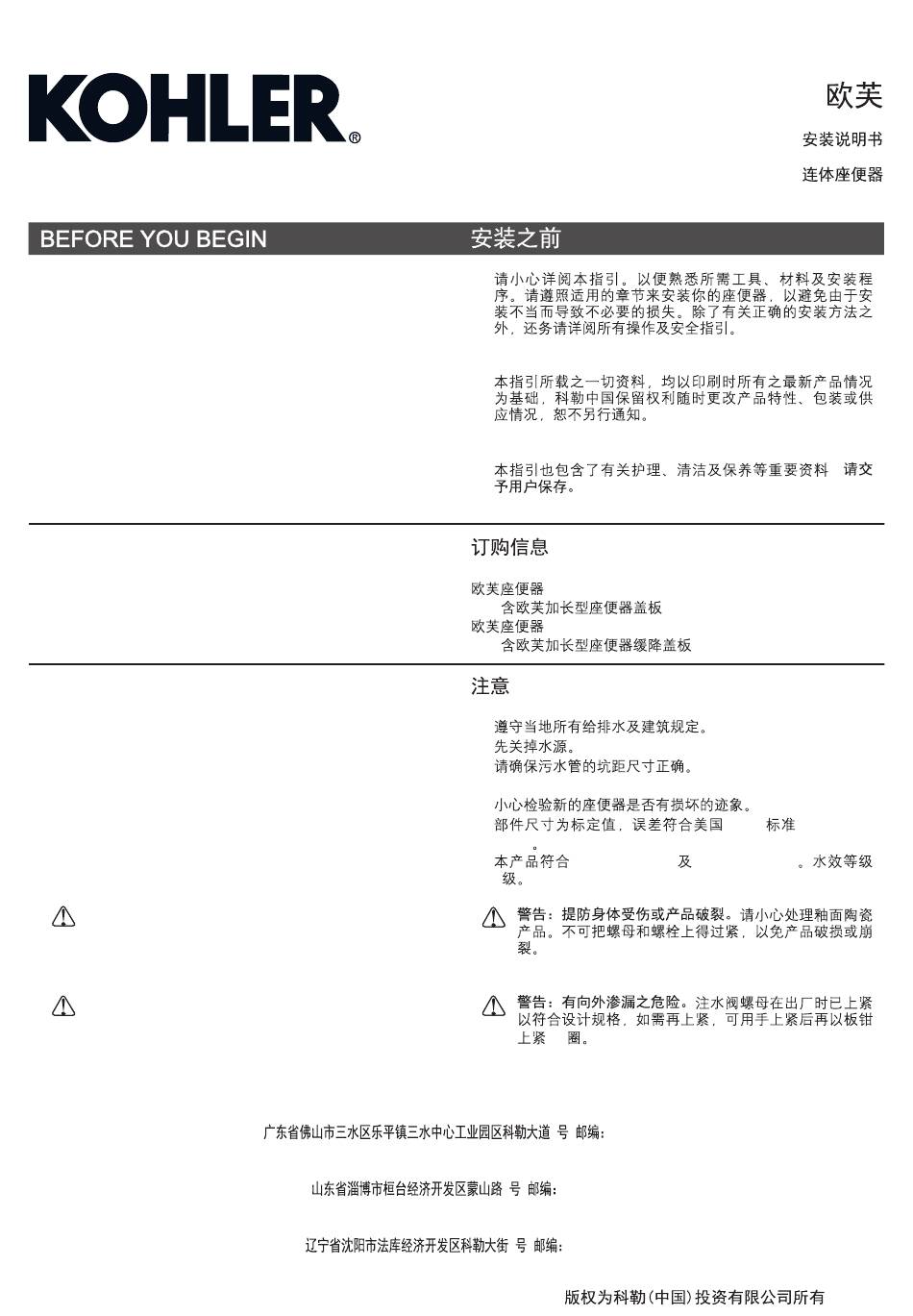

OVE
INSTALLATION INSTRUCTIONS
ONE-PIECE TOILET
K-17629T-2/K-17629T-S2
...............................K-17669T-M
........................K-17660T-M
ASME
(A112.19.2-
POST CODE:
256410
POST CODE:
-
:
110400
2020

Advertisement

Table of Contents
loading

Related Manuals for Kohler OVE K-17629T-2

Summary of Contents for Kohler OVE K-17629T-2

  • Page 1 If re-tightening is required, wrench tighten 1/4 turn past finger tight. No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137 528137 8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA...

  • Page 2: Tools And Materials Required

    · · Connector · · Metal file · · 1/2" Nut Driver/Socket 1/2" · · Hacksaw Reference Value Unit: mm Button Finished Wall With 1226681 S-trap Way 1226681 Kohler reserves the right to change marked dimensions without prior notice. 1089093-T01-H...

  • Page 3: Installation

    INSTALLATION 1. Remove the Existing Toilet · · Turn off the water supply. · · Flush the toilet, then sponge out all remaining water from the tank. · · Disconnect the supply shut-off valve(if present), and remove the old bowl and tank. CAUTION: Risk of hazardous gases.
  • Page 4 4. DEFINE THE POSITION OF S-TRAP Finished Wall 1226681 S-Trap 5. INSTALL THE NEW PAN Place the pan and push up against the wall. Check the mounting hole with pan on the floor. Carefully remove the pan from the installation area. 10mm Drill 3/8(10mm) mounting holes between the marked locations on the floor and insert the anchor.
  • Page 5 6. CONNECT THE SUPPLY Connect the supply shut-off valve to the supply hose and connect supply hose to toilet supply shank. Open the supply shut-off valve slowly to check for leaks. If the connections have been properly assembled, a slight tightening of the nuts should stop leakage.

  • Page 6: Install The Seat

    8. Install And Adjust Push Buttons (1) Fix tank cover onto the tank. (2) Unscrew the big white nut on the push button and insert the button into the hole on the tank. (3) Test the push buttons. 1) No need for any adjustment if the rods just touch the push buttons on the flush valve.
  • Page 7 This troubleshooting guide is for general aid only. Note: If the problem is water continuously running into the toilet, turn off the water supply to the toilet. Do not flush. If the water level in the tank lowers, replace the seal of the flush valve. If the level in the tank remains constant, replace the float valve. 1.

  • Page 8: Consumer Responsibilities

    CAUTION: Don t use any cement while installing the toilet. Heat expansion of the toilet may damage the feet of the toilet. Kohler will not be responsible for any damage because of using cement. WARNING: Risk of product damage. Do not throw into the toilet what is easy to block it, such as newspaper, paper pilch, sanitary towel.
