MTD Model 588Q Operator's Manual

21" rotary mower operator's manual
Hide thumbs Also See for Model 588Q:
Table of Contents

Advertisement

Quick Links

Operator's Manual
21" Rotary Mower
Model 588Q
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-cov-
ered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable
local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State
of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws.
Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer
or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
769-00962.fm
PRINTED IN U.S.A.
Form No.
(11/2003)

Advertisement

Table of Contents
loading

Related Manuals for MTD Model 588Q

Summary of Contents for MTD Model 588Q

  • Page 1 Operator’s Manual 21” Rotary Mower Model 588Q Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-cov- ered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).

  • Page 2: Table Of Contents

    Know Your Lawn Mower Operating Your Lawn Mower This Operator’s Manual is an important part of your new lawn mower. It will help you assemble, prepare and maintain the unit for best performance. Please read and understand what it says.

  • Page 3: Important Safe Operation Practices

    SECTION 1: IMPORTANT SAFE OPERATION PRACTICES WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.

  • Page 4: Slope Operation

    immediately and the blade will stop rotating within three seconds. 9. Mow in daylight or good artificial light; walk, not run. 10. Stop the blade when crossing gravel drives, walkways or roads. 11. If the equipment should start to vibrate abnormally, stop the engine and check immediately for the cause.
  • Page 5 10. Never over fill fuel tank. Fill tank to no more than ½ inch below bottom of filler neck to provide space for fuel expansion. 11. Replace gasoline cap and tighten securely. 12. If gasoline is spilled, wipe it off the engine and equipment.

  • Page 6: Slope Gauge

    SECTION 2: SLOPE GAUGE Use this page as a guide to determine slopes where you may not operate safely. Do not operate your lawn mower on such slopes.

  • Page 7: Assembling Your Lawn Mower

    Carriage Wing Nut shown here. Bolt Before Assembly • Before setting up your lawn mower, disconnect the spark plug wire from the spark plug. See Figure 1. Spark Plug Wire Spark Plug Figure 1 NOTE: Reference to right or left hand side of the mower is observed from the operating position.
  • Page 8 • After moving the hairpin clip, insert the carriage bolt, from the hardware pack, in the upper hole on the handle mounting bracket and secure with plastic wing nut from the hardware pack. See Figure 4. Repeat on the other side. •...

  • Page 9: Know Your Lawn Mower

    Figure 10 Read this operator’s manual and safety rules before operating your lawn mower. Compare the illustration in Figure 10 with your lawn mower to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference.

  • Page 10: Operating Your Lawn Mower

    Starting Engine WARNING: Be sure no one other than the operator is standing near the lawn mower while starting engine or operating mower. WARNING: Never run engine indoors or in enclosed, poorly ventilated areas. Engine exhaust contains carbon monoxide, an odorless and deadly gas.

  • Page 11: Service & Adjustments

    WARNING: If the mower strikes a foreign object, stop the engine. Remove spark plug wire from the spark plug and thoroughly inspect for any damage. Repair the damage promptly before restarting and operating the mower. Bagging Grass Clippings You can use the grass catcher bag to collect clippings while you are operating the mower.

  • Page 12: Maintaining Your Lawn Mower

    • Disconnect spark plug wire. Drain the gasoline from the lawn mower, or place a piece of plastic under the gas cap. • Remove the blade and the adapter from the crankshaft.

  • Page 13: Troubleshooting

    Wheels not positioned correctly. Dull blade. Off-Season Storage The following steps should be taken to prepare your lawn mower for storage. • Clean and lubricate mower thoroughly as described in the lubrication instructions. We do not recommend the use of a IMPORTANT: pressure washer or garden hose to clean your unit.

  • Page 14: Illustrated Parts List

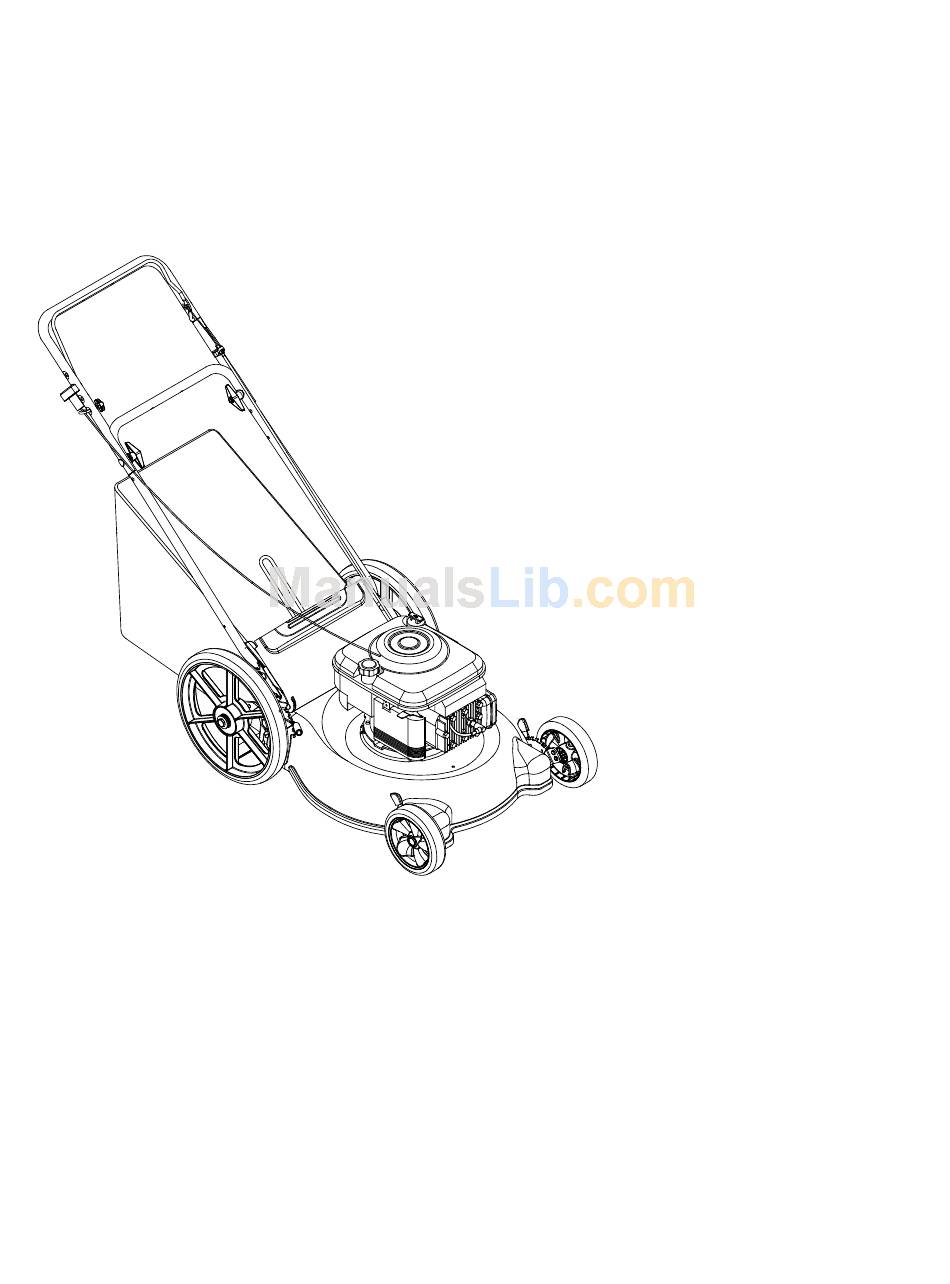

    SECTION 9: PARTS LIST MODEL 588Q 21 20...
  • Page 15 Model 588Q Ref. Part No. Part Description 749-1092A Upper Handle 747-1161A Control Handle 720-0279 Handle Knob 710-1205 Rope Guide 710-1174 Carriage Bolt 5/16-18 x 2” 736-0451 Shoulder Washer.320 ID x.930 OD 720-0284 Wing Nut 749-0928A Lower Handle 746-1113 Control Cable 37.75”...

  • Page 16: Warranty

    MANUFACTURER’S LIMITED WARRANTY FOR: The limited warranty set forth below is given by MTD LLC with respect to new merchandise purchased and used in the United States, its possessions and territories. “MTD”warrants this product against defects in material and workmanship for a period of two (2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in materials or workmanship.
