Summary of Contents for Weil-McLain AlumniPEX Radiant Heater

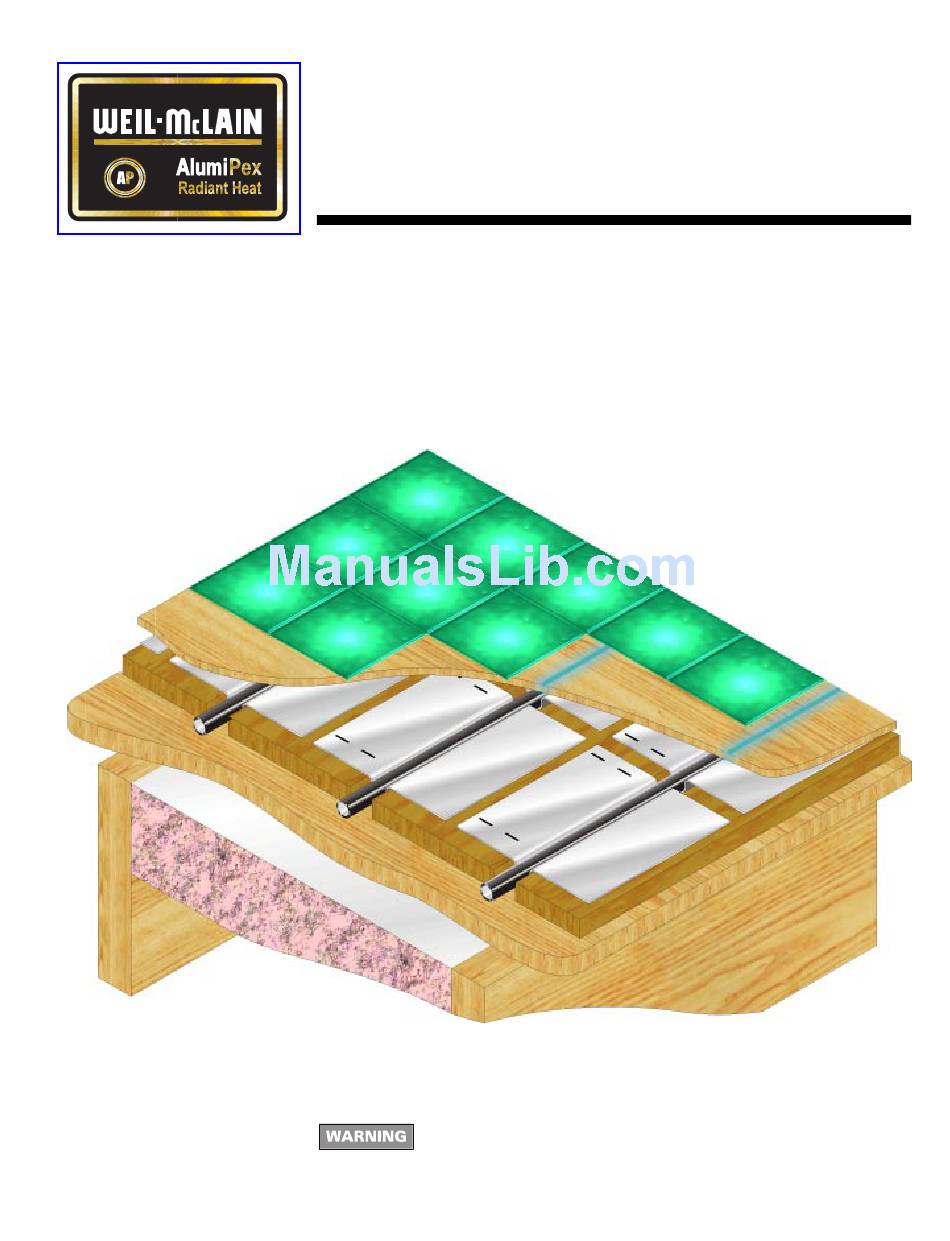

- Page 1 These Instructions must be used only by a qualified installer/service technician. Read these instructions completely before beginning. Failure to follow these instructions can cause severe personal injury, death or substantial property damage. Part No. 650-000-221/0298...
-
Page 2: Codes And Standards
Indicates presence of hazards that will cause severe personal injury, death or substantial property damage. Indicates presence of hazards that will or can cause minor personal injury or property damage. • This guide is provided for general information only. The building or heating system designer is responsible for all design details and for compliance with all building codes, local and national. -
Page 3: Table Of Contents
Above Floor Installation Guide ALUMIPEX STEP-BY-STEP - - - ABOVE FLOOR INSTALLATION Page CONTENTS Tube Layouts for Radiant Heating Obtain Tube Layout Drawing Meet with General Contractor Obtain Materials Obtain Special Equipment Pre-Installation Check List Mark Tube Layout on Subfloor Mount Manifold(s) Install the Tubing Pressure Test Tubing... -
Page 4: Tube Layouts For Radiant Heating
A. Tube Layouts for Radiant Heating Radiant Floor Heatng Hot water flowing in the radiant tubing under the finished flooring heats the flooring and the heat emission plates. The heat emission plates help spread the heat evenly across the flooring. Heat must pass through the flooring and the coverings on the floor (low pile carpeting and thermal pads, for example). - Page 5 Outside Wall Interior Partition Supply Return These drawings are conceptual only. Consult Weil-McLain Radiant Guides or Software for actual project layout. NOTE FLOW DIRECTION The warmest water is directed next to the outside wall. BEND DIAMETER Maintain a MINIMUM bend...
- Page 6 DINING LIVING ROOM This drawing is conceptual only. Consult Weil-McLain Radiant Guides or Software for actual project layout. Tubing Finished Circuit Flooring Low pile carpet w/ thermal pad Low pile carpet w/ thermal pad Laminated hardwood Ceramic tile Ceramic tile...
-
Page 7: Obtain Tube Layout Drawing
Above Floor Installation Guide Floor Plan/Layout Should ..Be drawn to scale using a CAD program so tube lengths can be calculated by the program. Show complete floor plan, including all appliances, cabinets, fireplaces and any other details which could affect the routing of the tubing. -
Page 8: Meet With General Contractor
C. Meet with General Contractor We suggest you meet with the general contractor and follow this checklist: Review the AlumiPex Trade Guides with the general contractor and ask him to provide the information and copies to each of the trades involved. -
Page 9: Obtain Materials
Above Floor Installation Guide D. Obtain Materials AlumiPex Tubing • In rolls and sizes specified on tube layout drawing. AlumiPex Tube Fittings • Refer to AlumiPex Fitting Instructions for part numbers and procedures. Use only AlumiPex Fittings with AlumiPex Tubing. Use of any other method can result in severe personal injury, death or substantial property damage. -
Page 10: Obtain Special Equipment
E. Obtain Special Equipment Tubing Uncoiler Assists in tube installation. AlumiPex Tube Cutter AlumiPex Radiant Tubing AlumiPex Reamer/Sizer(s) Pressure Gauge With a scale range of 150 psig. For pressure testing and tubing pressurization. Part Number 650-000-221/0298... -
Page 11: Pre-Installation Check List
Above Floor Installation Guide Pre-Installation Check List Subfloor must be installed. Interior framing should be completed, but drywall and finish carpentry not in place if possible. Review AlumiPex Trade Guides with general contractor to ensure other trades will be informed. G. -
Page 12: Mount Manifold(S)
H. Mount Manifold(s) Accurately measure the location of the manifold mounting wall (if not already installed). Placement of the manifold and the tube penetrations is critical. Take extra care in laying out these locations so all items will be in proper position for the interior framing of the building. - Page 13 Above Floor Installation Guide 4“ Cover 24“ Joists The details shown are representative only. Other mounting configurations are possible. AlumiPex Manifold, Typical Refer to AlumiPex Manifold Instructions for details of mounting, assembly and application. Mounting Configuration The installed depth of the manifold assembly is approximately 4 inches.
-
Page 14: Install The Tubing
Install the Tubing Always wear safety glasses for eye protection when handling AlumiPex tubing. The tubing can spring back when pulled. Failure to follow this guideline could result in serious personal injury. Install the sleepers. Beginning from one side of each room, use your floor markings and the tube layout drawing to place the sleepers. - Page 15 Above Floor Installation Guide Figure 10 - Typical sleeper layout and installation SLEEPER LAYOUT - ABOVE FLOOR These drawings are conceptual only. Consult Weil-McLain Radiant Guides or Software for actual project layout. SLEEPERS Typically sleepers are 1 x __ lumber or (Width of sleeper is equal to the required tube spacing less 1 inch.)
- Page 16 ABOVE FLOOR INSTALLATION This drawing is conceptual only. Consult Weil-McLain Radiant Guides or Software for actual project layout. AlumiPex Tubing, 1/2” Use AlumiPex tubing, 1/2”, commonly spaced on 6½-inch centers as shown (equal to 5½" for the sleeper plus 1" gap).
- Page 17 Above Floor Installation Guide Pressure Test the Finished Tubing Installation After all tubing has been routed and connected to the manifold, pressure test all tubing circuits before finished flooring is installed. Refer to AlumiPex Manifold Instructions. Isolate the AlumiPex manifolds and tubing from any other piping.
-
Page 18: Connect System Piping
L. Connect System Piping & Heating System Components Install piping and heating system components if framing is in place. Don’t solder within 18 inches of tubing. Cover tubing to protect it from solder drip. K. Pressurize Tubing for Observation After the system has been proven leak free, pressurize all tubing circuits to 30 psig. -
Page 19: Inspection, Repair & Troubleshooting
Above Floor Installation Guide N. Inspect Tubing Before Finished Flooring Installation Arrange to inspect the installation a day before the scheduled finished flooring installation starts. Check the pressure gauge to verify the system is still pressurized at or near 30 psig. Visually inspect all tubing to verify there is no damage. - Page 20 AlumiPex Radiant Tubing Part Number 650-000-221/0298...
