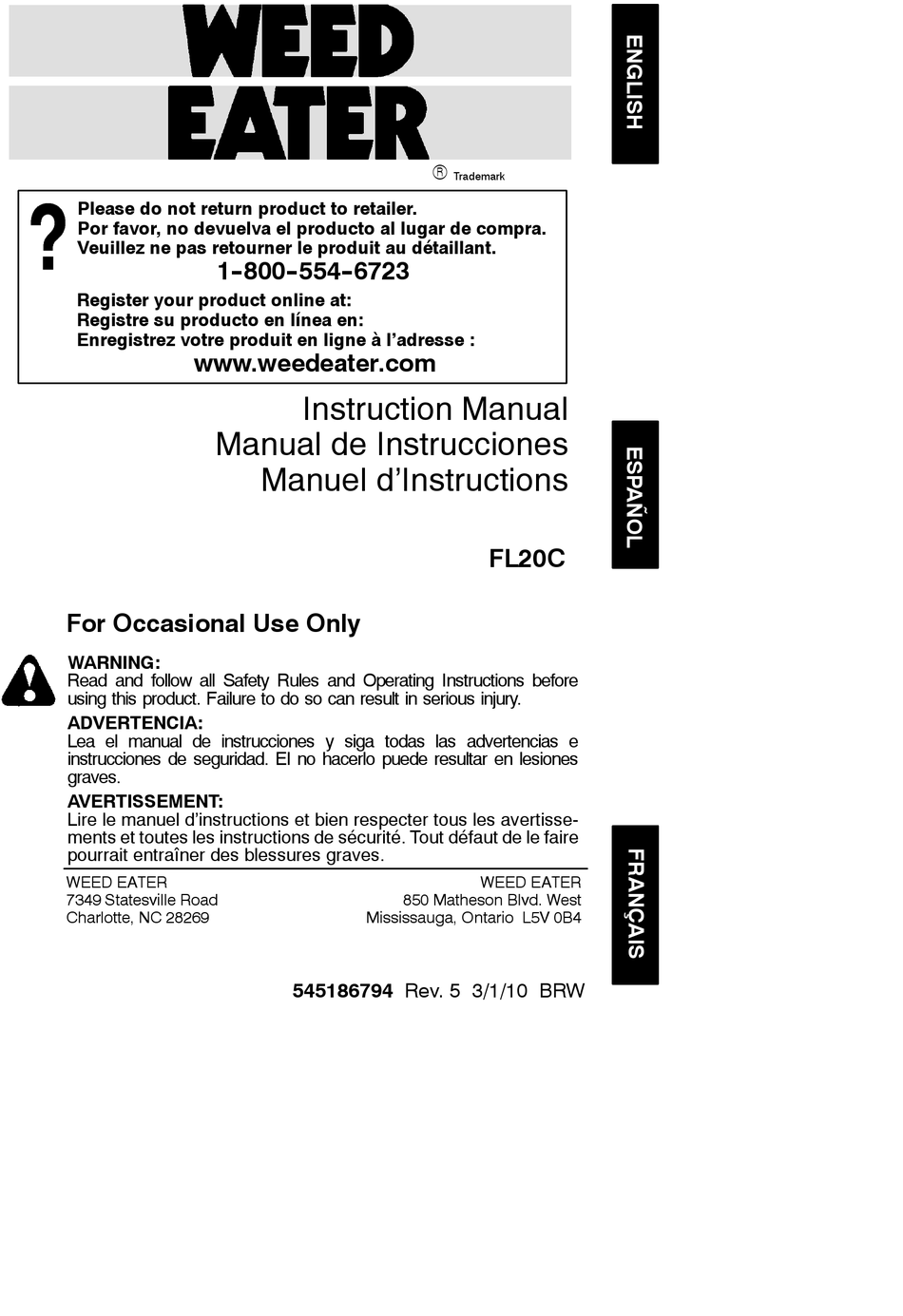

Please do not return product to retailer.
Por favor, no devuelva el producto al lugar de compra.
Veuillez ne pas retourner le produit au détaillant.
1- -800- -554- -6723
Register your product online at:
Registre su producto en línea en:
Enregistrez votre produit en ligne à l'adresse :
www.weedeater.com
Manual de Instrucciones
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en lesiones
graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
WEED EATER
7349 Statesville Road
Charlotte, NC 28269
Instruction Manual
Manuel d'Instructions
850 Matheson Blvd. West
Mississauga, Ontario L5V 0B4
545186794 Rev. 5 3/1/10 BRW
R
Trademark
FL20C
WEED EATER
Advertisement
Table of Contents
Related Manuals for Weed Eater 952711938
Summary of Contents for Weed Eater 952711938
- Page 1 Lire le manuel d’instructions et bien respecter tous les avertisse- ments et toutes les instructions de sécurité. Tout défaut de le faire pourrait entraîner des blessures graves. WEED EATER 7349 Statesville Road Charlotte, NC 28269 545186794 Rev. 5 3/1/10 BRW...
-
Page 2: Identification Of Safety Symbols
IDENTIFICATION OF SAFETY SYMBOLS DANGER: spool, and 0.065 inch (1.65 mm) recommended trimmer line. Never use blades, flailing devices, wire, rope, string, etc. Unit is designed for line trim- mer use only. Failure to follow these instructions may result in serious injury. WARNING: This unit can be dangerous! Careless or improper use can cause serious injury. -
Page 3: Safety Rules
IDENTIFICATION OF SAFETY SYMBOLS Store unit indoors in a high, dry place out of the reach of children. When servicing unit, use only identical replace- ment parts. Always stop unit and disconnect spark plug before cleaning or servicing. WARNING: Fire hazard. Never mix, pour, or store gasoline or use the unit near a flame or sparks (including smoking, open flames, or work that can cause sparks). -
Page 4: Fuel Safety
S Maintain unit according to recommended pro- cedures. Keep cutting line at proper length. S Use only 0.065 inch (1.65 mm) diameter WEED EATER brand line. Never use wire, rope, string, etc. S Install required shield properly before using the unit. Use only specified trimmer head;... -
Page 5: Adjusting The Handle
ASSEMBLY WARNING: If received assembled, repeat all steps to ensure your unit is properly assembled and all fasteners are secure. Examine parts for damage. Do not use dam- aged parts. NOTE: If you need assistance or find parts missing or damaged, call 1-800-554-6723. It is normal for the fuel filter to rattle in the empty fuel tank. -
Page 6: Operation
Before operation, gasoline must be mixed with a good quality synthetic 2-cycle air-cooled engine oil designed to be mixed at a ratio of 40:1. Poulan/WEED EATER brand synthetic oil is recommended. Mix gasoline and oil at a ratio of 40:1. A 40:1 ratio is obtained by mixing 3.2 fluid ounces (95 ml) of... -
Page 7: Starting A Warm Engine
your unit. This will cause permanent engine damage and void the limited warranty. FUEL REQUIREMENTS This engine requires the use of minimum 87 octane [R+M]/2 clean gasoline. IMPORTANT Use of alcohol blended fuels (called gasohol or using ethanol or methanol) can cause major en- gine performance and durability problems. -
Page 8: Cutting Methods
Flooded engines can be started by placing the choke lever in the RUN position; then, pull the rope to clear the engine of excess fuel. This could require pulling the starter handle many times depending on how badly the unit is flooded. -
Page 9: Clean Air Filter
If any dealer other than an authorized service dealer performs work on the product, WEED EATER may not pay for repairs under warranty. It is your re- sponsibility to maintain and perform general maintenance. -
Page 10: Line Replacement
2. Clean entire surface of hub and spool. 3. Replace with pre- -wound spool, or cut a length of 18 feet of 0.065 inch (1.65 mm) diameter WEED EATER brand line. WARNING: Never use wire, rope, string, etc., which can break off and become a dangerous missile. - Page 11 Idle Speed Screw Air Filter Cover WARNING: Perform the following steps after each use: S Allow engine to cool, and secure the unit before storing or transporting. S Store unit and fuel in a well ventilated area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces, etc.
- Page 12 WARNING: Always stop unit and disconnect spark plug before performing all of the recommended remedies below except remedies that require operation of the unit. TROUBLE CAUSE Engine will not 1. Engine flooded. start. 2. Fuel tank empty. 3. Spark plug not firing. 4.
-
Page 13: Limited Warranty
WEED EATER, a division of Husqvarna Consumer Outdoor Products N.A., Inc., warrants to the original consumer purchaser that each new WEED EATER brand gasoline tool or attachment is free from defects in material and workmanship and agrees to repair or replace under this warranty any defective gasoline product or attachment as follows from the original date of purchase. - Page 14 WEED EATER at 1- -800- -554- -6723, or send e-mail correspondence to emission.warranty @HCOP- -emission.com. WARRANTY PE- RIOD: Any warranted part which is not...
