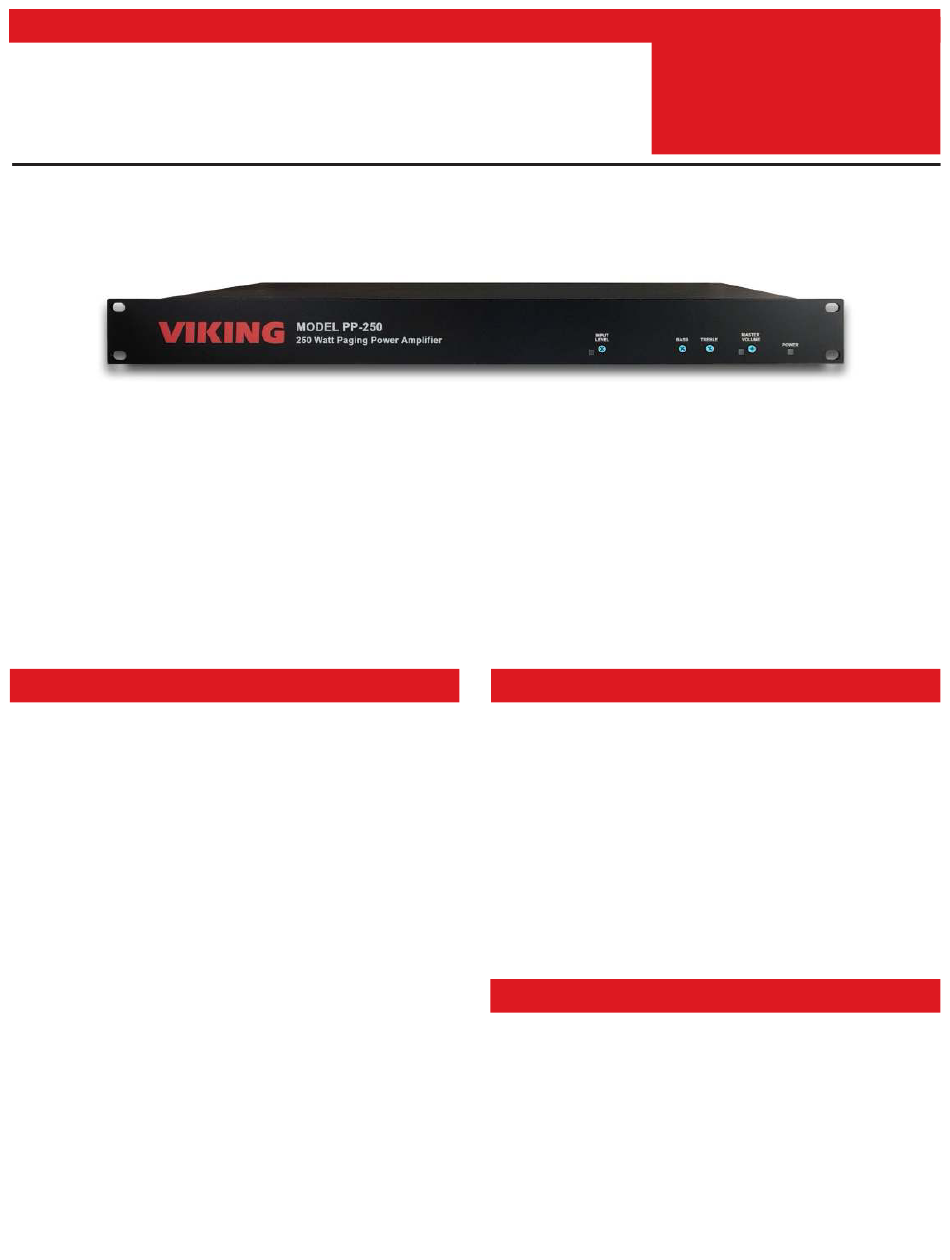

250 Watt 70V Paging Power Amplifier
The PP-250 is a 250 Watt 70V Paging Power
Amplifier that can drive up to two hundred fifty (250)
70V speakers and/or paging horns (each speaker
set to "1 Watt tap"). The small 1U rack size chassis
is possible because the PP-250 uses new amplifier
technology that is 3 times more efficient than old
designs competitors use. The high efficiency of the
PP-250 means much less heat dissipation, smaller
size, higher reliability, and lower cost.
Features
• Powerful 70V amplifier drives up to 250 Watt load
• Line input allows connection to any analog line
level output, such as: telephone system paging
port, paging mixer, etc.
• Volume control
• Input Level control
• Bass and treble controls
• Power and volume LEDs
• Peak limiter and multiple protection modes
Information: 715-386-8861
www.VikingElectronics.com
PRODUCT
MANUAL
There are many advantages of using a 70V
distributed audio paging system, such as being
able to put more speakers on a wire run, having
longer speaker wire runs, using smaller gauge
wire, and being able to set the volume of each
speaker independently.
The PP-250 Line Input can connect to telephone
system paging ports, paging mixers, etc.
• Paging systems requiring 8 to 250 speakers
• Paging from virtually any analog line level paging source
• Installations that can utilize the below advantages of a
70V distributed audio system:
- Longer wire runs using smaller gauge speaker wire to
save costs
- Many speakers can be connected on the same wire
run to save costs
- Set each speaker's volume individually using its own
power taps
Power: 100V to 240V AC, 50 to 60Hz
Dimensions: approximately 19" x 1.75" x 6" (483 mm x 44.5 mm
x 153 mm)
Shipping Weight: lbs ( kg)
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95%
non-condensing humidity
Paging Output: Capable of driving 250 Watt load of 70V
speakers
Power Cord: Dual IEC C7 plugs "Y" Power Cord included
Connections: (7) removable cage clamp screw terminals, (2)
IEC C8 AC power inlets
PP-250
250 Watt / 70V Paging
Power Amplifier
June 16, 2020
Applications
Specifications
