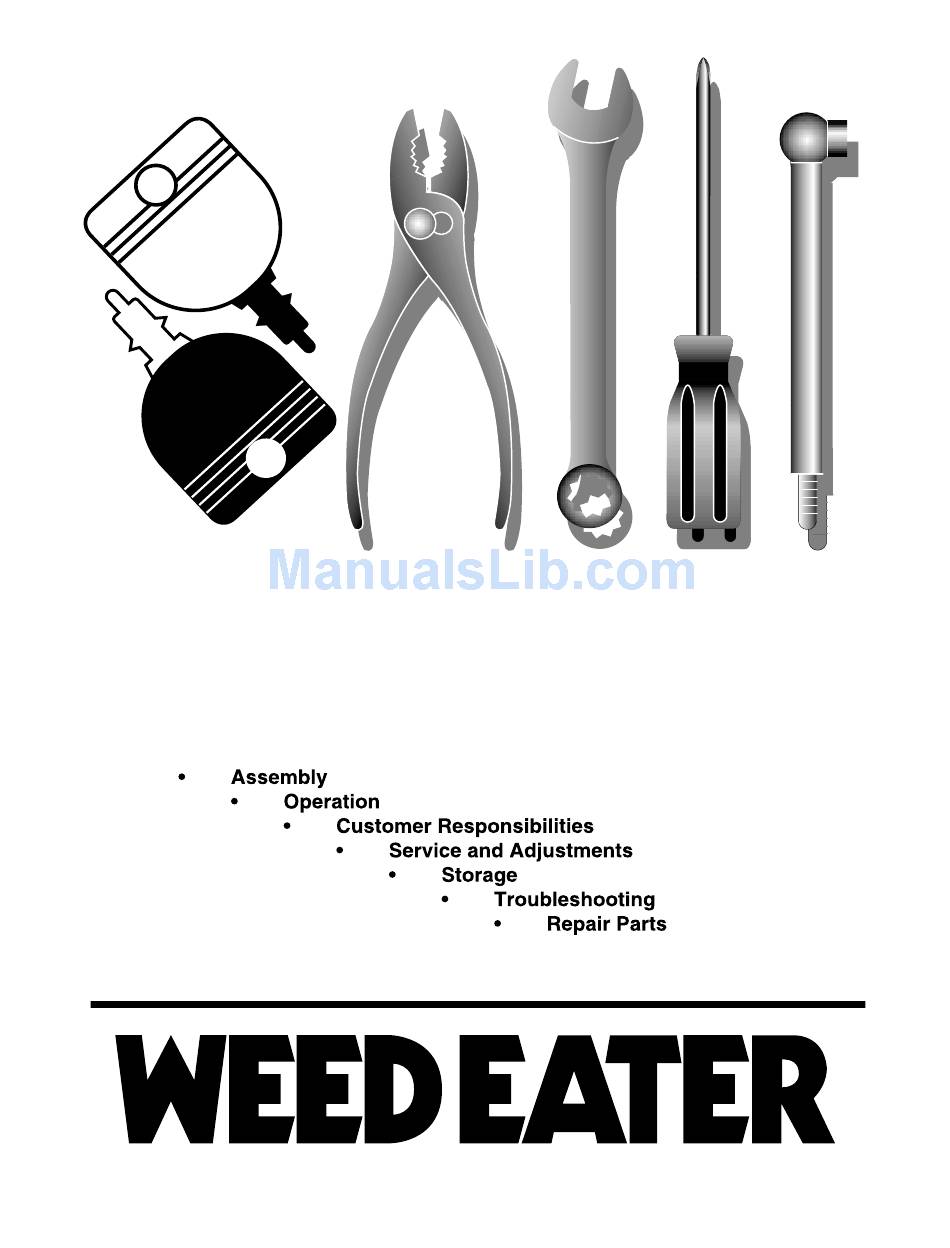

- Page 1 OWNER'S MANUAL MODEL NO. WE13T38D 13.0 HP 38 Inch Lawn Tractor For Parts and Service, contact our authorized distributor: call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886 ® 178078 1.10.01 RD PRINTED IN U.S.A.
-
Page 2: Safety Rules
SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. I. GENERAL OPERATION • Read, understand, and follow all instructions in the manual and on the machine before starting. -
Page 3: Table Of Contents
Safe Operation Practices for Ride-On Mowers • Check brake operation frequently. Adjust and service as required. • Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area. • Never carry passengers or children even with the blades off. -
Page 4: Product Specifications
PRODUCT SPECIFICATIONS GASOLINE CAPACITY 1.25 GALLONS AND TYPE: UNLEADED REGULAR OIL TYPE (API-SF-SJ): SAE 30 (above 32°F) SAE 5W-30 (below 32°F) OIL CAPACITY: 2 PINTS SPARK PLUG: CHAMPION RN4C (GAP: .030") GROUND SPEED (MPH): FORWARD: REVERSE: TIRE PRESSURE: FRONT: REAR: CHARGING SYSTEM: 3 AMPS BATTERY 5 AMPS HEADLIGHTS... -
Page 5: Unassembled Parts
UNASSEMBLED PARTS Steering Wheel Steering Extension Shaft Steering (1) Lockwasher 3/8 Boot (1) Large Flat Washer (1) Hex Bolt 5/16-18 x 1-1/4 Steering Wheel Adapter (1) Washer 17/32 x 1-3/16 x 12 Gauge Steering Wheel Insert (1) Bolt (1) Locknut 5/16-18 (1) Hex Bolt 3/8-16 x 1... -
Page 6: Assembly
Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness. -
Page 7: How To Set Up Your Tractor
HOW TO SET UP YOUR TRACTOR CHECK BATTERY (See Fig. 2) • Lift seat pan to raised position and open battery box door. • If this battery is put into service after month and year indicated on label (label located between terminals) charge battery for minimum of one hour at 6-10 amps. -
Page 8: Assembly
TO DRIVE TRACTOR OFF SKID (See Opera- tion section, page 10, for location and func- tion of controls) WARNING: Before starting, read, understand and follow all instructions in the Operation section of this manual. Be sure tractor is in a well-ventilated area. Be sure the area in front of tractor is clear of other people and objects. -
Page 9: Operation
These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. BATTERY CAUTION OR WARNING ENGINE ON ENGINE OFF FUEL CHOKE REVERSE ATTACHMENT CLUTCH ENGAGED ATTACHMENT CLUTCH DISENGAGED IGNITION DANGER, KEEP HANDS AND FEET AWAY OPERATION REVERSE FORWARD... - Page 10 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. THROTTLE/CHOKE CONTROL CLUTCH/BRAKE PEDAL GEARSHIFT LEVER...
-
Page 11: How To Use Your Tractor
The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend a wide vision safety mask over spectacles or standard safety glasses. -
Page 12: Before Starting The Engine
TO OPERATE MOWER (See Fig. 6) Your tractor is equipped with an operator presence sensing switch. Any attempt by the operator to leave the seat with the engine running and the attachment clutch engaged will shut off the engine. • Select desired height of cut. - Page 13 TO START ENGINE (See Fig. 5) When starting the engine for the first time or if the engine has run out of fuel, it will take extra cranking time to move fuel from the tank to the engine. • Sit on seat in operating position, depress clutch/brake pedal and set parking brake.
-
Page 14: Maintenance Schedule
CUSTOMER RESPONSIBILITIES MAINTENANCE SCHEDULE FILL IN DATES AS YOU COMPLETE REGULAR SERVICE Check Brake Operation Check Tire Pressure Check Operator Presence and Interlock Systems Check for Loose Fasteners Sharpen/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Adjust Blade Belt(s) Tension Adjust Motion Drive Belt(s) Tension... -
Page 15: Operator Presence System
CUSTOMER RESPONSIBILITIES TRACTOR Always observe safety rules when performing any mainte- nance. BRAKE OPERATION If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted. (See “TO ADJUST BRAKE” in the Service and Adjustments section of this manual). -
Page 16: Clean Air Screen
CUSTOMER RESPONSIBILITIES TO CLEAN BATTERY AND TERMINALS Corrosion and dirt on the battery and terminals can cause the battery to “leak” power. • Open battery box door. • Disconnect BLACK battery cable first then RED battery cable and remove battery from tractor. •... - Page 17 CUSTOMER RESPONSIBILITIES CLEANING • Clean engine, battery, seat, finish, etc. of all foreign matter. • Keep finished surfaces and wheels free of all gasoline, oil, etc. • Protect painted surfaces with automotive type wax. CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS: •...
-
Page 18: Service And Adjustments
SERVICE AND ADJUSTMENTS TO LEVEL MOWER HOUSING Adjust the mower while tractor is parked on level ground or driveway. Make sure tires are properly inflated (See “PROD- UCT SPECIFICATIONS” section of this manual). If tires are over or underinflated, you will not properly adjust your mower. - Page 19 SERVICE AND ADJUSTMENTS TO ADJUST BRAKE (See Fig. 19) Your tractor is equipped with an adjustable brake system which is mounted on the right side of the transaxle. If tractor requires more than six (6) feet stopping distance at high speed in highest gear on a level dry concrete or paved surface, then brake must be adjusted.
-
Page 20: Interlocks And Relays
SERVICE AND ADJUSTMENTS TO ATTACH JUMPER CABLES - • Connect each end of the RED cable to the POSITIVE (+) terminal of each battery, taking care not to short against chassis. • Connect one end of the BLACK cable to the NEGATIVE (-) terminal of fully charged battery. - Page 21 SERVICE AND ADJUSTMENTS TO REMOVE HOOD AND GRILL ASSEMBLY (See Fig. 25) • Raise hood. • Unsnap headlight wire connector. • Stand in front of tractor. Grasp hood at sides, tilt toward engine and lift off of tractor. • To replace, reverse above procedure. HOOD FIG.
-
Page 22: Storage
Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. CAUTION: Never store the tractor with gasoline in the tank inside a building where fumes may reach an open flame or spark. -
Page 23: Troubleshooting
TROUBLESHOOTING POINTS PROBLEM CAUSE Will not start Out of fuel. Engine not “CHOKED” properly. Engine flooded. Bad spark plug. Dirty air filter. Dirty fuel filter. Water in fuel. Loose or damaged wiring. Carburetor out of adjustment. Engine valves out of adjustment. Hard to start Dirty air filter. -
Page 24: Troubleshooting Points
TROUBLESHOOTING POINTS PROBLEM CAUSE Engine continues to run Faulty operator-safety presence control system. when operator leaves seat with attachment clutch engaged Poor cut - uneven Worn, bent or loose blade. Mower deck not level. Buildup of grass, leaves, and trash under mower. Bent blade mandrel. -
Page 25: Schematic
TRACTOR - - MODEL NUMBER WE13T38D SCHEMATIC AMMETER (OPTIONAL) WHITE IGNITION SWITCH BLUE IGNITION SWITCH POSITION CIRCUIT “MAKE” M+G+A1 NONE RUN/LIGHT B+A1 A2+L B+A1 NONE START B + S + A1 NONE BATTERY FUSE SOLENOID CLUTCH / BRAKE (PEDAL UP) WHITE BLACK BLACK... -
Page 26: Repair Parts
REPAIR PARTS TRACTOR - - MODEL NUMBER WE13T38D ELECTRICAL... - Page 27 REPAIR PARTS TRACTOR - - MODEL NUMBER WE13T38D ELECTRICAL PART DESCRIPTION 144925 Battery 12 Volt 25 Amp 74760412 Bolt Hex Hd 1/4-20unc X 3/4 156417 Case Battery Mech Hiinge 153664 Switch Interlock Push-In 166181 Harness Asm Light W/4152j 4152J Bulb Light #1156 108423X Cable Battery 146147...
- Page 28 REPAIR PARTS TRACTOR - - MODEL NUMBER WE13T38D CHASSIS...
- Page 29 REPAIR PARTS TRACTOR - - MODEL NUMBER WE13T38D CHASSIS NOTE: All component dimensions given in U.S. inches PART DESCRIPTION 169831 Chassis 176554 Drawbar, Stretch 17060612 Screw 3/8-16 x 3/4 155272 Bumper, Hood/Dash 155924X011 Saddle Silkscreen Flt Sdl 155138 Clip Retainer Slide-On 168347X011 Dash 72140608 Bolt, Carriage 3/8-16 x 1...
- Page 30 REPAIR PARTS TRACTOR - - MODEL NUMBER WE13T38D DRIVE...
- Page 31 REPAIR PARTS TRACTOR - - MODEL NUMBER WE13T38D DRIVE PART DESCRIPTION - - - - - - - Transaxle Peerless Model 205-544c (Order parts from transaxle manufacturer) 146682 Spring Return Brake 123666X Pulley Transaxle 18"tires 12000028 Ring Retainer # 5100-62 121520X Strap Torque 30 Degrees RH 17060512...
- Page 32 REPAIR PARTS TRACTOR - - MODEL NUMBER WE13T38D STEERING...
- Page 33 REPAIR PARTS TRACTOR - - MODEL NUMBER WE13T38D STEERING NOTE: All component dimensions given in U.S. inches PART DESCRIPTION 140044X428 Wheel Steering Ayp/P/L Blk 154427 Axle Asm 156483 Spindle Asm LH 157473 Spindle Asm RH 6266H Bearing Race Thrust Harden 121748X Washer 25/32 X 1-5/8 X 16 Ga 19272016...
- Page 34 REPAIR PARTS TRACTOR - - MODEL NUMBER WE13T38D ENGINE OPTIONAL EQUIPMENT Spark Arrester...
- Page 35 REPAIR PARTS TRACTOR - - MODEL NUMBER WE13T38D ENGINE PART DESCRIPTION 170864 Control Th/ch Flag 17720410 Screw Hex Thd Cut 1/4-20x5/8 T - - - - - - - - Engine, Tec. OHV135 (Order parts from engine manufacturer) 156700 Muffler Exhaust 165291 Gasket Eng 1 313 Id Tin Plated 148456...
- Page 36 REPAIR PARTS TRACTOR - - MODEL NUMBER WE13T38D SEAT PART DESCRIPTION 127426X Seat 140551 Bracket Seat Pivot 71110616 Bolt Hex 3/8 - 16 X 1 19131610 Washer 13/32 X 1 X10Ga. 145006 Clip Push-In Hinged 73800600 Nut Lock Hex w/Ins 3/8 - 16 124181X Spring Seat Cprsn 2 250 Blk Zi 17000616...
- Page 37 162391 Decal, Deck Grasseater 162392 Decal, Grille Weedeater WHEELS & TIRES 4,10 PART 164578 164579 145005 157163 136832 138311 178078 178079 PART 59192 65139 106222X 59904 106732X427 Rim assembly, 6"front 278H 9040H 106108X427 Rim assembly, 8" rear 124635X 7152J 104757X428 Cap, Hub Axle 144334 NOTE: All component dimensions given in U.S.
- Page 38 REPAIR PARTS TRACTOR - - MODEL NUMBER WE13T38D MOWER LIFT 17 18...
- Page 39 REPAIR PARTS TRACTOR - - MODEL NUMBER WE13T38D MOWER LIFT PART DESCRIPTION 159460 Wire Asm Inner/Sprg w/plunger 159471 Shaft Asm Lift RH 105767X Pin Groove 1 500 Zinc 12000002 E Ring #5133-62 19211621 Washer 21/32 X 1 X 21 Ga 120183X Bearing Nylon Blk 629 Id 109413X...
- Page 40 REPAIR PARTS TRACTOR - - MODEL NUMBER WE13T38D MOWER DECK 153 154...
- Page 41 REPAIR PARTS TRACTOR - - MODEL NUMBER WE13T38D MOWER DECK PART DESCRIPTION 170280 Mower Housing Assembly 72140506 Bolt Carriage 5/16-18 x 3/4 138017 Bracket Asm Fr. Sway Bar 169970 Bracket Deck Sway Bar 38"/42" 4939M Retainer Spring 130832 Arm, Suspension, Rear 850857 Bolt 3/8-24 x 1.25 Grade 8 10030600...
- Page 42 SERVICE NOTES...
- Page 43 SERVICE NOTES...
- Page 44 SERVICE NOTES...
-
Page 45: Warranty
The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materials and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due to materials or workmanship. -
Page 46: Warranty
P O L I C Y P O L I C Y P O L I C Y P O L I C Y P O L I C Y ® Issued January 1980 Revised January 1991 NEW PEERLESS GEAR POWER TRAIN COMPONENTS Peerless Gear and Machine Division of Tecumseh Products Company (“Tecumseh”), subject to the limitations contained below, will, at its option, repair or replace, without charge for parts or labor only, any part of a new Power Train Component (which as used herein means and includes the transaxle, gear box, transmission, differential and right angle... - Page 47 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION SIGHTING GUIDE Operate your Tractor up and down the face of slopes (not greater than 15°), never across the face. Make turns gradu- ally to prevent tipping or loss of control. Exercise extreme caution when changing direction on slopes.
