Dremel DIGILAB Quick Start Manual

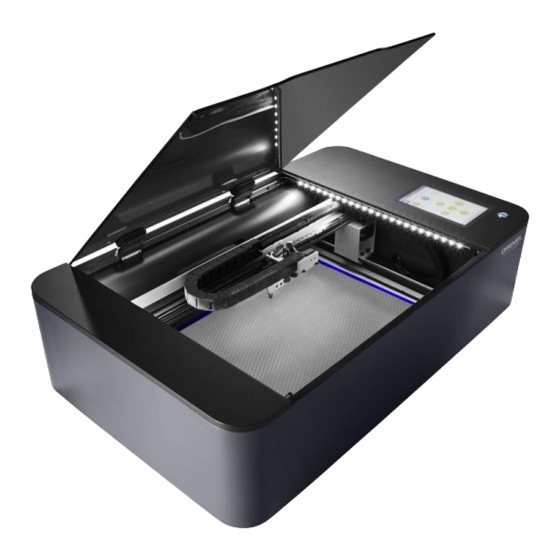

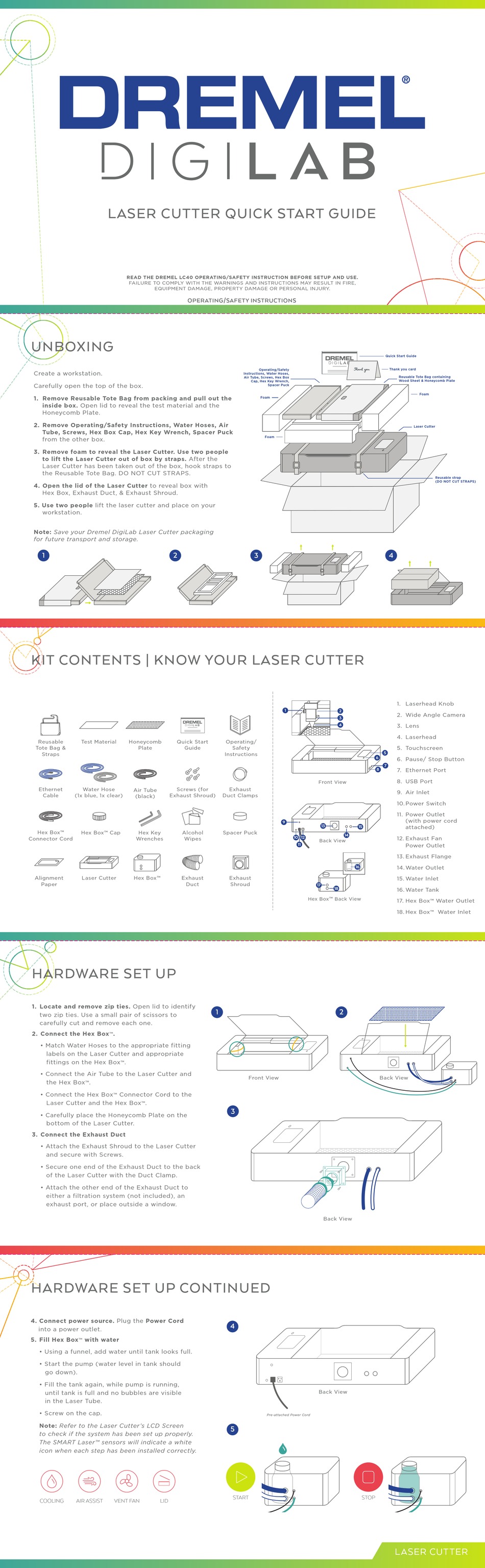

LASER CUTTER QUICK START GUIDE
UNBOXING
Create a workstation.
Carefully open the top of the box.
1. Remove Reusable Tote Bag from packing and pull out the
inside box. Open lid to reveal the test material and the
Honeycomb Plate.
2. Remove Operating/Safety Instructions, Water Hoses, Air
Tube, Screws, Hex Box Cap, Hex Key Wrench, Spacer Puck
from the other box.
3. Remove foam to reveal the Laser Cutter. Use two people
to lift the Laser Cutter out of box by straps. After the
Laser Cutter has been taken out of the box, hook straps to
the Reusable Tote Bag. DO NOT CUT STRAPS.
4. Open the lid of the Laser Cutter to reveal box with
Hex Box, Exhaust Duct, & Exhaust Shroud.
5. Use two people lift the laser cutter and place on your
workstation.
Note: Save your Dremel DigiLab Laser Cutter packaging
for future transport and storage.
1
KIT CONTENTS | KNOW YOUR LASER CUTTER
Reusable Test Material
Tote Bag &
Straps
Ethernet Water Hose
Cable (1x blue, 1x clear)
Hex Box™ Hex Box™ Cap
Connector Cord
Alignment Laser Cutter
Paper
HARDWARE SET UP
1. Locate and remove zip ties. Open lid to identify
two zip ties. Use a small pair of scissors to
carefully cut and remove each one.
2. Connect the Hex Box .
™
• Match Water Hoses to the appropriate fitting
labels on the Laser Cutter and appropriate
fittings on the Hex Box
• Connect the Air Tube to the Laser Cutter and
the Hex Box .
™
• Connect the Hex Box Connector Cord to the
™
Laser Cutter and the Hex Box
• Carefully place the Honeycomb Plate on the
bottom of the Laser Cutter.
3. Connect the Exhaust Duct
• Attach the Exhaust Shroud to the Laser Cutter
and secure with Screws.
• Secure one end of the Exhaust Duct to the back
of the Laser Cutter with the Duct Clamp.
• Attach the other end of the Exhaust Duct to
either a filtration system (not included), an
exhaust port, or place outside a window.
HARDWARE SET UP CONTINUED
4. Connect power source. Plug the Power Cord
into a power outlet.
5. Fill Hex Box with water
™
• Using a funnel, add water until tank looks full.
• Start the pump (water level in tank should
go down).
• Fill the tank again, while pump is running,
until tank is full and no bubbles are visible
in the Laser Tube.
• Screw on the cap.
Note: Refer to the Laser Cutter's LCD Screen
to check if the system has been set up properly.
The SMART Laser™ sensors will indicate a white
icon when each step has been installed correctly.
COOLING AIR ASSIST VENT FAN
READ THE DREMEL LC40 OPERATING/SAFETY INSTRUCTION BEFORE SETUP AND USE.
FAILURE TO COMPLY WITH THE WARNINGS AND INSTRUCTIONS MAY RESULT IN FIRE,
EQUIPMENT DAMAGE, PROPERTY DAMAGE OR PERSONAL INJURY.
OPERATING SAFETY INSTRUCTIONS
2
Honeycomb Quick Start
Plate Guide
Screws (for
Air Tube
Exhaust Shroud)
(black)
Hex Key Alcohol
Wrenches Wipes
Hex Box™ Exhaust
Duct
.
™
.
™
LID
Operating/Safety
Instructions, Water Hoses,
Air Tube, Screws, Hex Box
Cap, Hex Key Wrench,
Spacer Puck
Foam
Foam
3
1
Operating/
Safety
Instructions
Exhaust
Duct Clamps
9
Spacer Puck
10 12
11
Exhaust
Shroud
1
Front View
3
4
Pre-attached Power Cord
5
START
Quick Start Guide
Tha k you
Thank you card
Reusable Tote Bag containing
Wood Sheet & Honeycomb Plate
4
1. Laserhead Knob
2
2. Wide Angle Camera
3
4
3. Lens
4. Laserhead
5. Touchscreen
5
6
6. Pause/ Stop Button
7
8
7. Ethernet Port
8. USB Port
Front View
9. Air Inlet
10. Power Switch
11. Power Outlet
13
15
14
12. Exhaust Fan
Back View
13. Exhaust Flange
16
14. Water Outlet
15. Water Inlet
17
18
16. Water Tank
™
Hex Box Back View
17. Hex Box
18. Hex Box
2
Back View
Back View
Back View
STOP
LASER CUTTER
Foam
Laser Cutter
Reusable strap
(DO NOT CUT STRAPS)
(with power cord
attached)
Power Outlet
Water Outlet
™
Water Inlet
™
