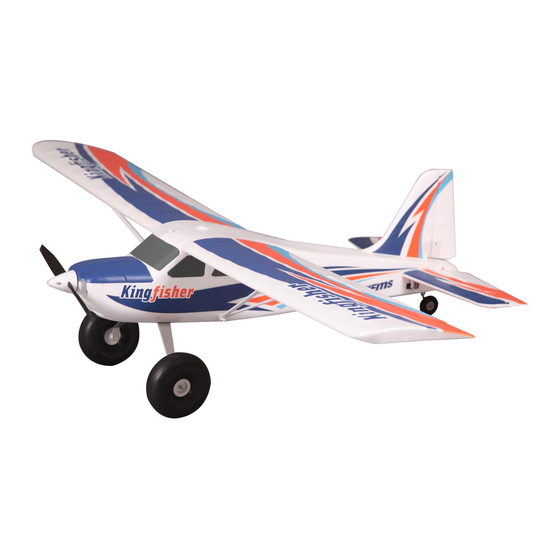

- Page 1 1400mm Kingfisher Instruction Manual Bedienungsanleitung Manuel d’utilisation 操作手册 FMSMODEL.COM MULTIPURPOSE RIGID STABLE Three Sets of Landing Gear STRONG DURABLE EPO SMOOTH FLYING PERFORMANCE...
- Page 2 WARNING WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product,personal property and cause serious injury. This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and failure to do so could result in injury or damage to the product or other property.
-
Page 3: Table Of Contents
Introduction Table of contents Following the successful debut of Super EZ V2, FMS is thrilled Introduction ····························································· to announce the release of a brand new multi-role trainer --- The Kit contents ······ ························································· FMS 1400mm Kingfisher! Model assembly ·······················································4 With simple assembly, ease of control and stability in Battery installation ···················································... -
Page 4: Model Assembly
Model assembly Landing gear set installation HKM3*10 1.With the fuselage inverted, carefully install the landing gear set to the fuselage with the included landing gear insert and screws as shown. Main wing installation 1.Slide the tube into the fuselage. 2.Guide the aileron servo lead and flap servo lead through the hole. Install both wings over the wing tube and into the wing slot of the fuselage. - Page 5 Model assembly Supporting bar installation 1.Lock the supporting bar and secure it with R clip as shown. Horizontal stabilizer 1.Slide the horizontal stabilizer in the rear of the fuselage. Ensure the control horn faces down as shown.Secure the horizontal stabilizer using bolt-type lock. Note: Toggle the bolt-type lock from top to bottom.
- Page 6 Model assembly Tips：Push the landing gear strut up, then towards to tail of the aircraft and then up again until it fits snugly into the plastic compo- nent on.Secure the tail wheel set in place using the included screws and control horn. HKM3*10 3.Install the linkage rods as shown.
- Page 7 Model assembly Float set installation M 3*4 1.Assemble the float struts to the plastic holder as shown and secure the struts with screws. 2.Secure the float set onto the bottom of the fuselage using the included plastic parts and screws as shown. HKM3*10 HKM3*10 fig15...
- Page 8 Model assembly 3. Secure the float rudder in place using the included screws. Note:Please refer to tail wheel installation. Ski Installation 1.Remove the wheels . 2.Secure the skis in place with springs and screws (HKM3*20) as shown. FPV mount 1.Remove the battery cover. 2.Assemble your FPV equipment on the reserved FPV base using hook tape or cable.
-
Page 9: Battery Installation
Model assembly Tow release mechanism 1.Lead the towing cable through the main wing tube as shown for towing banners and gliders. Propeller installation 1.Assemble the spinner and propeller as shown below. Battery installation 1. Apply hook tape to the cable end of the battery. 2. -
Page 10: Receiver Wiring Diagram
Receiver wiring diagram The cables from the servo connector board should be connected to your receiver in the order shown. Note that the rudder channel controls both the steering servo and the rudder surface. The LEDs can be powered by any spare channel on the receiver. - Page 11 Transmitter and model setup Before getting started, bind your receiver with your transmitter. Bank Left Please refer to your Transmitter Manual for proper operation. CAUTION: To prevent personal injury, DO NOT arm the ESC and do not turn on the transmitter until the Transmitter Manual instructs you to do so.
-
Page 12: Get Your Model Ready To Fly
Clevis installation 1.Pull the tube from the clevis to the linkage. 2.Carefully spread the clevis, then insert the clevis pin into the desired hole in the control horn. 3.Move the tube to hold the clevis on the control horn. Control horn and servo arm settings More control throw Horns Arms... -
Page 13: Before Flying The Model
Before flying the model Flying course Find a suitable flying site Take off While applying power, slowly steer to keep the model straight. Find a flying site clear of buildings, trees, power lines and The model should accelerate quickly. As the model gains flight other obstructions. -
Page 14: Troubleshooting
Trouble shooting Problem Possible Cause Solution Aircraft will not respond to -Lower throttle stick and throttle trim to lowest settings. -ESC is not armed. the throttlebut responds to -Reverse throttle channel on transmitter. -Throttle channel is reversed. other controls. -Damaged spinner,propeller, -Replace damaged parts.
