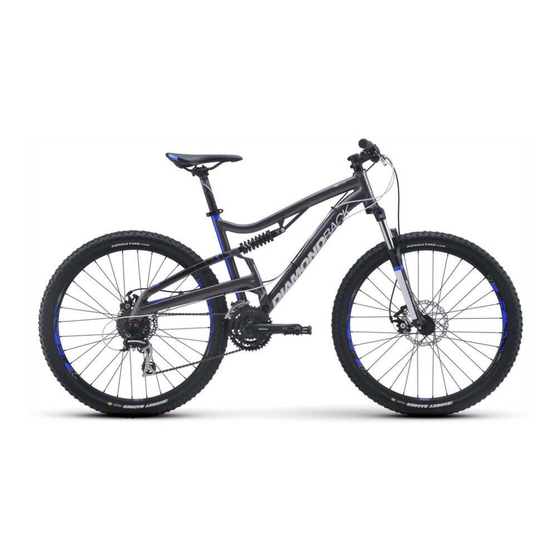

RECOIL
UNPACKING AND ASSEMBLING YOUR DIAMONDBACK MOUNTAIN BIKE {MECHANICAL
DISC BRAKES)
Begin by carefully opening the box. Be aware of the sharp staples that may have been
used to secure the box and be mindful not to cut yourself on them.
1
For assembly you will need: cutters/scissors; #2 Philips head screwdriver; a 4,5,6mm
allen keys; and a T-25 Torx wrench.
If, for any reason, you do not have the proper tools or are not confident to safely
assemble the bike yourself, it is recommended that you take your bike to a local bike
shop for assistance or to have them assemble it. We recommend taking all bikes in for
a safety check before riding. They may charge you a fee to do any of these services.
Advertisement
Related Manuals for Diamondback RECOIL
Summary of Contents for Diamondback RECOIL
- Page 1 RECOIL UNPACKING AND ASSEMBLING YOUR DIAMONDBACK MOUNTAIN BIKE {MECHANICAL DISC BRAKES) Begin by carefully opening the box. Be aware of the sharp staples that may have been used to secure the box and be mindful not to cut yourself on them.
- Page 2 Any damage caused by improper assembly is not considered a manufacturer defect and will not be covered under warranty. Once you have the bike box opened: Remove the saddle and seatpost. B. Remove the small parts box. C. Remove the bike. Before proceeding, make sure that all parts and material are now removed from the box.
- Page 17 Make sure to register your bike by simply filling out form found in the back of your owner's manual and mail it in, OR you can register your bike online at Diamondback's webpage: here for Diamondback (http://www.diamondback.com/register-your-bike)
