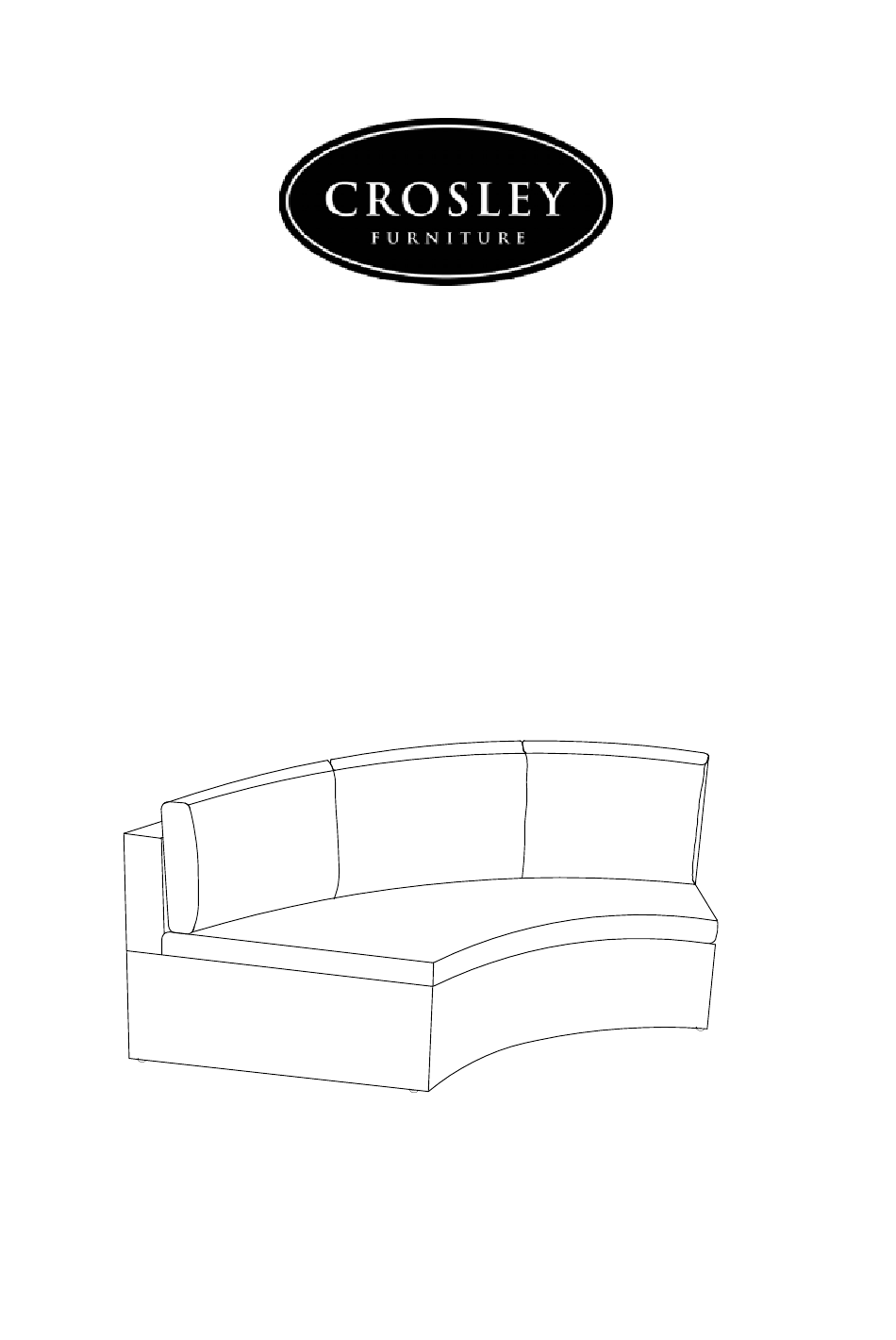

- Page 1 Catalina Outdoor Wicker Round Sectional Sofa CO7120-BR 1 of 6...
-
Page 3: Part List
PART LIST Left Seat Right Seat Cover Of Seat Cushion Back Cushion Inner of Seat Cushion 3PCS 2PCS HARDWARE LIST Bolt(M6*60mm) Washer(M6mm) 3PCS 6PCS Allen Key(M6mm) Nut(M6mm) Wrench(M6mm) 3PCS EXTRA HARDWARE LIST H X1PC X2PCS X1PC 3 of 6... - Page 4 Step 1. Attach Right Seat (B) to Left Seat (A) using the Bolts(F), Nuts(H), Washers(G),Wrench(J) & Allen Key (I). NOTE: Thread down but do not tighten bolts until unit is fully assembled. X6PCS X3PCS X3PCS Step 2. Insert Inner Of Seat Cushion (D) into Cover Of Seat Cushion (C). 4 of 6...
- Page 5 Step 3. Place Seat Cushion and Back Cushion on the sofa. 5 of 6...
- Page 6 In accordance with the "Moss-Magnuson Warranty Act" of july 10, 1975, this is termed a "limited warranty" which in no way compromises Crosley Furniture's high standards of Quality and Workmanship. 6 of 6...
