VIESMANN
Installation and service
instructions
for contractors

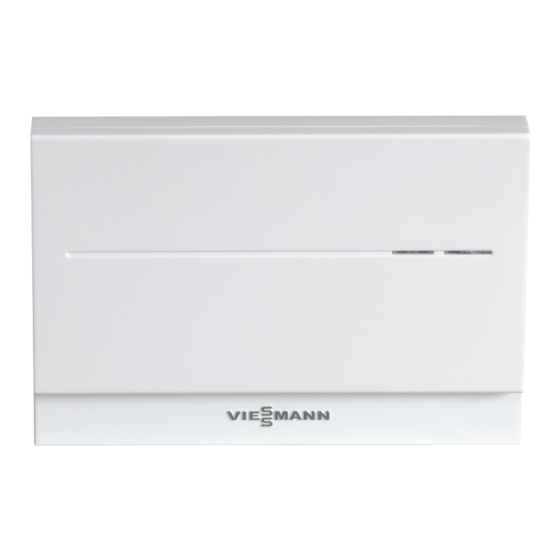

Vitocom 100
Type LAN1
Communication interface for remote monitoring and control of heat-
ing systems via the internet, for the following user interfaces:
■ Vitotrol app
■ Vitodata 100 (www.vitodata100.com)
For applicability, see the last page
VITOCOM 100
Please keep safe.
5619 832 GB
03/2012
Advertisement
Table of Contents
Related Manuals for Viessmann Vitocom 100 LAN1
Summary of Contents for Viessmann Vitocom 100 LAN1
- Page 1 VIESMANN Installation and service instructions for contractors Vitocom 100 Type LAN1 Communication interface for remote monitoring and control of heat- ing systems via the internet, for the following user interfaces: ■ Vitotrol app ■ Vitodata 100 (www.vitodata100.com) For applicability, see the last page VITOCOM 100 Please keep safe.
- Page 2 Safety instructions Safety instructions Please follow these safety instructions closely to prevent accidents and mate- rial losses. Safety instructions explained ■ all current safety regulations as defined by DIN, EN, DVGW, TRGI, Danger TRF, VDE and all locally applicable This symbol warns against the standards, risk of injury.
- Page 3 ■ When using gas as fuel, also close the For replacements, use only orig- main gas shut-off valve and safeguard inal spare parts from Viessmann against unauthorised reopening. or those which are approved by ■ Isolate the system from the power sup- Viessmann.
-
Page 4: Table Of Contents
Index Index Installation instructions Operational reliability and liability Operational reliability.................... Liability......................... Preparing for installation System requirements................... Operation with the Vitotrol app................Operation with Vitodata 100 user interface............10 Checking network settings................... 11 Installation sequence Sequence overview....................12 Installing wall mounting bracket................12 Removing cover.................... - Page 5 Index Index (cont.) Specification....................... 30 Certificates Declaration of conformity..................31 Keyword index....................32...
-
Page 6: Operational Reliability And Liability
■ The Vitocom 100 is connected to the internet via a DSL router. Liability Viessmann accepts no liability for loss of Viessmann accepts no liability for SMS profit, unattained savings, or other direct or email services, which are provided by or indirect consequential losses resulting network operators. -
Page 7: Preparing For Installation
Preparing for installation System requirements Heating system ■ The Vitocom 100, type LAN1 can be used for one single boiler system with Vitotronic control unit, with or without heating circuits downstream. ■ The max. number of devices (LON subscribers) comprising boiler and heating circuit control units is 30. -
Page 8: Operation With The Vitotrol App
Mozilla Firefox, Version 3.0 ■ 'Live' internet connection Operation with the Vitotrol app For remote control of Viessmann heating systems with Vitotronic control units via IP networks. A Heat source with control unit (see G Vitodata server page 7) - Page 9 Heat source installation and serv- ■ For further information on the Vitotrol ice instructions app, see www.viessmann.de/vitotrol- app. Forwarding messages Pending messages in the heating sys- tem, e.g. sensor or burner faults are transferred via LON to the Vitocom 100.
-
Page 10: Operation With Vitodata 100 User Interface
Preparing for installation Operation with Vitodata 100 user interface For remote monitoring and control of Viessmann heating systems with Vitotronic control units via IP networks. A Heat source with control unit (see K Fax for receiving messages (only page 7) with internet service "Vitodata 100... -
Page 11: Checking Network Settings
Preparing for installation Operation with Vitodata 100 user interface (cont.) Forwarding messages Content of messages ■ Date and time Pending messages in the heating sys- ■ System description tem, e.g. sensor or burner faults, are ■ Message text transferred via LON to the Vitocom 100. ■... -
Page 12: Installation Sequence
Installation sequence Sequence overview Sequence Responsibility Page Installation Check system requirements. Heating contractor/IT expert Fit wall mounting bracket. Heating contractor Install communication module in Heating contractor See communica- Vitotronic control unit. tion module in- stallation instruc- Connect Vitocom 100 to the Heating contractor tions Vitotronic control unit. - Page 13 Installation sequence Installing wall mounting bracket (cont.) Connecting cables Length LAN connecting cable (may be extended on site by IT expert) LON connecting cable, red (may be extended with ac- cessory, see communica- tion module installation in- structions) Connecting cable for plug-in Approx.
-
Page 14: Removing Cover
Installation sequence Removing cover Refit in reverse order. Overview of connections § aÖ ! Plug-in power supply unit connec- § Service interface: Do not make any tion, 5 V–, internal +, external –, min. on-site connections. 1.6 A (see page 21) -
Page 15: Installing Communication Module In The Vitotronic Control Unit
Installation sequence Overview of connections (cont.) $ RJ 45 connector for LON connection aÖ RJ 45 connector for LON connection cable to DSL router (see page 17 cable (red) to the Vitotronic control and "Explanation of displays" see unit (see communication module page 20) installation instructions) ) LON terminator, is enabled in the... -
Page 16: Connecting To Vitodens 3
Installation sequence Connecting to Vitodens 3..., type B3 Vitodens 300-W, type B3HA 1. Route cable with RJ 45 LON coupling 2. Connect LON connecting cable to the A downwards out of the control unit LON coupling of the Vitodens and to the LON connection aÖ... -
Page 17: Connecting To Network (Lan)
Installation sequence Connecting to Vitodens 3..., type B3 (cont.) Connect LON connecting cable to the LON coupling of the Vitodens and to the LON connection aÖ of the Vitocom 100. Connecting to network (LAN) 1. Plug LAN connecting cable into LAN 2. -
Page 18: Inserting Vitocom 100 In Wall Mounting Bracket
Installation sequence Inserting Vitocom 100 in wall mounting bracket Power supply See chapter "Switching on the Vitocom 100" on page 21. -
Page 19: Commissioning
Commissioning Display and control elements Without cover Remove cover, see page 14. Type plate "2" No function "3" IP connection status (green and "T1" Maintenance button (see yellow LED) page 26) "4" Operating status display (green "T2" No function "T3" LON key, only when integrating and red LED) the Vitocom 100 into a BMS (send "5"... - Page 20 Commissioning Display and control elements (cont.) With cover "T1" Maintenance button (see page 26) "3" IP connection status (green and yellow LED) "4" Operating status display (green and red LED) Explanation of displays LON service indicator "1" Flashes green LON subscriber check successful (see page 22). IP State of connection "3"...
-
Page 21: Switching On The Vitocom 100
Commissioning Display and control elements (cont.) Flashes green The Vitocom 100 will initialise after the power supply unit is plugged in or the reset button is pressed. Flashes green Software update is being installed. The device must not be quickly isolated from the mains. -
Page 22: Checking The Lon Connection To The Vitotronic Control Unit
Commissioning Switching on the Vitocom 100 (cont.) 3. Connect with the Vitotronic con- Initialisation not successful trol unit via LON The Vitocom 100 creates a list of all If a fault occurs during initialisation, this LON subscribers. is indicated by the associated LED indi- cators. -
Page 23: Registering User And Setting Up Heating System
Commissioning Checking the LON connection to the Vitotronic… (cont.) Updating LON subscriber list In the following cases, the LON sub- To update the LON subscriber list, hold scriber list in the Vitocom 100 must be down reset button "T4" (see page 19) for updated: approx. - Page 24 Commissioning Registering user and setting up heating system (cont.) 5. In the Vitotrol app, press "Log in" Vitotrol app online help and log in with the following access details: Note User name: Email address It is also possible to register via the specified Vitodata 100 user interface, using the Password:...
-
Page 25: Function Test
Commissioning Registering user and setting up heating system (cont.) 2. Select "Create a new system", Vitodata 100 online help select system type "Vitocom 100, type LAN1" and enter "Connection data". Note The manufacturer's details can be found on the Vitocom 100 type plate (see page 19). -
Page 26: Service Functions
Service functions Enabling maintenance With this function, the transfer of mes- 2. Briefly press the maintenance button sages from the heating system to the again once the maintenance work Vitodata server is suppressed, e.g. for has been carried out (approx. 1 s). maintenance work. -
Page 27: Troubleshooting
Troubleshooting Troubleshooting measures Faults on the Vitocom 100 are indicated by various LED indicators (see page 19). Faults with LED indicator Type of fault and measures IP connection status"3" Flashes yellow slowly IP address could not be obtained. ■ Check LAN connecting cable. ■... -
Page 28: Parts Lists
Parts lists Ordering parts The following information is required: Standard parts are available from your ■ Serial no. (see Vitocom 100 type plate local supplier. ■ Position number of the required part (from this parts list) Parts 0001 Vitocom 100 0002 Casing 0003 LON communication module 0004 LAN connecting cable... - Page 29 Parts lists Parts (cont.) 0001 0002 0003 0004 0005 0006 A Vitocom 100 type plate (under the cover)
- Page 30 Specification Specification Vitocom 100, type LAN1 Operating voltage 5 V– Rated current 1.6 A Power consumption Protection class Protection IP 30 to EN 60 529 Permiss. ambient temperature ■ during operation 0 to +55 °C Installation in living spaces and boiler rooms (standard ambient conditions) −20 to +85 °C ■...
- Page 31 Certificates Declaration of conformity We, Viessmann Werke GmbH & Co KG, D-35107 Allendorf, declare as sole respon- sible body that the product Vitocom 100, type LAN1 complies with the following standards: EN 50090-2-2 EN 55024 EN 55011 EN 60335-1 EN 55014-1...
- Page 32 Keyword index Keyword index Access details........24 Fault Activation link.......23, 24 ■ Heating system.......20 Ambient temperature....12, 30 ■ On the Vitocom 100......20 Fault indicator......26, 27 Fault manager........22 Browser..........8 Fault message........26 Fax.............10 Fax reception........8 Cascade control unit......7 Forwarding messages....9, 11 Check connection......12 Frost protection........6 Checking connection via LON....22 Functions...
- Page 33 Keyword index Keyword index (cont.) Operating software......21 LAN connecting cable....13, 17, 28 Operating status display..19, 20, 26 LAN connection......15, 17 Operating system......7, 8 Liability..........6 Operating voltage.......30 Operation ■ Checking the connection....22 ■ With the Vitotrol app......8 ■ Making the connection....22 ■...
- Page 34 Keyword index Keyword index (cont.) Remote control.......8, 10 Remote monitoring......8, 10 Tablet PC..........8 Reporting system, checking of...12 Terms and Conditions......6 Requirements........6 Troubleshooting.........27 Reset..........26 Type plate..........19 Reset button......19, 23, 26 User, registering.........12 Safety category........30 User, registration........24 Safety parameters........7 User account........7 Scan operating condition....10 User interface........6 Secure connection......8, 10 User name...
- Page 36 Applicability Serial No.: 7501472 7494755 Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040 E-mail: info-uk@viessmann.com...
