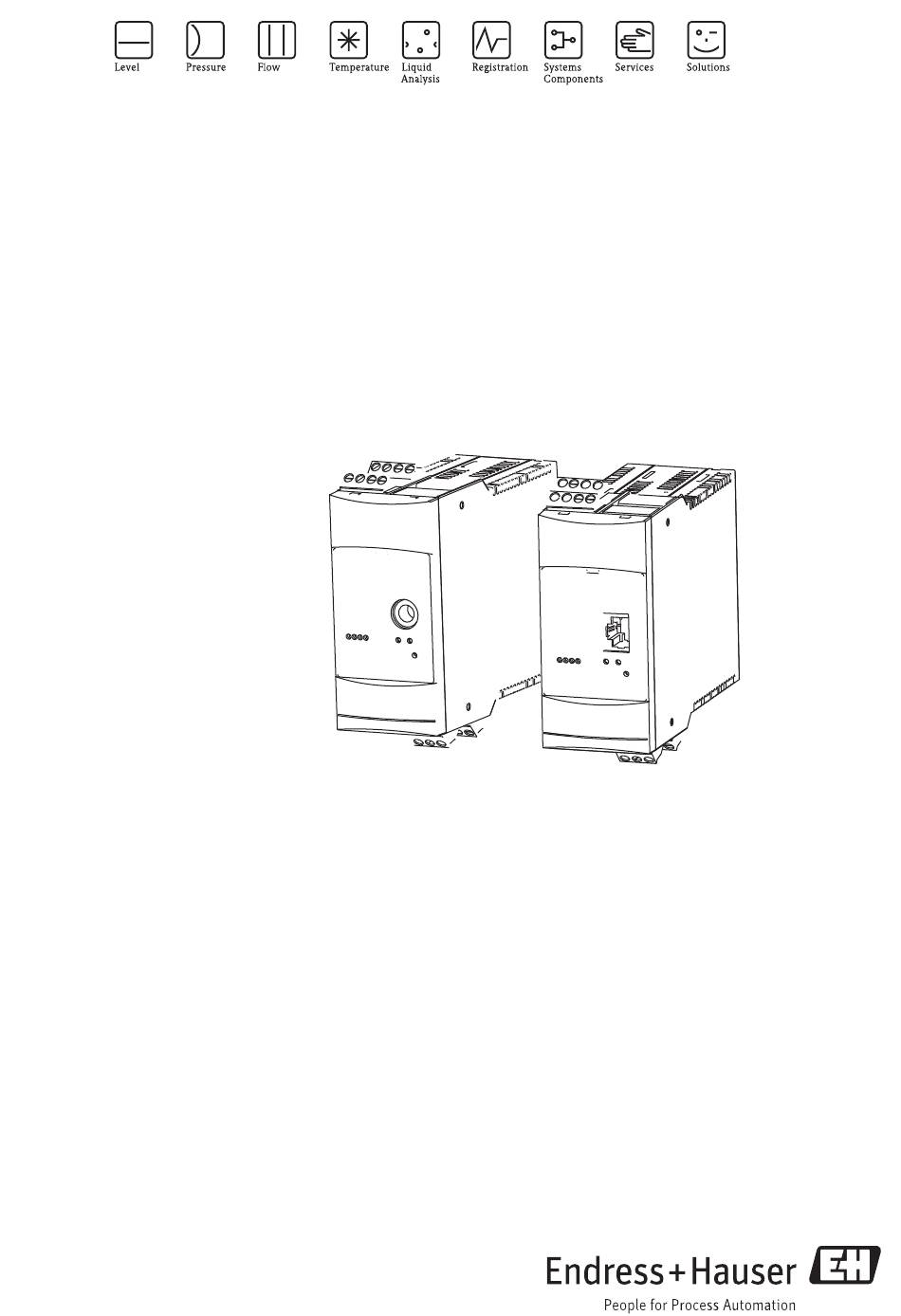

Operating Instructions
Fieldgate FXA320
Ethernet, Modem and GSM gateway for 4 – 20 mA analog
and binary devices
BA00053S/00/EN/16.15
Version 1.07.xx
71282724

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Fieldgate FXA320

Summary of Contents for Endress+Hauser Fieldgate FXA320

  • Page 1 Operating Instructions Fieldgate FXA320 Ethernet, Modem and GSM gateway for 4 – 20 mA analog and binary devices BA00053S/00/EN/16.15 Version 1.07.xx 71282724...
  • Page 2 Fieldgate FXA320 Order code 00X00-XXXX0XX0XXX Ser. No.: X000X000000 TAG No.: XXX000 Serial number www.endress.com/deviceviewer Endress+Hauser Operations App Endress+Hauser...

  • Page 3: Table Of Contents

    5.2.1 Communication parameters ... . 37 2.4.2 Endress+Hauser Operations App ..11 5.2.2 Set up the Fieldgate via service interface . . . 38 5.2.3...
  • Page 4 Logging on ......71 10.1 Fieldgate FXA320 ......94 Overview .

  • Page 5: Revision Index

    Fieldgate FXA320 Revision Index Product Manual Changes Remarks version 1.00.xx BA282F/00/en/ Original 1.01.xx BA282F/00/en/ Unknown No Revision Index 1.02.xx BA282F/00/en/08.05 Unknown No Revision Index 1.03.xx Bug fixes Customer-specific software update 1.04.xx Bug fixes Customer-specific software update 1.05.xx BA053S/04/en/09.08 Restructuring of manual Manual not released due to pending Version 1.06.xx...
  • Page 6 Fieldgate FXA320 Endress+Hauser...

  • Page 7: Safety

    Repair Do not open the housing of the Fieldgate FXA320. It does not contain any parts that need to be maintained or repaired by the user. In the event of a fault or defect, return the unit to the vendor.

  • Page 8: Declaration Of Conformity

    Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Endress+Hauser may void the user's authority to operate the equipment. FCC Statement FCC-ID: LCG-FG-FXA52X-32X This device complies with Part 15 of the FCC rules.

  • Page 9: Writing Conventions

    1 Safety Fieldgate FXA320 Writing conventions The following writing conventions and symbols have been used to provide the user with a better overview of the contents of this manual and to highlight important information: Text emphasis The following table provides you with a brief overview of the methods used to emphasise text in this manual.

  • Page 10: Drawing Conventions

    Fieldgate FXA320 1 Safety Drawing conventions The following symbols may be found within technical drawings. Explosion protection Icon Meaning Device certified for use in explosion hazardous area If the device has this symbol embossed on its name plate it can be installed in an explosion hazardous area...

  • Page 11: Identification

    2 Identification Fieldgate FXA320 Identification Device designation The device designation is to be found on the nameplate affixed to the lefthand side of the module. Order code FIELDGATE FXA320- CSA mark Power (depends on version) requirement Relay Contact rating L1 N...

  • Page 12: Scope Of Delivery

    • PC cable (service connector) Licensing agreement No license is required for the use of the Web server embedded in the Fieldgate FXA320. The software required for start-up and commissioning, i.e. the Internet browser, is either freely available or is subject to the licensing conditions of its manufacturer. Installation of this software on your computer implies that you accept the terms of the corresponding licensing agreement.

  • Page 13: Endress+Hauser Operations App

    Fieldgate FXA320 2.4.2 Endress+Hauser Operations App NOTE! • The Endress+Hauser Operations App is available both for android smart phones (Google Play Store) and for iPhones and iPads (App Store). Via the serial number: 1 Launch the Endress+Hauser Operations App. 2 Enter the serial number (Ser. no.) of the device: see nameplate.

  • Page 14: Function And System Design

    Function and System Design Function Fieldgate FXA320 is designed for inventory control applications. It possess two 4...20 mA input circuits which can be switched to be passive (connected device has own power supply) or active (Fieldgate powers the connected device). An additional four binary inputs for switches or counter applications are available as an option.

  • Page 15: Communication Interface

    3 Function and System Design Fieldgate FXA320 Communication interface Fieldgate is equipped with an Ethernet 10BaseT interface, an analog modem or a GSM modem. 3.2.1 Ethernet 10BaseT Fieldgate with 10BaseT Ethernet interface is connected to the local network via a hub or switch using a standard cable with RJ45 plug connector.

  • Page 16: Mobile Communications Network (Gsm)

    Fieldgate FXA320 3 Function and System Design 3.2.3 Mobile communications network (GSM) The GSM modem allows data to be transferred via a mobile communications network. It can be configured as point-to-point connections or as freely accessible via the Internet/Intranet. A SIM card from a mobile communications network operator is required for GSM operation.

  • Page 17: Signal Channels

    3 Function and System Design Fieldgate FXA320 Signal channels Fieldgate FXA320 has two analog input channels, optionally four binary input channels and a relay output channel. More details are to be found in Chapter 3.5, System Architecture and Chapter 4, Installation.

  • Page 18: Operability

    Fieldgate FXA320 3 Function and System Design Operability Fig. 3.5 shows a the display elements of the Fieldgate FXA320 together with other operating elements that are located behind the front panel. CH 1 CH 2 1 2 3 Fig. 3-6: Front panel of the Fieldgate FXA320 3.4.1...

  • Page 19: System Architecture

    3.5.1 Analog input 4...20 mA Two 4–20 mA devices can be connected to the standard version of Fieldgate FXA320. With the appropriate transmitter supply module, the devices may also be located in hazardous areas. The devices cannot be parametrized, but the outputs can be scaled and linearized in the Fieldgate Web server.

  • Page 20: System Requirements

    Fieldgate FXA320 3 Function and System Design System requirements 3.6.1 Use with web browser Web browser Service Pack / extensions MS Internet Explorer > 5.0 with current security updates Netscape Navigator > 4.7 with current security updates Opera > 6.0 with current security updates ≥...

  • Page 21: Hardware Installation

    108 mm EN 60715; HT 35 x 15 (4.25 in) Fig. 4-1: Dimensions of Fieldgate FXA320 GSM version For the GSM version, it is also important that there is good reception from the mobile communication network at the location at which the unit is mounted. It may be necessary to install a stronger aerial if reception is weak.

  • Page 22: Accessing The Dat Module/Sim Card

    Fieldgate FXA320 4 Hardware Installation 4.1.3 Accessing the DAT module/SIM card/service interface The DAT module, SIM card receptacle for GSM devices and service interface are located behind the front panel. You require a screwdriver with a normal blade. NOTE! • Switch off the Fieldgate before inserting or removing the DAT module •...

  • Page 23: Wiring

    4 Hardware Installation Fieldgate FXA320 Wiring 4.2.1 Terminals Table 4-1 provides an overview of the Fieldgate terminals. Location Function Remarks Power L+/L1 Depending on device type, see nameplate on side: • 20...60 VDC, 20...30 VAC Power L–/N • 85...253 VAC, 50/60 Hz •...

  • Page 24: Externally Powered 4

    Fieldgate FXA320 4 Hardware Installation 4.2.3 Externally powered 4...20 mA device Make sure that the switch setting and connections are as shown in Fig. 4-6. Switch setting Sensor 2 (located behind CH 1 front panel) passive Fieldgate FXA 320 CH 2 Sensor 1 –...

  • Page 25: Switching Device (Binary Input)

    4 Hardware Installation Fieldgate FXA320 4.2.5 Switching device (binary input) The binary inputs of Fieldgate are optional. Up to four switching devices can be connected as shown in Fig. 4-8. Limiting values for the input signals (DC PNP) are: • Low signal ("0") = –3 VDC to +5 VDC •...

  • Page 26: Network Connection

    4.3.3 Fieldgate GSM Fieldgate requires an GSM external antenna, which can be purchased from Endress+Hauser as an accessory. The antenna cable plugs into the socket on the front of Fieldgate and must be mounted outside of any control cabinet or field housing. In areas of poor GSM reception, it is advisable to first test the communication before permanently fixing the antenna.

  • Page 27: Commissioning

    5 Commissioning Fieldgate FXA320 Commissioning This chapter describes, using the example of Windows XP, the commissioning of the Fieldgate. The commissioning with other Windows operating systems differs only in detail, but if you are not sure how to proceed, we recommend that you consult your network administrator.

  • Page 28: Establishing Communication Via Service Interface

    Fieldgate FXA320 5 Commissioning Establishing communication via service interface In order to establish communication with the Fieldgate via the service interface, a standard 9600 bit/s modem and a RTU (remote terminal unit) connection must be set up on your computer.
  • Page 29 5 Commissioning Fieldgate FXA320 3 Select the Modem tag in the Telephone and Modem Options dialog: – If the Standard 9600 bps Modem is in the list, go to Chapter 5.1.3 – Otherwise press Add, see below 4 The Install New Modem wizard starts: –...

  • Page 30: Check The Modem Properties

    Fieldgate FXA320 5 Commissioning 6 Select the COM port where you want to set up the modem and press Next to continue: 7 When the modem has been successfully installed, press Finish to close the wizard: 8 The Standard 9600 bps Modem is now in the modem list.
  • Page 31 5 Commissioning Fieldgate FXA320 2 In the Properties dialog, select the Advanced tab: 3 Press the Change Default Preferences button: – Set the Flow Control parameter to None 4 Select the Advanced tab: – Check that Data bits = 8, Parity = None and Stops bits = 1 –...

  • Page 32: Set Up The Dial Up Connection

    Fieldgate FXA320 5 Commissioning 5.1.4 Set up the dial up connection Now set up the dial up connection 1 Select Start > Settings > Control Panel> Network Connections: 2 The Network Connection dialog opens: – Double-click on New Connection Wizard...
  • Page 33 5 Commissioning Fieldgate FXA320 5 Select the option Set up my connection manually, press Next to continue 6 Select the option Connect using a dial-up modem, press Next to continue 7 If a more than one modem is available on the computer, you will be asked to select the one to be used for the connection from the Select a Device dialog: –...
  • Page 34 Fieldgate FXA320 5 Commissioning 8 Enter the name of the connection, e.g. Fieldgate Service Adapter, press Next to continue 9 Enter "0" as phone number to dial, press Next to continue 10 Select the connection availability, e.g. Anyone’s use, press Next to continue...
  • Page 35 5 Commissioning Fieldgate FXA320 11 Enter your Internet Account Information – Enter User name = "scm", Password = "scm" and Confirm password = "scm" (scm is fixed and no other is allowed) – Select the option Use this account name..

  • Page 36: Dialing Up

    Fieldgate FXA320 5 Commissioning 5.1.5 Dialing up Unfortunately, Windows XP the Flow Control parameter back to the default value after a new connection has been added. For this reason, before the first ever connection can be made, the properties have to be changed again.
  • Page 37 5 Commissioning Fieldgate FXA320 4 The Properties dialog opens: 5 Select the modem used with the connection, then the Networking tab – Now select Internet Protocol (TCP/IP) and press Properties 6 In the Properties dialog that now appears press the Advanced... button, the dialog Advanced Properties opens at the General tab –...

  • Page 38: Securing Changes Made Via The Service Interface

    Fieldgate FXA320 5 Commissioning 7 In the Connect... dialog, see Step 3, select Dial 8 Open your Internet Browser, enter the default Fieldgate service cable address http:// 192.168.253.1 then press Enter. 9 The Connect to dialog appears: – Enter the User Name: super –...

  • Page 39: Fieldgate With Ethernet Interface

    5 Commissioning Fieldgate FXA320 Fieldgate with Ethernet interface The Ethernet connection must be set up in the Fieldgate and in the host computer. Normally, both must operate in the same IP address domain. Exactly which parameters are required depends upon the way your local area network functions.

  • Page 40: Set Up The Fieldgate Via Service Interface

    Fieldgate FXA320 5 Commissioning 5.2.2 Set up the Fieldgate via service interface 1 Press "Switch to Administrator Mode" Now press "Settings" followed by "Network" – The Network dialog appears: – Scroll down to Ethernet Setup and enter the parameters as appropriate (The screenshot above is an example for manual settings) –...

  • Page 41: Fieldgate With Analog Modem

    5 Commissioning Fieldgate FXA320 Fieldgate with analog modem The telephone connection must be set up in both the Fieldgate and the host computer, whereby the latter must be equipped with an analog modem. There are two basic use cases: • The user dials into the Fieldgate and views the required information.

  • Page 42: Set Up The Fieldgate Via Service Interface

    Fieldgate FXA320 5 Commissioning 5.3.2 Set up the Fieldgate via service interface 1 Press Switch to Administrator Mode Now press Settings followed by Network – In the Modem Setup dialog enter the parameters as appropriate, see Table 5-2 (The screenshot above is an example for US specifications, with default settings for IP addresses) –...

  • Page 43: Set Up The Dial Up Connection

    5 Commissioning Fieldgate FXA320 5.3.3 Set up the dial up connection Now set up the dial up connection for the analog modem installed on your computer: 1 Start the New Connection Wizard and follow the procedure in chap. 5.1.4 – In the Select a Device dialog, select the analog modem –...

  • Page 44: Connect To Fieldgate

    Fieldgate FXA320 5 Commissioning 4 In the Properties dialog that now appears press the Advanced... button, the dialog Advanced Properties opens at the General tab – Deactivate the "Use default gateway on remote network" option, press OK – Close all dialogs 5.3.4...

  • Page 45: Fieldgate With Gsm Modem

    5 Commissioning Fieldgate FXA320 Fieldgate with GSM modem There are two ways of setting up the device: • Point-to-point connection to the Fieldgate via GSM: the Fieldgate modem and the host dial-in connection must be set-up • Connection via the GPRS (General Packet Radio Service) of your GSM provider: the Fieldgate...

  • Page 46: Set Up The Fieldgate Via Service Interface

    Fieldgate FXA320 5 Commissioning 5.4.2 Set up the Fieldgate via service interface The Fieldgate must be installed and powered up. Do not insert the SIM card until you are instructed to do so! 1 Press Switch to Administrator Mode Now press Settings followed by Network –...

  • Page 47: Set Up The Dial-Up Connection In Your Computer

    5 Commissioning Fieldgate FXA320 6 When configuration is complete, select Settings => Special to restart the system and register the changes – In the System Restart dialog, check the "Confirm System Restart" box and press Send – The Fieldgate restarts with the changes made via the service interface permanently stored...

  • Page 48: Connect Point-To-Point To Fieldgate

    Fieldgate FXA320 5 Commissioning 5.4.4 Connect point-to-point to Fieldgate The connection is made as follows, for more details see chap. 5.1.5, Step 3 onwards: 1 In the Network Connections dialog, double-click on e.g. Fieldgate GSM Connection or click on the icon on your desktop, the Connect dialog appears: –...

  • Page 49: Miscellaneous Server Settings

    Fieldgate can automatically synchronise its time on every new start with the aid of a time server. An Internet connection or a time server in the local network is required for this. Endress+Hauser has its own time server, IP address= 62.154.220.81, which we recommend that you use. If you have any questions, please contact your network administrator.

  • Page 50: Miscellaneous Server Setup

    Fieldgate FXA320 5 Commissioning 5.5.2 Miscellaneous Server Setup This setup is required if Fieldgate accesses Internet via a proxy server. Procedure 1 If not already active, press Switch to Administrator Mode => Settings => Network – Scroll down to reveal the Miscellaneous Server Setup page.

  • Page 51: Message Settings

    5 Commissioning Fieldgate FXA320 Message Settings The Message page allows you to configure e-mails, messages for the Field Information Server and SMSs to be sent on an event or alarm. 5.6.1 Common Message Settings 1 If not already active, press Switch to Administrator Mode => Settings => Message –...

  • Page 52: Mail Setup

    Fieldgate FXA320 5 Commissioning 5.6.2 Mail Setup Configure the "Mail Setup" settings in order to send emails. NOTE! • Fieldgate only supports the "Simple Mail Transfer Protocol" (SMTP) to send emails. • The method SMTPS for secure communication in e-mail transport via SMTP over SSL/TLS is not supported by Fieldgate.

  • Page 53: Field Information Server (Fis) Setup

    5 Commissioning Fieldgate FXA320 5.6.3 Field Information Server (FIS) Setup Use the Field Information Server (FIS) to send messages via hypertext transfer protocol secure (https). The following information can be exchanged between the FIS and Fieldgate: • Periodic Measured Value Transmission at the transmission intervals set in Periodic Measurement Messages, see chap.

  • Page 54: Sms Setup

    Fieldgate FXA320 5 Commissioning 5.6.4 SMS Setup The Fieldgate with GSM modem is also able to send SMS mails on events or alarms. Procedure 1 If not already active, press Switch to Administrator Mode => Settings => Message – Scroll down the menu to reveal the SMS Setup page.

  • Page 55: Configuring The Fieldgate

    Once the IP address or domain name has been entered in your web browser and the connection made, you are prompted to enter a user name and the password. NOTE! • All Fieldgate FXA320 passwords are case sensitive and are limited to 8 characters without spaces Default user roles and Table 6-1 lists the user roles with passwords that are currently available in the Fieldgate.

  • Page 56: User Interface

    Fieldgate FXA320 6 Configuring the Fieldgate User interface Once logged on, depending upon the devices connected, a display such the following might appear in the web browser. If you are connecting up for the first time, it is also possible that only the Navigation bar appears, see chap.

  • Page 57: Navigation Bar

    Internet explorer: scan&refresh = xxx (s) • Click on AutoRefresh OFF to deactivate function Refresh Click to manually update the current display Endress+Hauser Click to open the Endress+Hauser website Overview Displays the values you have selected for monitoring and visualisation Switch to Administrator...

  • Page 58: Settings

    Fieldgate FXA320 6 Configuring the Fieldgate 6.2.3 Settings pages Depending upon whether User or Administrator Mode is selected, clicking on Settings reveals the Fieldgate information or configuration pages. A change from one view to another is made by clicking Switch to Administrator Mode/Switch to User Mode as appropriate and when prompted, by entering the corresponding password, see chap.

  • Page 59: Settings Menu

    6 Configuring the Fieldgate Fieldgate FXA320 Settings menu Settings contains various menus that can be used to set up the Fieldgate Web server. 6.3.1 Fieldgate location Fieldgate location provides you with the option of entering additional information on the location and characteristics of the Fieldgate.

  • Page 60: User

    Fieldgate FXA320 6 Configuring the Fieldgate 6.3.2 User Access rights to the Fieldgate are managed with the User function. As the administrator, you can create and manage up to five user accounts here. NOTE! • To avoid unauthorised access to the Fieldgate setup parameters, the default passwords should...

  • Page 61: Network And Messages

    6 Configuring the Fieldgate Fieldgate FXA320 6.3.3 Network and Messages Network Setup Network and Messages allow you to set up the communication parameters of your Fieldgate as described in the following sections: • Chapter 5.2: Fieldgate with Ethernet • Chapter 5.3: Fieldgate with analog modem •...

  • Page 62: Scan

    Power Down ... Check this box if the relay is used to switch off the power to the devices between scans – If the box is not checked, the relay acts as an alarm relay for the Fieldgate FXA320 Data Logging 4 If your Fieldgate has a DAT module installed, scroll down to the Data Logging dialog 5 Enter the parameters you require –...

  • Page 63: Input

    6 Configuring the Fieldgate Fieldgate FXA320 6.3.5 Input Input allows you to configure the overview page, i.e. to: • select the measured values to be displayed from the connected devices • set warning and alarm limits on the displayed values •...

  • Page 64: Special

    Fieldgate FXA320 6 Configuring the Fieldgate 6.3.6 Special Special opens a series of dialogues that relate to service issues. Get Configuration File The Get Configuration File dialog allows a configuration file to be downloaded from the Fieldgate. 1 If not already selected, press Switch to Administrator Mode and log in as administrator.

  • Page 65: Info

    6 Configuring the Fieldgate Fieldgate FXA320 6.3.7 Info Info allows you to view the Hardware Configuration and various logs provided by the Fieldgate. A full description is to be found in chap. 7.3.4 – Modem Log: records all transactions with the modem –...

  • Page 66: Overview

    Fieldgate FXA320 6 Configuring the Fieldgate Overview The Overview page is displayed after the user has logged into the Fieldgate or can be called by clicking on Overview in the navigation bar. It contains information on the devices connected to the Fieldgate and can be configured according to user specifications in Administrator mode.

  • Page 67: Analog Input Setup

    6 Configuring the Fieldgate Fieldgate FXA320 6.4.2 Analog input setup Analog inputs can be assigned a tag, engineering units and a linearization table. The significance of the parameters is described in Table 6-7. Analog input setup Parameter Description Enter the Device Tag that is to appear in the overview page...

  • Page 68: Digital Input Setup

    Fieldgate FXA320 6 Configuring the Fieldgate 6.4.3 Digital input setup Digital inputs can be assigned a tag, be enabled in the overview window and be set up as a switch (default), pulse or frequency input. Pulse and frequency signal should be debounced to avoid incorrect counts.

  • Page 69: Description/Range/Limit/Alarm

    6 Configuring the Fieldgate Fieldgate FXA320 6.4.4 Description/Range/Limit/Alarm The Description/Range/Limit/Alarm allows setup of the analog and digital inputs. The significance of the parameters is described in Tables 6-9 and 6-10. Limit values Four limit values can be configured in the Web server. Fieldgate tracks the status changes "LIMIT"...
  • Page 70 Fieldgate FXA320 6 Configuring the Fieldgate Overview setup Parameter Description parameters Show in Overview Check the PV box to show the value in the overview. Description 2x 20 characters for user description of measured value. CurrentValue Read only parameter showing current measured value with date and time.

  • Page 71: Sensor Error

    6 Configuring the Fieldgate Fieldgate FXA320 6.4.5 Sensor error A sensor error occurs when the output signal generated by the measuring device lies outside the normal operating range of 4 mA to 20 mA for analog inputs or –3V to +5 V/15V to +30V for binary inputs.

  • Page 72: Hardware Lock

    Fieldgate FXA320 6 Configuring the Fieldgate Hardware lock After Fieldgate has been commissioned, a local hardware lock can be set that prevents any modifications to Fieldgate settings via Internet, GSM or Modem. 6.5.1 Activating the hardware lock NOTE! • You require local access to the Fieldgate to deactivate the lock! Procedure 1 If not already selected, press "Switch to Administrator Mode"...

  • Page 73: Viewing Information (User Mode)

    7 Viewing Information (User Mode) Fieldgate FXA320 Viewing Information (User Mode) The information provided by the devices and Fieldgate is viewed in User Mode. Logging on Procedure 1 Enter the Fieldgate IP address or domain name in your web browser –...

  • Page 74: Overview

    Fieldgate FXA320 7 Viewing Information (User Mode) Overview 7.2.1 Device overview Press Overview to view the measured values, device status and limit status of the variables you selected in the setup pages. The parameters are explained in Table 7-1 below.

  • Page 75: Setup Details

    7 Viewing Information (User Mode) Fieldgate FXA320 7.2.2 Setup details Setup details are accessed by pressing the Tag in the device overview. Exactly which details are presented depends upon the device type. Overview setup This dialog shows the current setup of the overview page. See table 6-10, chap. 6.4.4 for details of the parameters.

  • Page 76: Device Details

    Fieldgate FXA320 7 Viewing Information (User Mode) 7.2.3 Device details Device details are accessed by pressing the Tag in the device overview. They are available only for analog devices Dynamic data/status This dialog shows the dynamic data and status read from a device. Table 7-2 describes the parameters.

  • Page 77: Settings

    7 Viewing Information (User Mode) Fieldgate FXA320 Settings Press Settings to open the menus that allow viewing of general Fieldgate parameters 7.3.1 Location Press Location to view the Fieldgate location page. The significance of the parameters is described in table 6-4in chap. 6.3.1.

  • Page 78: Info

    Fieldgate FXA320 7 Viewing Information (User Mode) 7.3.4 Info Press Info to show the hardware configuration of the Fieldgate as well as the various logs provided by the Web server. Depending upon Fieldgate version, various logs can be viewed. • Modem Log: records all transactions with the modem •...
  • Page 79 7 Viewing Information (User Mode) Fieldgate FXA320 System Log The system log displays all the activities since the last start, e.g. e-mail delivery, time fetch, alarms, etc. Up to 25 lines are displayed. The log is deleted when the Fieldgate is switched off. Table 7-5 explains the significance of the parameters.
  • Page 80 Fieldgate FXA320 7 Viewing Information (User Mode) Error Log The Error Log records Fieldgate error messages, e.g. failed password change etc. Up to 25 lines are displayed. The log is deleted when the Fieldgate is switched off. Table 7-6 explains the significance of the messages.
  • Page 81 7 Viewing Information (User Mode) Fieldgate FXA320 Error log message Meaning time service: cannot access http time service The time cannot be called up from the http server (web server). Check connection settings. time service: cannot connect to server The connection to the time server cannot be established.
  • Page 82 Fieldgate FXA320 7 Viewing Information (User Mode) Modem Log The modem log can be used to check the correct function of the Fieldgate with GSM modem. Up to 25 lines are displayed. The log is deleted when the Fieldgate is switched off. Table 7-7 explains the significance of the parameters.
  • Page 83 7 Viewing Information (User Mode) Fieldgate FXA320 Modem log message Connection Meaning no PIN is set -> please set PIN under Modem No pin number entered in GSM setup dialog, see Configuration chap. 5.4.2. no SIM card in device SIM card not inserted in device.

  • Page 84: Miscellaneous Functions

    The Refresh function can also be used to automatically update the page display at set the time intervals. For example, to refresh the page every 5 minutes (= 300 s) enter the following in your browser: http://192.168.252.1/?refresh=300 7.4.3 Endress+Hauser Press the Endress+Hauser to open the Endress+Hauser homepage (may differ from figure below). Endress+Hauser...

  • Page 85: Advanced Functions

    8 Advanced Functions Fieldgate FXA320 Advanced Functions XML data The XML Data function allows the information on the complete Fieldgate configuration plus the parameters and configuration of the connected devices to be downloaded to your computer for use in Office or other applications.

  • Page 86: Historical Data

    Fieldgate FXA320 8 Advanced Functions Historical data When a 256KB DAT module is being used, Fieldgate has a data logging function for buffering measured values and events. A prerequisite for its use is that the time and date are available to the Fieldgate, either through the use of a time server or manual entry, see chap.

  • Page 87: Interpreting The Historical Data

    8 Advanced Functions Fieldgate FXA320 8.2.2 Interpreting the historical data The data are in XML format – for a full description of the data elements, see table 12-1 in chap. 12.2. The log comprises a header identifying the Fieldgate, e.g.

  • Page 88: Wireless Application Protocol (Wap)

    Fieldgate FXA320 8 Advanced Functions Wireless Application Protocol (WAP) pages All Fieldgate versions can deliver information to WAP-capable mobile phones. This is done in the form of specially adapted WML pages with a restricted functional scope. The WAP function can be used e.g.

  • Page 89: Supplycare

    8 Advanced Functions Fieldgate FXA320 SupplyCare SupplyCare SupplyCare is a operating program for coordinating the flow of material and information along the supply chain. It gives you complete transparency over inventory levels in tanks and silos, anytime, anywhere and even at remote locations.

  • Page 90: Dynamic Dns Server

    Fieldgate FXA320 8 Advanced Functions Dynamic DNS server When Fieldgate dials into a GSM or Analog network, it is assigned an IP address which changes on every new connection. The dynamic Domain Name System (DNS) assigns a human-readable computer host name, e.g. www.myfieldgate.ath.cx to Fieldgate, allowing it to report its current IP address to the server.
  • Page 91 8 Advanced Functions Fieldgate FXA320 5 Now login with your <username> and <password> – My Account gives an overview of My Services, Account Settings and Billing 6 Now press My Services – Click Add Host Services in the Host Level Services section –...

  • Page 92: Trouble-Shooting

    (e.g. t-email.de, directbox.com, web.de etc.) Emails cannot be sent by Fieldgate The email provider supports only the Ensure that the email provider supports SMTPS protocol for email transmission SMTP protocol without encryption (SSL/TLS) Table 9-1: Trouble-shooting table for Fieldgate FXA320 Endress+Hauser...

  • Page 93: Reset

    9 Trouble-Shooting Fieldgate FXA320 Reset CH 1 CH 2 1 2 3 The device is reset with button (7) and LED (2). If the button is pressed and held during when the Fieldgate is started up, the following functions are available in the time frame when the button is...

  • Page 94: Troubleshooting On No Connection

    Fieldgate FXA320 9 Trouble-Shooting Troubleshooting on no connection 1 Is the Link LED lit on the Fieldgate? – Yes, proceed with point 2 – No, check the cable or connection to Fieldgate and PC/Network 2 Is the Link LED of the PC network card lit? –...

  • Page 95: Firmware Update

    Fieldgate FXA320 Firmware update NOTE! • A firmware update is possible only with the guidance of your Endress+Hauser Service Center Depending upon the circumstances, your Endress+Hauser Service Center may recommend: • a firmware update via Internet • reset to factory default parameters as part of any remedial action.

  • Page 96: 10 Accessories

    Fieldgate FXA320 10 Accessories 10 Accessories 10.1 Fieldgate FXA320 Product Description Order Code Protective housing Protection class IP 66, equipped with integrated top-hat rail and closed with a 52010132 transparent cover that can also be lead sealed • Dimensions: 180 mm x 182 mm x 165 mm •...

  • Page 97: 11 Technical Data

    11 Technical Data Fieldgate FXA320 11 Technical Data Table 11-1 provides you with the most important technical data - the full technical data is to be found in Technical Information TI025S/04/en. Property Attribute Supply voltage: AC version: 85...253 VAC, 50/60 Hz DC version: 20...60 VDC or 20...30 VAC...

  • Page 98: 12 Appendix

    Fieldgate FXA320 12 Appendix 12 Appendix 12.1 Commissioning Fieldgate Ethernet via Web browser NOTE! • The following procedure is for Windows XP: for other Windows operating systems, consult your network administrator • You require administration rights for your computer • Only one Fieldgate in delivery status may be in the network (address conflicts!) Before starting, the Fieldgate must either: •...

  • Page 99: 12.1.2 Connect To The Fieldgate

    12 Appendix Fieldgate FXA320 12.1.2 Connect to the Fieldgate 1 Start the web browser, e.g. Internet Explorer. Now enter the default address of the Fieldgate "192.168.252.1" in the address field of your browser and press the "Enter" key of your computer.

  • Page 100: 12.2 Xml Data Elements

    Fieldgate FXA320 12 Appendix 12.2 XML data elements Table 12-1 lists the XML data elements together with the type of information they carry. The XML data is a structured document with a document header and body. The Fieldgate data is sandwiched between two identifiers <xxx>...
  • Page 101 12 Appendix Fieldgate FXA320 Element Data Type Description <cntm> boolean Counter direction, 0 = up, 1 = down <mode> integer Binary input mode: 0 = switch, 1 = counter, 2 = frequency <cnts> float Start value of counter <cntg> float Counts per unit <lt>...

  • Page 102: Index

    Operation ........5 Endress+Hauser ....... 82 Overview .
  • Page 103 Fieldgate FXA320 Index System Log ........77 System requirements .
  • Page 106 Fieldgate FXA320 12 Appendix www.endress.com/worldwide Endress+Hauser...
