Step 2 Use the nut furnished with the new button to secure the button to the post and connect the
cable to the button.
Step 3 Verify that the button function is normal.
Step 4 Reinstall the post side panel.
----End

6.4.4.4 Replacing a Sliding Door Magnetic Lock

Context
The BOM number of a sliding door magnetic lock is 02070037. The following components
are required for installing a magnetic lock.

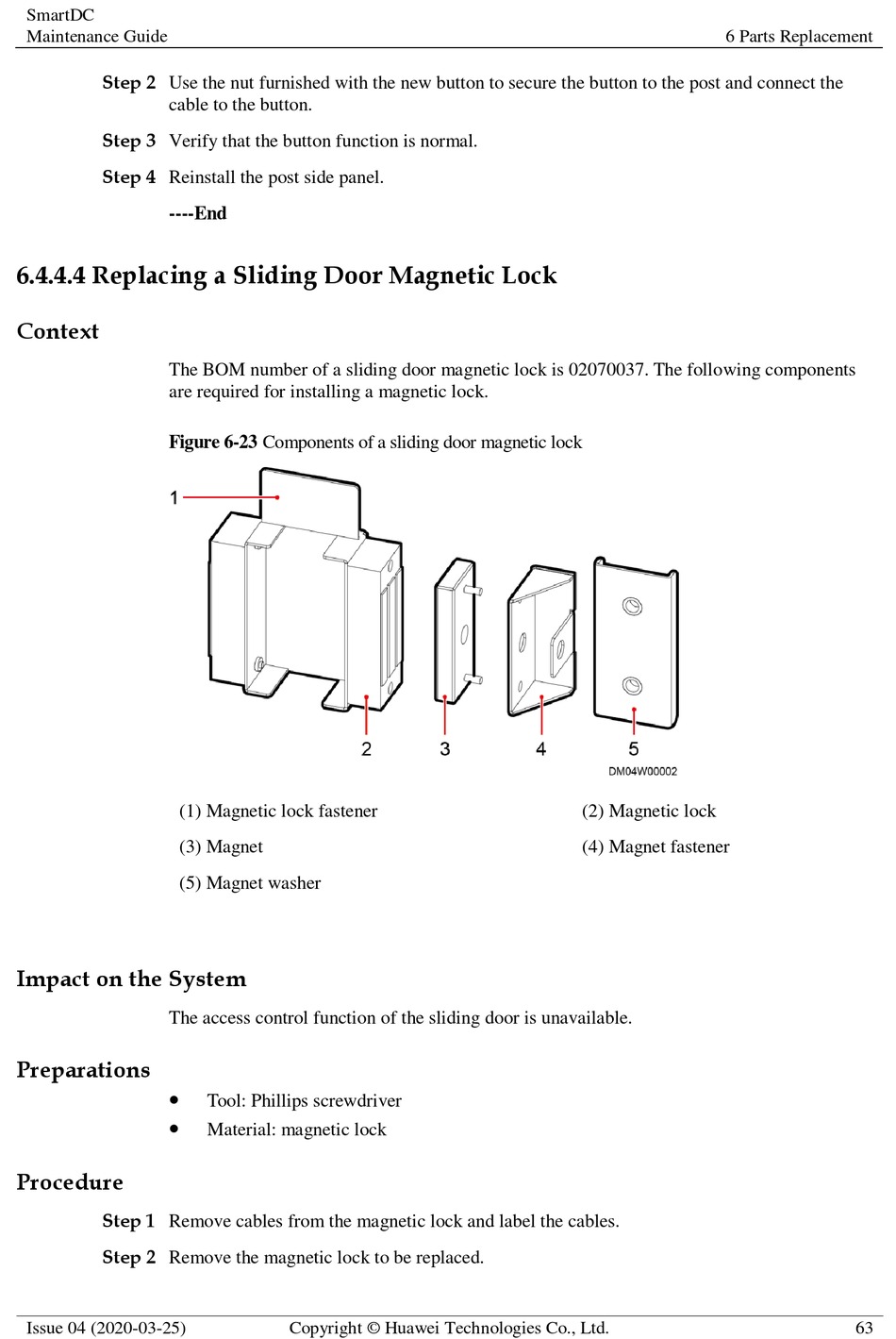

Figure 6-23 Components of a sliding door magnetic lock
(1) Magnetic lock fastener
(3) Magnet
(5) Magnet washer
Impact on the System
The access control function of the sliding door is unavailable.
Preparations


Procedure
Step 1 Remove cables from the magnetic lock and label the cables.
Step 2 Remove the magnetic lock to be replaced.
Issue 04 (2020-03-25)
Tool: Phillips screwdriver
Material: magnetic lock
Copyright © Huawei Technologies Co., Ltd.
6 Parts Replacement
(2) Magnetic lock
(4) Magnet fastener
63
