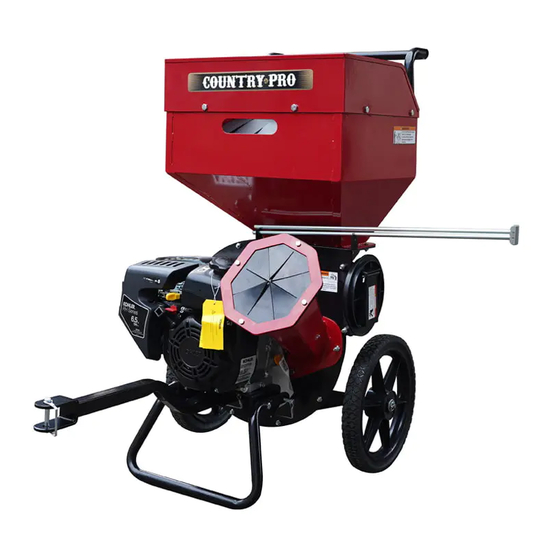

Country pro CP6502 Quick Start Manual

1. The chipper/shredder comes with no gasoline or oil in the engine.
2. Required tools for assembly: two 13mm wrenches and pliers.
STEP 1:
Attach the support leg to the engine
mounting plate with two sets of M8x40 hex
bolts and M8 nylon lock nuts using two
13mm wrenches. Lock the support leg in
place with two lock pins. See Figure 1.
STEP 2:
Attach the wheel to the wheel axle with a
Ø12 flat washer and a Ø3x30 cotter pin.
Secure the cotter pin with the pliers.
Repeat step 2 to attach the second wheel.
See Figure 2.
STEP 3:
Attach the handle to the hopper with four
sets of M8x20 hex bolts and M8 nylon lock
nuts using two 13mm wrenches. See
Figure 3.
STEP 4:
Attach the hopper fence to the hopper with
six sets of M8x16 hex bolts and M8 nylon
lock nuts using two 13mm wrenches. See
Figure 4.
STEP 5:
Attach the tow bar to the engine mounting
plate using a lock pin. See Figure 5.
STEP 6:
Attach the bag support rod by opening it at
the hinge and sliding it into the bag rack.
Stick the flat part of the bag support rod into
the slot. See Figure 6.
STEP 7:
Attach the discharge bag to the discharge
port by inserting the bag support rod into the
rings on the discharge bag. See Figure 7.
Secure the opening of the discharge bag to
the discharge port by pulling the bag rope to
cinch the bag around the port.
REV070320 CP6502
Chipper/Shredder Quick-Start Guide

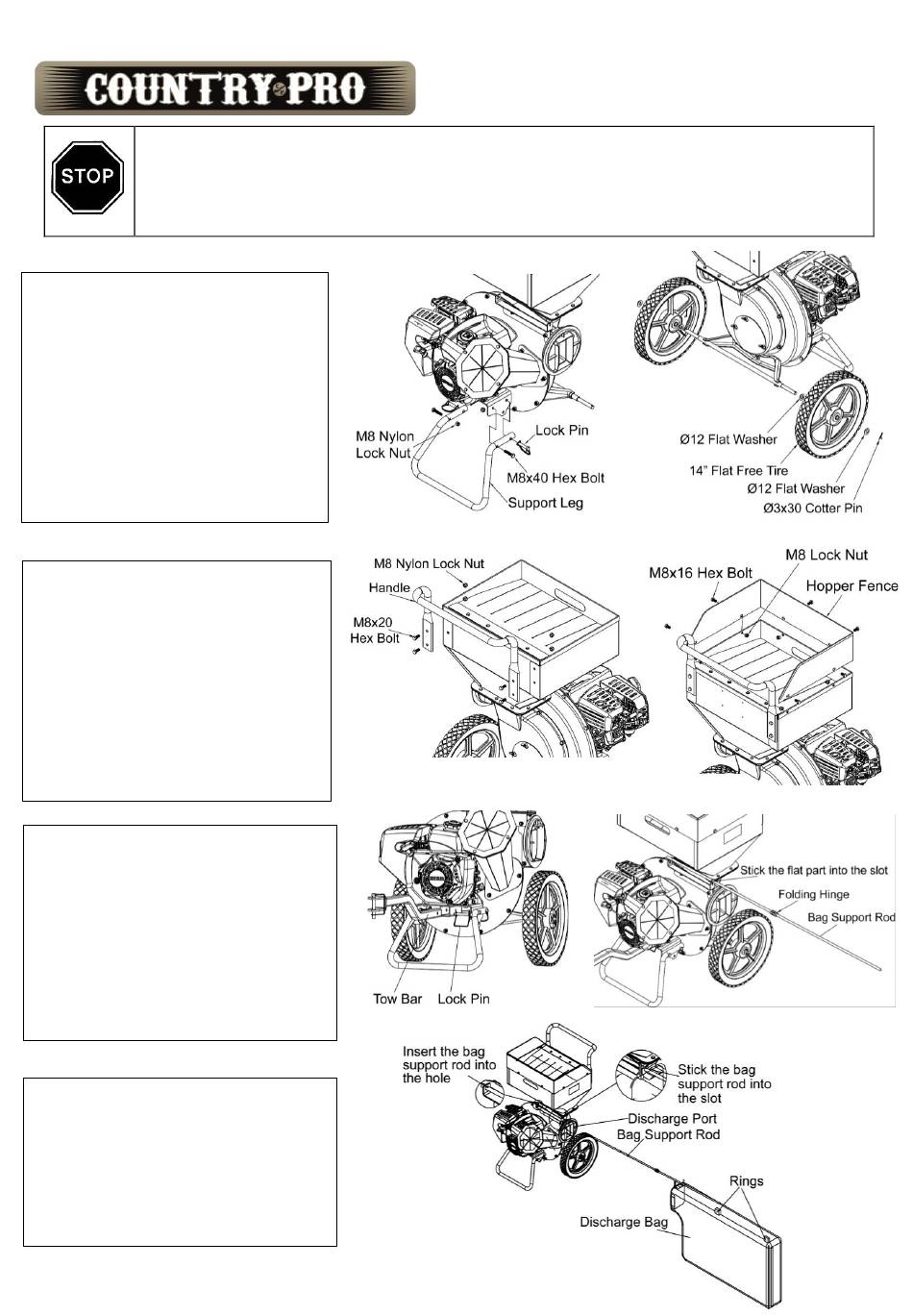

Figure 1
