This product contains a chemical or chemicals known to the State of California to
The engine exhaust from this product contains chemicals known to the State of California
Loose Parts
Use the chart below to verify that all parts have been shipped. Part numbers not shown are available on the dealer
extranet.
Dealer Pack
Part #
323-4
3290-357
107-4543
322-10
3256-3
104-8300
323-6
3290-357
98–5975
1-806003
1-806003
1-808280
3272-5
322-9
3296-29
3220-16
1-303287
103-2106
1-603511
© 2013—Exmark Mfg. Co., Inc.
P.O. Box 808
Beatrice, NE 68310
Proposition 65 Warning
cause cancer, birth defects, or reproductive harm.
to cause cancer, birth defects, or other reproductive harm.
Description
Screw, HH 3/8-16 x 3/4 inch
Nut, Whizlock 3/8-16 inch
Clamp, Tank
Screw, HH 5/16-18 x 2
Washer, 5/16 Std
Nut, Nyloc 5/16-18 Flg
Screw, HH 3/8-16 x 1 inch
Nut, Whizlock 3/8-16 inch
Washer, Spring Disc
Hairpin, Cotter
Hairpin, Cotter
Pin, Clevis
Pin, Cotter 3/32 x 1/2 inch
Screw, HH 5/16-18 x 1 3/4 inch
Nut, Nyloc 5/16-18 inch
Nut, Jam 3/8-24 inch LH
Tie, Cable
Key, Exmark Logo
Key, Standard
WARNING
CALIFORNIA
Qty.
8
8
2
2
2
2
4
4
4
1
1
1
1
2
2
2
6
1
1

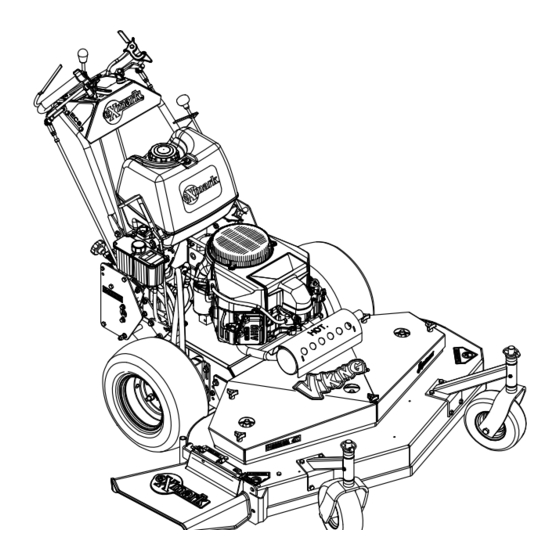

VIKING HYDRO
Setup Instructions
For Serial Nos. 314,000,000 & Higher
Use
Installing the front caster wheels.
Installing the fuel tank.
Installing the handle assembly.
Install the PTO engagement linkage.
Installing the speed control rod.
Installing the wheel drive linkages.
Connecting the wire harness.
Fill out the online warranty registration
form and place keys into literature
pack.
All Rights Reserved *4501-701* A
Part No. 4501-701 Rev. A
Printed in the USA
™
Advertisement
Related Manuals for Exmark VIKING HYDRO
Summary of Contents for Exmark VIKING HYDRO
- Page 1 Fill out the online warranty registration 103-2106 form and place keys into literature 1-603511 Key, Standard pack. © 2013—Exmark Mfg. Co., Inc. All Rights Reserved *4501-701* A Part No. 4501-701 Rev. A P.O. Box 808 Printed in the USA Beatrice, NE 68310...
- Page 2 Literature Pack Manual, Operator's Manual, Engine Operator's Uncrating the Unit Installing the Handle Assembly 1. Leaving the unit on the pallet, place the upper handle 1. Position the lower end of the handle assembly on assembly and the fuel tank at the rear of the machine. the outside of the upper rear section of the fuel tank Place the casters at the front of the unit.
-
Page 3: Installing The Speed Control Rod
the handle console from the right hand side and fasten with a hairpin from the bolt bag (Figure 4). 3. Connect the lower end of the speed control linkage to the speed control crank located at the top rear of the fuel tank support. - Page 4 3. Adjust the linkage length by loosening the jam nuts at both ends of the linkage and rotating the linkage in the ball joints. Lengthen the linkage if the tire is turning in reverse and shorten the linkage if the tire is creeping forward.
-
Page 5: Checking Tire Pressure
Checking Tire Pressure 1. Check the tire pressure in the drive tires. Proper inflation for drive tires is 12-14 psi (83-97 kPa). 2. Adjust if necessary. Greasing the Unit Note: The unit is not greased at the factory. Lubricate fittings with NGLI grade #2 multi-purpose gun grease. -
Page 6: Servicing The Engine
Servicing the Engine The engine is shipped with oil; check oil level and if necessary fill to the appropriate level. Exmark 4-Cycle Premium Engine Oil is recommended. Refer to the Engine Owner’s Manual for an acceptable alternative. Servicing the Hydraulic Oil The machine is shipped with hydraulic oil in the reservoir.
