ION SnapCam Quick Start Manual

Hide thumbs Also See for SnapCam:

Advertisement

Table of Contents


Quick Start Guide

Advertisement

Table of Contents
loading

Related Manuals for ION SnapCam

Summary of Contents for ION SnapCam

  • Page 1     Quick Start Guide  ...

  • Page 2: Key Features

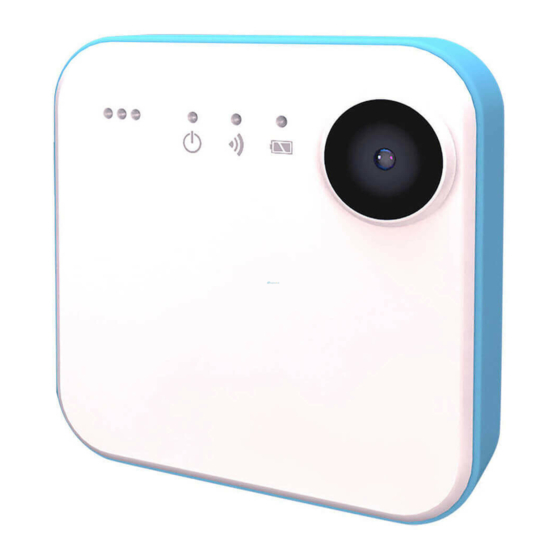

    Introduction SnapCam is a HD wearable camera. It allows user to take and share photos and videos on social media. Key Features Ultra Slim and Light-weight HD Video (720p @ 30fps) 8mp Photos Auto rotate. Upload and Share Photos and Videos using built-in Wi-Fi Magnetic Clip included to wear on clothes, bags, hats etc.
  • Page 3 Function Camera LED (Red) Indicate the camera reaction Wi-Fi LED (Blue) Indicate Wi-Fi status Indicate the camera battery Battery LED (Green) status Lens Wide angle lens Turn on and off the camera Power Button Turn on and off the Wi-Fi Reset the camera For attaching camera to clothing Magnet...
  • Page 4 Back Clip Mount and can clip on anywhere First Time to Use Charging your SnapCam Charge the built-in battery before starting to use your SnapCam. When the SnapCam is off, the charging time from empty to full is approximately   EN-4...

  • Page 5: Inserting A Microsd Memory Card

    1.5 hours. The LED will turn solid GREEN once the SnapCam is fully charged. Note : Charge your SnapCam every time before use. To charge your SnapCam more efficiently, ensure the Time Lapse Switch is at OFF position. Inserting a MicroSD Memory Card You must insert a MicroSD Card (not included) before using the SnapCam.

  • Page 6: Setting Date And Time

    The MicroSD Card must be formatted before first time use. Setting Date & Time When the SnapCam is used for the first time, or it has been restored to default settings, it is necessary to set the SnapCam’s clock to ensure the captured photo and video files are saved with correct date and time information.
  • Page 7 5. Using the SnapCam 5.1 Wearing your SnapCam This method is suitable for wearing your SnapCam on a jacket or relatively thick clothes.     EN-7...
  • Page 8 Note : Wear your SnapCam vertically, otherwise, the SnapCam may slip and produce a tilted view.   EN-8...
  • Page 9 5.2 Power On your SnapCam. Press the Power On button for 3-4 seconds, the SnapCam will automatically search for the Wi-Fi network.   EN-9...
  • Page 10 5.3 Take a Single Photo Simply tap the surface of your SnapCam to take a photo. You may also take a single photo using iON SnapCam App by click “Take Photo” button       EN-10...

  • Page 11: Take Time Lapse Photos

    SnapCam App using a smartphone. Simply click “Start Time Lapse Photo” on the iON SnapCam App, then your SnapCam will start to take photo with set time interval. You may cancel the Time Lapse Photo function through iON SnapCam App  ...

  • Page 12: Video Recording

    5.5 Video Recording   Simply tap the surface of your SnapCam 2 times then it will start video recording. You may also start video recording through iON SnapCam App by clicking “Start Video” button. Tap the surface of your SnapCam 2 times to stop the video recording, or click “Stop Video”...
  • Page 13 Set the duration of Short Video Recording on iON SnapCam App through smartphone. (Default is 15sec) Simply touch the surface of your SnapCam and hold to start short video recording. You may also take short video recording through iON SnapCam App by click “Start Short Video” button.
  • Page 14 (MS Mode) and transfer the photos and video files for storage, if it is not under recording. If the SnapCam is recording when connected to a PC, it will not enter to the mass storage mode but will begin charging.

  • Page 15: Specifications

    6. Specifications Lens Wide angle lens Water Resistance IPX4 Still Image resolution 8MP (Default), 2MP Video Resolution 720p 30fps , WVGA : 848 x 480 Video Format MPEG4 (H.264) .MP4 File Photo Format Memory Slot MicroSD card Windows XP, Vista, 7, and 8 ; Support System Mac OS X 10.6 or later Microphone...

  • Page 16: Troubleshooting

    7.Troubleshooting Problem Cause Solution Insert a MicroSD card. Supports 2GB 1. MicroSD card is not – 32GB class 6 or Unable to record inserted. higher. videos or photos 2. Memory is full. Replace a memory Camera malfunction. card with space available for content.
  • Page 17 FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 18       TRADEMARK INFORMATION © 2015 World Wide Licenses Limited. ® The iON logo is a registered trademark of World Wide Licenses Limited Questions? If you still have Like Us: Need Some Help? questions, www.facebook.com/ioncamera This manual should visit our website:...

  • Page 19: Specific Absorption Rate (Sar) Information

    Specific Absorption Rate (SAR) information: This equipment meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health.

  • Page 20: Tasa De Absorción Específica (Sar)

    pourraient ne pas être conformes avec les exigences d'exposition de la FCC RF et doivent être évités. Tasa de Absorción Específica (SAR): Este equipo cumple con las exigencias del gobierno para la exposición a ondas de radio. Las directrices se basan en normas desarrolladas por organizaciones científicas independientes mediante la evaluación periódica y exhaustiva de estudios científicos.
