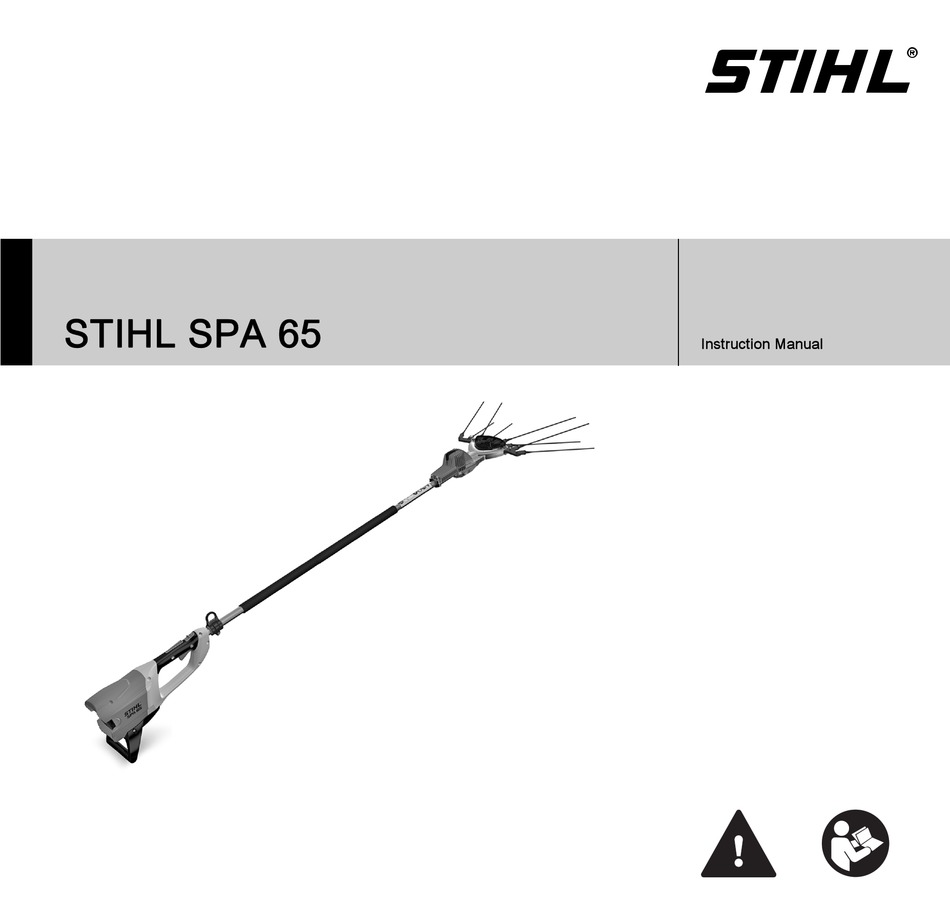

STIHL SPA 65
Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for Stihl SPA 65

Summary of Contents for Stihl SPA 65

  • Page 1 STIHL SPA 65 Instruction Manual...

  • Page 3: Table Of Contents

    19.1 STIHL SPA 65 Special Harvester ....19 19.2 STIHL AP battery ........19 Removing and Fitting the Battery .

  • Page 4: Introduction

    22.1 STIHL SPA 65 Special Harvester ....20 requirements. The products are designed for reliability even under extreme conditions.

  • Page 5: Symbols Used With Warnings In The Text

    English 3 Overview Symbols used with warnings in the text 3 Overview WARNING Special Harvester and Battery This symbol indicates dangers that can cause serious injuries or death. ► The measures indicated can avoid serious injuries or 12 13 death. NOTICE This symbol indicates dangers that can cause damage to property.

  • Page 6: Symbols

    English 4 Safety Precautions 6 Tines 1 LED glows red. Battery too hot or too cold. Shake the branches. 7 Trigger Switches the special harvester on and off. 4 LEDs flash red. There is a malfunction in the battery. 8 Retaining Latch Operated together with the trigger lockout to unlock the trigger.

  • Page 7: Intended Use

    WARNING Wear work gloves. ￭ Batteries not explicitly approved for the special harvester by STIHL may cause a fire or explosion. This can result in serious or fatal injuries and damage to property. Maintain safe distance. ► Use the special harvester with a STIHL AP battery or a STIHL AR battery.

  • Page 8: Clothing And Equipment

    ► Do not wear a scarf or jewelry. ￭ Wearing unsuitable footwear may cause you to slip or ► If you have any queries: Contact your STIHL servicing stumble. This can result in personal injury. dealer for assistance.

  • Page 9: Safe Condition

    ► Do not immerse battery in fluids. ► Never insert objects in the special harvester’s openings. ► If you have any queries: Contact your STIHL servicing dealer for assistance. ► Keep battery away from metallic objects.

  • Page 10: Operation

    15 minutes and seek medical ► Mount all the tines. advice. ► Only fit original STIHL accessories designed for these ￭ A damaged or defective battery may smell unusual, emit rakes. smoke or burn. This can result in serious or fatal injuries ►...

  • Page 11: Transporting

    ► Remove the battery. condition. This can result in serious injuries and damage to property. ► Stop work, remove the battery and contact your STIHL servicing dealer for assistance. ► Secure the special harvester to prevent turnover and ￭ Vibrations may occur while using the special harvester.

  • Page 12: Storing

    ► Store the battery out of the reach of children. ► If the special harvester, rakes or the battery require servicing or repairs: Contact your STIHL servicing ￭ The battery is not protected against all ambient dealer for assistance.

  • Page 13: Preparing Special Harvester For Operation

    5 Preparing Special Harvester for Operation ► Recharge the battery fully as described in the instruction 5 Preparing Special Harvester for manual for the STIHL AL 101, 300, 500 chargers. Operation Displaying State of Charge Preparing Special Harvester for Operation...

  • Page 14: Mounting The Machine Support

    English 8 Adjusting Special Harvester for User ► Position the right half of the machine support (4) against the side of the cover. ► Fit the screw (5). ► Insert and tighten down the screws (4) firmly. ► Tighten down the screws (1) and (5) firmly. The machine support (2) need not be removed again.

  • Page 15: Removing And Fitting The Battery

    ► Pull the trigger all the away and then let it go. ► Wait until the rakes come to a complete standstill. ► If the rakes do not stop running after a brief delay: Remove the battery and contact your STIHL dealer for assistance. ► Depress both locking levers (1).

  • Page 16: Checking The Special Harvester

    – wrap your thumb around the control handle. ► If the rakes do not stop running after a brief delay: Remove the battery and contact your STIHL dealer for ► Hold the special harvester firmly with your other hand on assistance.

  • Page 17: Adjusting Rake Speed For Continuous Duty

    UN Manual of Tests and Criteria, Part III, sub-section ► Comb the tree from the inside outwards, towards the tips 38.3. of the branches (C). For transport regulations see www.stihl.com/safety-data- sheets 13 After Finishing Work 13.1 After Finishing Work ►...

  • Page 18: Storing

    English 15 Storing ► Clean the rakes and tines with a damp cloth or STIHL 15 Storing resin solvent. 16.3 Cleaning the Battery 15.1 Storing the Special Harvester ► Clean the battery with a damp cloth. ► Switch off the special harvester, push retaining latch to position and remove the battery.

  • Page 19: Troubleshooting

    STIHL servicing dealer for assistance. Rakes do not move freely. ► Spray both sides of rakes with STIHL resin solvent. ► If 3 LEDs continue to flash red: Do not use your special harvester and contact your STIHL servicing dealer for assistance.
  • Page 20 ► Switch on the special harvester. Special harvester Battery not fully charged. ► Recharge the battery fully as described in the runtime is too short instruction manual for the STIHL AL 101, 300, 500 chargers. Normal battery life has ► Replace the battery. been exceeded.

  • Page 21: Specifications

    STIHL recommends that you wear hearing protection. accessories. – Sound pressure level L measured according to STIHL recommends the use of original STIHL replacement ISO 22868: 84 dB(A) K-value for noise pressure level is 2 parts and accessories. dB(A). Original STIHL replacement parts and original STIHL –...

  • Page 22: Ec Declaration Of Conformity

    Keep work area clean and well lit. Cluttered or dark areas production: EN 55014-1, EN 55014-2 and EN 60745-1. invite accidents. Technical documents are deposited at ANDREAS STIHL AG b) Do not operate power tools in explosive atmospheres, & Co. KG Produktzulassung (Product Licensing).

  • Page 23: Electrical Safety

    English 23 General Power Tool Safety Warnings 23.3 Electrical safety Carrying power tools with your finger on the switch or energising power tools that have the switch on invites a) Power tool plugs must match the outlet. Never modify the accidents.

  • Page 24: Battery Tool Use And Care

    English 23 General Power Tool Safety Warnings e) Maintain power tools and accessories. Check for e) Do not use a battery pack or tool that is damaged or misalignment or binding of moving parts, breakage of modified. Damaged or modified batteries may exhibit parts and any other condition that may affect the power unpredictable behaviour resulting in fire, explosion or risk tool’s operation.
  • Page 25 English 23 General Power Tool Safety Warnings 0458-704-0121-A...
  • Page 26 English 23 General Power Tool Safety Warnings 0458-704-0121-A...
  • Page 28 0458-704-0121-A englisch www.stihl.com *04587040121A* 0458-704-0121-A...
