Summary of Contents for Cambridge Audio DacMagic XS

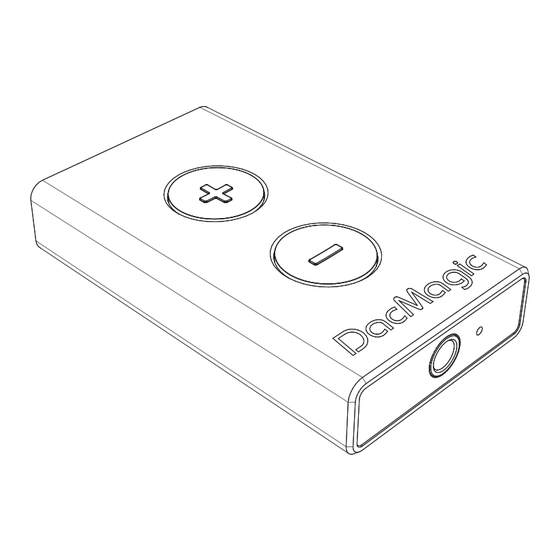

- Page 1 USB DAC User's manual Your music + our passion...
-
Page 2: Table Of Contents
Information in this document has been carefully checked for accuracy at the time of printing; however, Cambridge Audio's policy is one of continuous improvement, therefore design and specifications are subject to change without prior notice. -
Page 3: Connections
2. Volume buttons Press to increase or decrease the volume level. 3. Micro USB Use the supplied MicroUSB cable to connect the DacMagic XS to the PC’s USB input. Go to your computer’s ‘Sound’ settings and set ‘CA USB Audio 1.0’ as the default speaker or output device. -
Page 4: Operating Instructions
Digital to Analogue conversion in far higher quality, resulting in a much better sound. USB Class 2.0 To improve the sound even further, it is possible to use the DacMagic XS in USB Class 2.0 mode. Press and hold both Volume buttons to switch between USB Class 1.0 and 2.0:... -
Page 5: For Windows
– Allows you to use ASIO – see Audiophiles Guide to USB Audio, available on our website. 1. Connect the DacMagic XS to an available USB port on your computer. Switch the DacMagic XS into Class 2.0 mode by pressing and holding both volume buttons until the LED flashes pink three times. -
Page 6: Technical Specifications
Technical specifications Connections Micro-USB input, 3.5mm analogue output ESS9023 Sample rates supported USB 1.0 mode: 16/24-bit, 44.1kHz, 48kHz, 88.2kHz, 96kHz USB 2.0 mode: 16/24-bit, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz 2V RMS Output voltage Maximum power 150mW Minimum headphone 12 Ohms impedance Frequency response +/-0.2dB 20Hz –... - Page 7 Cambridge Audio is a brand of Audio Partnership Plc Registered Office: Gallery Court, Hankey Place London SE1 4BB, United Kingdom Registered in England No. 2953313 www.cambridge-audio.com © 2014 Cambridge Audio Ltd...
