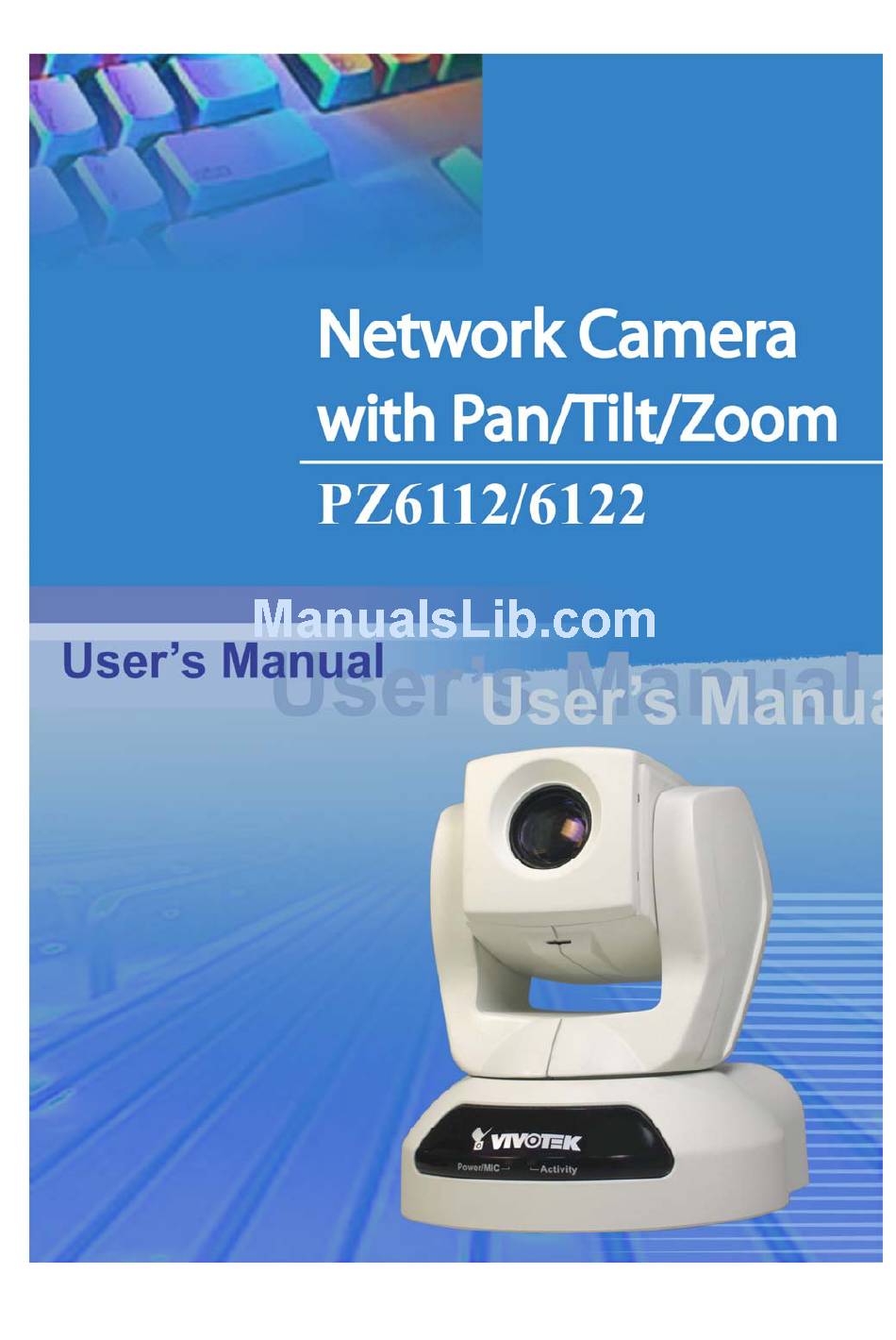

Vivotek PZ6112 User Manual

Network camera with pan/tilt/zoom
Hide thumbs Also See for PZ6112:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Vivotek PZ6112

Summary of Contents for Vivotek PZ6112

  • Page 2 Product name: Network Camera (PZ61x2) Release Date: 2005/03/28 Manual Revision: 1.10 Web site: www.vivotek.com Email: technical@vivotek.com sales@vivotek.com Made in Taiwan. ©Copyright 2000-2005. All rights reserved www.vivotek.com T: 886-2-82455282 F: 886-2-82455532 - 1 -...

  • Page 3: Before You Use This Product

    For paragraphs preceded by the reader should use caution to understand completely the warnings. Ignoring the warnings may result in serious hazards or injuries. - 2 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 4: Package Contents

    Package Contents PZ61x2 Power adapter A/V Cable Remote Controller Camera stand Software CD Quick installation guide Warranty card - 3 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 5: Table Of Contents

    Opening Accounts for New Users ... 22 Protect Network Camera by Passwords ... 22 More Flexible Options for Viewers ... 23 Build a Multimedia Web Attraction Site... 23 Demo on Multiple Sites – Mid-scale Service... 23 - 1 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 6 Application Setup ... 54 Weekly Schedule ... 54 Event Operation ... 54 Sequential Operation ... 55 Viewing System Log ... 57 Viewing System Parameters ... 57 Factory Default ... 57 Remote Controller ... 58 T: 886-2-82455282 F: 886-2-82455532 - 2 - www.vivotek.com...
  • Page 7 System Logs ... 82 Configuration File ... 83 Upload File (firmware)... 83 Camera Control ... 84 Recall ... 85 System Information ... 86 Preset Locations ... 87 E. Technical Specifications ... 88 T: 886-2-82455282 F: 886-2-82455532 - 3 - www.vivotek.com...

  • Page 8: Installation

    UTP Category 5 and not exceed 100 meters in length. Connect the power adapter jack to the Network Camera before plugging in to the power socket. This will reduce the risk of accidental electric shock. - 4 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532 Depending on...
  • Page 9 Consult with the dealer of the peripherals for correct installation. SW_COMMON SW_NOPEN www.vivotek.com T: 886-2-82455282 F: 886-2-82455532 INPUT (Max. 50mA, 12VDC) INPUT (Initial state of DI is low) OUTPUT (open from SW_OPEN at initial state) (close with SW_OPEN when set DO to ON) OUTPUT (Max.

  • Page 10: Software Installation

    (If the program is not on auto-run, go to the root directory of the software CD and click on “autorun.exe”). Click on “Software Utility” item, after the window contains changed, click on - 6 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 11 “Installation Wizard” to run Vivotek’s installation program. Upon Installation Wizard’s start up, a searching box will pop up. searches for Vivotek’s product on the same LAN: After searching, Vivotek Video Servers or Network Cameras will be located by the Installation Wizard. There may be several...
  • Page 12 192.168.0.98. After an IP address is assigned to the camera, the “Activity” status LED blinks. The Vivotek’s new UPnP function will always assign an IP address for the Network Camera. The Administrator can click on button “Link to selected device” to connect the I.E.
  • Page 13 For more detailed usage of the Installation Wizard, please refer to the user’s manual of the Installation Wizard. - 9 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 14: Initial Access To The Network Camera

    If the web browser does not allow the user to continue to install, check the Internet security option and lower the security levels or contact your IT or networking supervisor for help. - 10 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 15: Check Network Settings

    System Configuration page for details. If any setting is entered incorrectly and cannot proceed to setting up the Network Camera, restore the factory settings following the steps in the “Troubleshooting” chapter of the Appendix. - 11 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 16: Add Password To Prevent Unauthorized Access

    Once the password is set, there is no provision to recover the Administrator’s password. The only option is to restore to the original factory default settings. - 12 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 17: How To Use

    The foreground is the login window and the background shows the message if authentication fails. The user may check the option box to save the password for future convenience. - 13 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 18: Primary User's Capabilities

    Pan/Tilt/Zoom control buttons: These buttons provide a command interface to control the aim of the camera. CCD control buttons: These buttons provide a command interface to control the aim of the camera. - 14 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 19: The Configuration

    The direction buttons are for Left, Right, Up, Down, and Home functions. The Home button centers the camera. “Go to” Once the Administrator has determined the preset positions; the User can aim the camera using this control. Microphone volume Speaker volume - 15 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 20: The Ccd Control Buttons

    Click to focus nearer. Click IRIS smaller. Click to do auto focus. - 16 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532 Click to zoom telescopically and see more clearly. Click to focus farer. Click to set IRIS bigger.

  • Page 21: Client Settings

    UDP protocol and save, then return to HOME to connect to the Network Camera. Streaming Options – For users to select the video streaming types. Select - 17 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 22 JPEG image from server according to the “Frame rate” settings. Talk Button Control Style – For the User to determine whether to “click once and talk” or “push to talk”. - 18 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 23: Administrator's Capabilities

    “Size”, “Maximum frame rate”, “Video codec type”, “Key frame interval”, “Fix bit rate”, and “Fix quality” on the Video Configuration page, are correlative to allow for achieving the best performance possible. - 19 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 24: For Best Real-Time Video Images

    “broken” pictures, go to the HTTP protocol in “Connection type” and choose a more appropriate mode of transmission. The images may suffer a time delay due to a slower connection. - 20 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 25: Somewhere Between Real-Time And Clear Images

    JPEG image would be 3k~12k bytes, depending on the selected video quality and contents. Together with the frame rate selected, the administrator can control the bandwidth of each connection. - 21 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 26: Opening Accounts For New Users

    Each account has four kinds of privileges, which can be set individually. The “I/O access” privilege permits the user to access DI/DO of the server. The “Camera Control” privilege allows different control to pan/tilt - 22 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 27: More Flexible Options For Viewers

    If you want to expand to allow in more viewers, the host server should be able to handle large network traffic, which must handle the picture refreshing from the Network Camera. - 23 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 28: If The Web Space Has Ftp Service

    Set the Network Camera up as an FTP client to upload the pictures. The access to the Network Camera will be independent of the number of viewers and the picture quality will remain constant. - 24 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 29: If The Web Space Has No Ftp Service

    Network Camera. Define the refresh interval according to your network bandwidth for best result. If the refresh rate is too fast and there is a large number of visitors, this may overload the Network Camera and slows the response. - 25 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 30 Date(); setTimeout('refresh()', refreshrate*1000);} document.write('<img width="'+imgwidth+'" name="pic">'); if(document.images)window.onload=refresh; </script> <!-- End of scripts to auto refresh the image. //--> </p> </body> </html> //SECONDS BETWEEN REFRESH //IMAGE WIDTH //IMAGE HEIGHT src="'+image+'" - 26 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532 //IMAGE URL height="'+imgheight+'"...

  • Page 31: Build A Security Application

    4. Check the “Event operation”. The triggering condition can be set to detected motion or status of the attached device, 5. Set the delay before detecting next event to avoid continuous false alarms following the original event, - 27 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 32: Send Snapshots When Motion Is Detected

    Administrator and red means it is over the watermark, 13. Click on “Application” in the left column, 14. Check on the window name set in step 9, - 28 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 33 15. Check “Upload snapshots while motion detected”, if e-mailing the snapshots is preferred, 16. Check “Send snapshots by email”, 17. Click on “Save” to validate. - 29 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 34: Definitions In Configuration

    <url> http://<Network Camera>/setup/config.html <Network Camera> is the domain name or original IP address of the Network Camera. <url> http://<Network Camera>/setup/system.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 30 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 35: System Parameters

    “Update interval” Select hourly, daily, weekly, or monthly update with the time on the NTP server. Remember to click on to immediately validate the changes. Otherwise, the correct time will not be synchronized. - 31 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 36: User Group Administration

    “Delete user” Pull down the user list to find the user’s name and press complete. “Edit user” Pull down the user list to find the user’s name and press to edit the user’s password and privilege. - 32 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 37 <url> http://<Network Camera>/setup/security.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 33 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 38: Edit User

    Edit User Type the new password, change the privilege and press to modify the account. <url> http://<Network Camera>/setup/edituser.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 34 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 39: Network Settings

    Invalid router setting will fail the transmission to destinations in different subnet. “Primary DNS” The primary domain name server that translates hostnames into IP addresses. “Secondary DNS” The secondary domain name server that backups the Primary DNS. - 35 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 40: Http

    “UDP Video channel port” This can be something other than the default port 5003 in order to work with the port opened by the firewall. <url> http://<Network Camera>/setup/network.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 36 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 41: Ddns & Upnp

    “Network Camera with Pan/Tilt”, and the IP address of the Network Camera is xxx.xxx.xxx.96, depends on the last value of the IP address assigned to the Network Camera. “Save” Click on this button to save current settings for the DDNS service and UPnP function. - 37 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 42 <url> http://<Network Camera>/setup/ddnsupnp.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 38 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 43: Mail & Ftp

    “1st FTP password” Granted password on the external FTP server. “1st FTP remote folder” Granted folder on the external FTP server. The string must conform to that of the external FTP server. Some FTP servers cannot accept preceding - 39 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 44 “2nd FTP password” Granted password on the backup FTP server. “2nd FTP remote folder” Granted folder on the backup FTP server. “2nd FTP passive mode” Passive mode setting for the backup FTP server. - 40 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 45 <url> http://<Network Camera>/setup/mailftp.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 41 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 46: Video Codec Parameters

    "Flip" Vertically rotate the video. "Mirror" Horizontally rotate the video. Check options both if the Network Camera is installed upside down. “Improve efficiency in the multi-user environment” Check this option to improve - 42 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 47 But it will cause each connection slow a few minutes when connection established. <url> http://<Network Camera>/setup/video.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 43 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 48: Image Settings

    Image Settings Click on “Image Settings” to pop up another window for tuning "Brightness", “Contrast”, “Hue” and "Saturation" for video compensation. - 44 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532 Each field eleven levels ranged from -5 to +5. The User may press “Preview”...

  • Page 49: Ccd Settings

    (AES) option will be fixed at 1/60 (1/50) second. Once the shutter is selected as “Auto”, the IRIS of the CCD will become fixed. There are several selectable items for AES. Faster electronic shutter helps seeing fast moving objects more clearly. - 45 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 50 48 rectangle areas with the same size. Select the areas to enable BLC, if no area is selected, checking “Enable BLC” option makes the video no differences. - 46 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 51 In the CCD settings window, click on “Preview” to see the effect of changing the options. Click on “Save” to set the CCD settings. Click on “Restore” to recall the original settings without incorporating the changes. - 47 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 52: Audio

    “Bit rate” There are three kinds of bit-rate for audio. 32Kbps and 24Kbps are suitable for both music and speech like audio while 8Kbps are suitable for only speech like audio. - 48 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 53 <url> http://<Network Camera>/setup/audio.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 49 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 54: Motion Detection

    “Percentage” This sets the space ratio of moving objects in the monitoring window. Higher sensitivity and small percentage will allow easier motion detection. <url> http://<Network Camera>/setup/motion.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 50 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 55: Camera Control

    “Add” button. The camera allows for ten preset locations. * The preset function is valid only in optical zoom mode. “Preset position” This keeps a list for preset positions. Clicking on the “Delete” - 51 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 56 “Enable IR control”, “Dwelling time” and “Patrol selections”. In other words, after changing these settings, and the “Save” button is not clicked, the new setting of the camera will not take effect. - 52 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 57 Camera control area Preset function area <url> http://<Network Camera>/setup/camctrl.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 53 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 58: Application Setup

    “Motion detection” and a note will show to direct the User to the configuration page for motion detection. “Trigger action” There are four options for two types of action. More than one - 54 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 59: Sequential Operation

    , after 3 o’clock, 4 minute and 5 second as the previous frame in event operation. If this suffix is omitted, the file named “video.jpg” on the external FTP server will be refreshed at the specified interval. - 55 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 60 <url> http://<Network Camera>/setup/app.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 56 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 61: Viewing System Log

    This function is the same as the “Center” button on the Remote Controller. Please note that there is no confirming message box after clicking on the “Calibrate” button, the Network Camera will calibrate immediately. - 57 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 62: Remote Controller

    “Center” This calibrates the camera’s position to aim at the center as the camera boots “Stop” This stops the auto movements (auto pan & auto patrol) of the camera. Direction control area Auto movement control area - 58 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 63: Appendix

    RESTORE: 1. Poke the wrench to press on the button continuously. 2. Wait for self-diagnostic. During the diagnostic period, the red & green lights will flick for several times. 3. Withdraw the wrench when all the lights are off. - 59 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 64 A The timestamp is based on the system time of the Network Camera. It is maintained by a real-time clock inside and can be automatically synchronized with the time-server if the Network Camera is connected to the Internet and the function is enabled. - 60 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 65 Q How many users are allowed to watch the Network Camera at the same time? A Too many users requesting the real-time multimedia content will jam the network. For best results, the Network Camera is designed to accommodate a maximum of ten - 61 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 66 A Since the Network Camera is a "network camera", any incorrect network settings will make it inaccessible. If this happens, restore the factory default settings following the procedures in Appendix A. - 62 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 67: Cleaning The Lens

    C. Pan/Tilt/Zoom Data unit tilt angle: 0.918 degree The tile speeds of different auto pan/tile speeds. auto tile speed 1: 1.65 degree/sec - 63 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532 Never touch...

  • Page 68: Url Commands Of The Network Camera

    3.88 7.75 11.63 15.50 19.38 23.26 25.84 28.42 1.94 3.88 5.81 7.75 9.69 11.63 12.92 14.21 0.97 1.94 2.91 3.88 4.85 - 64 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532 7.34 8.26 9.18 10.10 3.67 4.13 4.59 5.05 1.84 2.07 2.30 2.52...

  • Page 69: Overview

    Description of returned data is written with "Return:" in bold face followed by the returned data in a box. All data returned as HTTP formatted, i.e., starting with the string HTTP is line separated with a Carriage Return and Line Feed (CRLF) printed as \r\n. - 65 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 70: General Cgi Url Syntax And Parameters

    Note: This request require administrator access Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] where the <parameter> should be <group>[_<name>] or <group>[.<name>] If you do not specify the any parameters, all the parameters on the server will be returned. If - 66 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 71: Set Server Parameter Values

    Example: request IP address and it’s response Request: http://192.168.0.123/cgi-bin/admin/getparam.cgi?network_ipaddress Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n Set Server Parameter Values Note: This request require administrator access Method: GET/POST Syntax: - 67 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 72: Available Parameters On The Server

    If you omit this parameter, it will redirect to an empty page. (note: The return page can be a general HTML file(.htm, .html) or a Vivotek server script executable (.vspx) file. It can not be a CGI command. It can not have any extra parameters.
  • Page 73 12 characters mac address without hyphen connected string shorter version model, company, and version number Restore default value. The value will be valid after restart the server. Restart - 69 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532 sync date/time sync date/time means seconds firmware, including...
  • Page 74 – Permit configuration The current account number on the server including root. DESCRIPTION enable to get ipaddress, subnet, router, dns1, dns2 from DHCP server at next reboot - 70 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532 version currently change server’s...
  • Page 75 80 characters mail recipient address, max 63 characters mail recipient address, max 15 characters return email address, max 80 characters less than FTP port name IP primary FTP server - 71 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 76 Enable passive mode of primary FTP server Disable passive mode of primary FTP server less than HTTP port less than video Channel port for UDP less than audio Channel port for UDP DESCRIPTION - 72 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 77 3 fps set maximum frame rate to 5 fps set maximum frame rate to 10 fps set maximum frame rate to 15 fps set maximum frame rate to 20 fps - 73 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 78 (only possible in Half-duplex) Use external microphone in Use build microphone Disable low bandwidth environment support Improve in low bandwidth environment Disable DESCRIPTION Adjust brightness of image according to mode settings. - 74 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 79 #1 Left coordinate of window position. Top coordinate of window position. Width of motion detection window. Height of motion detection window. Update the above motion detection settings to take effect DESCRIPTION - 75 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 80 Your password or key to login ddns service provider Update the above ddns settings to take effect DESCRIPTION Enable or disable the UPNP service. DESCRIPTION Pan speed Tilt speed Zoom speed Auto pan speed Time to dwelling when patrol - 76 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 81 1: white balance control Adjust colors by setting different levels. Set ccd_whitebalancemode to 0 before setting this parameter. Set different levels to meet different color temperatures (3200K~9600K). Set whitebalancemode to 1 before setting this parameter. - 77 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 82: Drive The Digital Output

    Second row in BLC area. 0~255 Third row in BLC area. 0~255 Fourth row in BLC area. 0~255 Fifth row in BLC area. 0~255 Sixth row in BLC area. - 78 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532 enable back light...

  • Page 83: Query Status Of The Digital Input

    The <return page> can be a full URL path or relative path according the the current path. If you omit this parameter, it will redirect to an empty page. - 79 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 84: Capture Single Snapshot

    Server will return the most up-to-date snapshot in JPEG format. The size and quality of image will be set according to the JPEG settings on the server. Return: HTTP/1.0 200 OK\r\n Content-Type: image/jpeg\r\n [Content-Length: <image size>\r\n] - 80 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 85: Account Management

    The default value is an empty string. The privilege of user to add or to modify. The privilege can be the addition of the following values. Ex: A user with DI/DO access and listen privilege privilege=dido&privilege=listen. - 81 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532 assigned privilege...

  • Page 86: System Logs

    The <return page> can be a full URL path or relative path according the the current path. If you omit this parameter, it will redirect to an empty page. - 82 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 87: Configuration File

    Note: This request requires administrator privilege Method: POST Syntax: http://<servername>/cgi-bin/admin/upload.cgi Post data: file=<file name>[&return=<return page>]\r\n \r\n <multipart encoded form data> Server will accept the upload file named <file name> to be stored on the flash as - 83 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 88: Camera Control

    Set the tilt speed Set the zoom speed Set the auto pan/patrol speed Auto pan Auto patrol Stop camera To zoom for larger view with current speed To zoom for farer view with current speed - 84 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 89: Recall

    The <return page> can be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page. - 85 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 90: System Information

    => Support pan operation. 0(not support), 1(support) Bit 3 => Support tilt operation. 0(not support), 1(support) Bit 4 => Support zoom operation. 0(not support), 1(support) Bit 5 => Support focus operation. 0(not support), 1(support) - 86 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 91: Preset Locations

    The <return page> can be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page. - 87 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...

  • Page 92: Technical Specifications

    Adapter input: 100-240VAC, 50/60Hz, 0.4A Adapter output: 12VDC, 1.5A - Operating Environment Temperature: 0-40°C/32-104°F Humidity: 85%RH -EMI & Safety CE, FCC - Viewing system requirement Operating System Microsoft Windows 98SE/ME/2000/XP Browser Internet Explorer 5.x or above - 88 - www.vivotek.com T: 886-2-82455282 F: 886-2-82455532...
  • Page 93 B of EN55022/1998, and the requirement for immunity according to EN50082-1/1992. Liability Vivotek Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. Vivotek Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

This manual is also suitable for:

Pz6122
