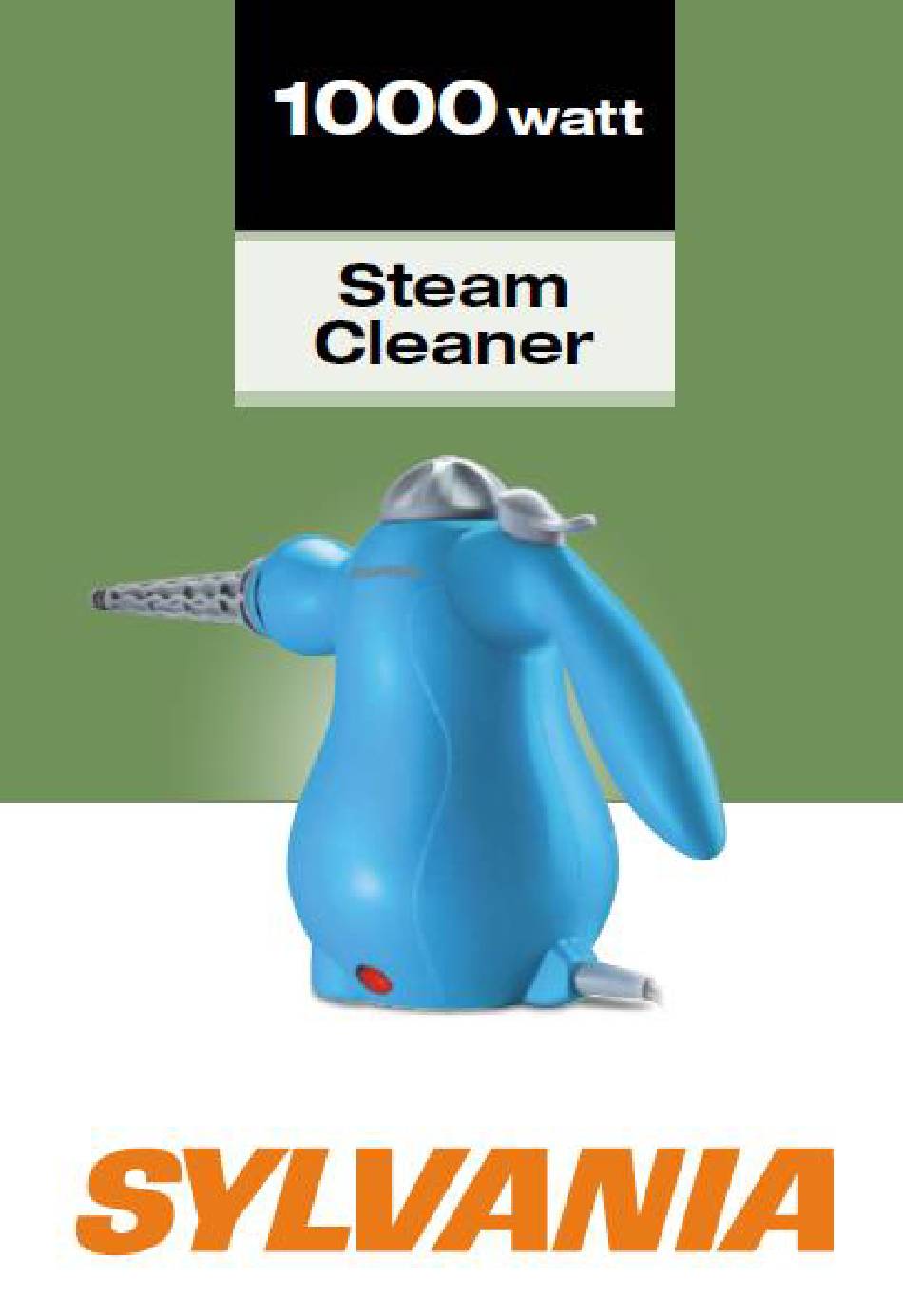

Summary of Contents for Sylvania ZQ012-A
- Page 2 IMPORTANT SAFEGUARDS Definitions Whenever used, the following symbol and terms identify safety and property damage messages and designate a level of hazard seriousness. - This is the safety alert symbol. It alerts you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
- Page 3 • Contents under pressure; do not open the Water Tank Cap while operating the product or until all pressure has been released. • Ensure the product is properly assembled before use. • Use care to avoid steam burns; do not point the product at or use it on people or animals.
- Page 4 • Keep the Power Cord away from heated surfaces; never apply steam over the Power Cord. • Do not put any stress on the Power Cord where it connects to the product, as the Power Cord could fray and break. •...
- Page 5 Parts 1. Indicator Light 9. Extension Hose 2. Water Tank 10. Steam Nozzle 3. Spout 11. Three Brush Nozzles 4. Water Tank Cap 12. Angled Nozzle 5. Steam Trigger 13. Surface Nozzle 6. Handle 14. Window Squeegee 7. Power Cord 15.
- Page 6 3. Push down the Water Tank Cap and turn counterclockwise to remove. 4. Empty the Measuring Cup into the Water Tank, and then replace the Water Tank Cap by turning it clockwise until the rubber ring under the Cap contacts the metal ring on top of the Tank.
- Page 7 • Surface Nozzle (for use with Extension Hose only): Align the tabs in the end of the Extension Hose with the notches in the Spout of the Water Tank. Firmly push the end of the Extension Hose into the Spout, aligning the arrow on the Extension Hose with the unlocked symbol “...
- Page 8 Attach the Extension Hose and Surface Nozzle as instructed in the Surface Nozzle subsection. b. Hook the small tabs on the bottom of the Window Squeegee into the slots on the bottom of the Surface Nozzle, and then push the top of the Nozzle under the Locking Tab near the top of the Squeegee.
- Page 9 WARNING: Always unplug the product when it is not in use or is left unattended. 11. Hold down the Steam Trigger, push down and twist the Water Tank Cap counterclockwise and screw counterclockwise to remove it, and then pour out any remaining water.
- Page 10 • Surface Nozzle: Turn the Surface Nozzle counterclockwise until the arrow aligns with the unlocked symbol “ ” on the Extension Hose, slightly twist it, and then pull it from the Extension Hose. 4. Follow the instructions under the “To Assemble and Use” section to connect a different attachment.
- Page 11 Version #1010 ©2010 All Rights Reserved UL is a registered trademark of Underwriters Laboratories Inc. and is used under license. SYLVANIA is a registered trademark of OSRAM SYLVANIA Inc. used under license. Distributed By: Atico International USA, Inc. Ft. Lauderdale, FL 33301 For product information, questions, or customer service, e-mail sylvaniaproducts@product-info.us or call toll free 1-866-492-8133.
