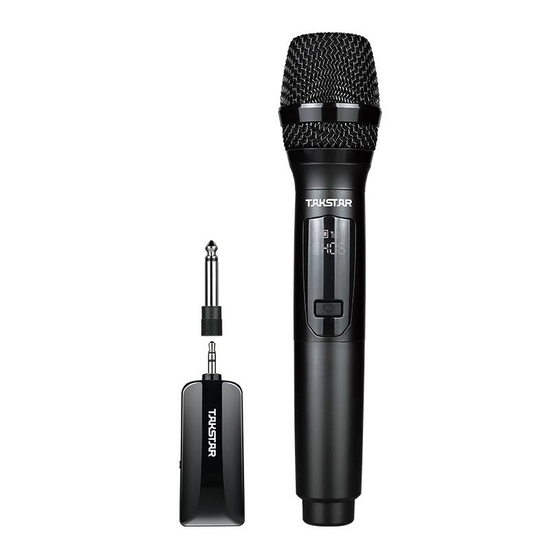

TS-K201 便携式无线麦克风 ■ 功能示意 麦克风 ① ⑤ ② ③ ⑥ ④ ① 显示屏:显示工作频道、麦克风音量、麦克风信号、电池电量等信息; ② CH按键:用于对频操作,详见本说明书的“对频调节方法”部分; ③ ∧ 按键:点按增加麦克风音量;在对频状态下,点按切换上一个频道,长按快 速跳转频道; ④ ∨ 按键:点按减少麦克风音量;在对频状态下,点按切换下一个频道,长按快 速跳转频道; ⑤ 电源按键:点按开机,长按2秒关机。开机状态下,循环点按开启或关闭“静音” 功能; ⑥ 电池仓:装入两节5号干电池。 麦克风显示屏 ① ② ③...
TS-K201 便携式无线麦克风 ① 电池电量:电池电量有三格,以格数的多少来表示电池电量,电量不足时,电 池符号闪烁; ② 信号符号:麦克风静音时,信号符号消失;取消静音时,信号符号恢复显示; ③ 工作频道/麦克风音量:默认显示当前麦克风工作频道,有“ CH01-CH50 ”共50 个工作频道;当调整麦克风音量时,则显示当前麦克风音量大小,有“U01-U13” 共13级音量; 接收器 ① ④ ⑤ ③ ② ① Φ3.5mm插头:与带有Φ3.5mm的麦克风接口连接,如设备的麦克风接口为 Φ6.3mm规格的,请使用标配的转接头连接; ② 充电指示灯:当使用过程中指示灯闪烁红灯,表示电量不足,需及时充电。充 电时常亮红灯,充满电常亮绿灯。 ③ 工作指示灯:无线配对过程中闪烁蓝灯,配对成功常亮蓝灯; ④ 开关拨钮:拨至“ON”位置时,开启设备;拨至“OFF”位置时,关闭设备; ⑤ Micro USB充电接口:外接电源适配器给接收器充电。也可以边充电边用,边 充电边用时建议用移动电源,可避免电流干扰。 ■ 使用说明 一、麦克风电池安装 逆时针钮开麦克风尾盖,将2节5号干电池按电池仓标明的正负极性安装,注意 电池极性不要装反;然后顺时针旋紧麦克风尾盖;如下图 提示:当麦克风显示屏电量符号闪烁,显示电量不足,请及时更换电池。...
Page 16
Portable wireless microphone ■ Product Dear Customer, Thank you for purchasing TAKSTAR TS-K201 portable wireless microphone. Please read the user manual carefully before operation and keep it for reference in future. If you have any question or suggestion, please contact our local dealer.
Page 17
200mA (max battery charging current) Charging Time: approximate 2h Operation Time: approximate 5h Dimension: 80.5mmX28mmX15.5mm(L X W X H) Net Weight: approximate 22g Note: the above data is obtained from the test of Takstar laboratory, and Takstar has the final interpretation right!
Page 18
TS-K201 Portable wireless microphone ■ Function instruction Microphone ① ⑤ ② ③ ⑥ ④ ① Display: it shows the operation frequency band, mic volume, mic signal, battery power, etc. ② CH button: used for matching operation. refer to the Matching Adjustment section in this user manual.
Page 19
TS-K201 Portable wireless microphone Mic display ① ② ③ ① Battery power: three levels of the battery power to show the battery power. When the battery power is insufficient, the battery symbol flashes. ② Signal symbol: when the mic is muted, it disappears. When the mute is cancelled, it appears.
Page 20
TS-K201 Portable wireless microphone ■ Operation instruction A.Mic battery installation open the cover and load two AA batteries into the battery compartment. Please keep the right polarity, and then close the cover. Refer to the figure below: Note: when the power symbol flashes, this means insufficient power. Please replace battery in time.
Page 21
TS-K201 Portable wireless microphone C. Connecting with cell phone 1. Connect the splitter cable (buy additionally) with Φ3.5mm connector of cell phone. If the cell phone has no Φ3.5mm connector, please use OTG adapter (buy additionally). Refer to the figure below; Connect the receiver with the connector marked with“...
Page 22
TS-K201 Portable wireless microphone D. Connecting with PC 1. If the PC audio connector has dual ports. Connect the receiver with the port marked with “ ”on PC. If PC audio connector is single port. Connect splitter cable (buy additionally) with PC Φ3.5mm connector, and connect the receiver with splitter cable connector marked with“...
Page 23
TS-K201 Portable wireless microphone F. Volume adjustment 1.Press “∧” to increase mic volume and “∨”to decrease the mic volume. “U01 ~ U13”on the display changes accordingly (13 levels adjustable). 2.The volume has memory function. Next time, it starts the volume when you turn off.
Page 24
TS-K201 Portable wireless microphone 2. Changing frequency method ① After matching is successful, turn on the transmitter and receiver. ② Press mic CH button, channel (CHXX)flashes on the display, and it enters into changing frequency status. ③ Press “∧”or“∨”button in 8 seconds to change channel number.
Page 25
TS-K201 Portable wireless microphone 90° Audio source Speaker 90° I. Charging instruction 1.Power bank or adapter can be connected for charging receiver. 2. Turn on the receiver power switch. If the operation LED does not light up, this means it has no power supply. If the LED flashes red, this means insufficient power supply.
Page 26
TS-K201 Portable wireless microphone ■ Trouble shooting Trouble Trouble shooting Too far distance. Put them closer: the effective outdoor Receiver operation range is 25m in open area. The indoor disconnected operation range will be smaller. with transmitter There is interference. Adjust the operation frequency.
Page 27
TS-K201 Portable wireless microphone Put a windscreen on mic. Loud wind noise Do not use the microphone in the windy position or in front of the fan. If the transmitter or receiver has low power, it leads to low noise due to performance reduced. Please charge or replace the battery in time.
Page 28
TS-K201 Portable wireless microphone 5. If this product will not be used for more than one week, take out the battery to avoid damage. 6. The product and accessories should be put in dry and ventilated place rather than humid or dusty environment. Prevent the product from liquid, rain, water, over-colliding, throwing, vibrating, vent hole covered to avoid function destroyed.
Page 29
TS-K201 Portable wireless microphone NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in aresidential installation.
