NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked "*" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.

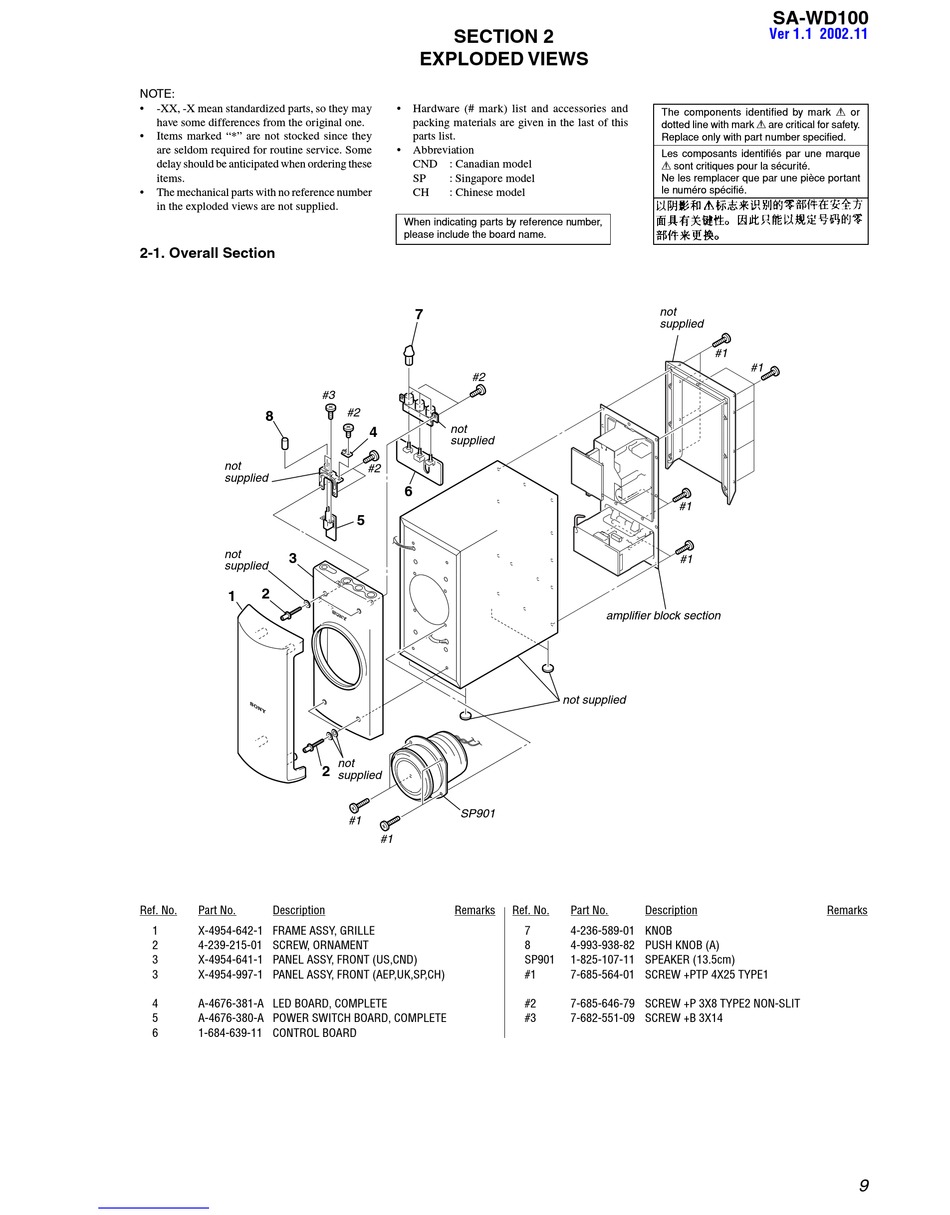

2-1. Overall Section

8
not
supplied
not
3
supplied
2
1
Ref. No. Part No. Description
1 X-4954-642-1 FRAME ASSY, GRILLE
2 4-239-215-01 SCREW, ORNAMENT
3 X-4954-641-1 PANEL ASSY, FRONT (US,CND)
3 X-4954-997-1 PANEL ASSY, FRONT (AEP,UK,SP,CH)
4 A-4676-381-A LED BOARD, COMPLETE
5 A-4676-380-A POWER SWITCH BOARD, COMPLETE
6 1-684-639-11 CONTROL BOARD
SECTION 2
EXPLODED VIEWS
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
CND : Canadian model
SP : Singapore model
CH : Chinese model
When indicating parts by reference number,
please include the board name.
7
#2
#3
#2
not
4
supplied
#2
6
5
not
2
supplied
SP901
#1
#1
Remarks
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
not
supplied
#1
#1
amplifier block section
not supplied
Ref. No. Part No. Description
7 4-236-589-01 KNOB
8 4-993-938-82 PUSH KNOB (A)
SP901 1-825-107-11 SPEAKER (13.5cm)
#1 7-685-564-01 SCREW +PTP 4X25 TYPE1
#2 7-685-646-79 SCREW +P 3X8 TYPE2 NON-SLIT
#3 7-682-551-09 SCREW +B 3X14
SA-WD100
Ver 1.1 2002.11
#1
#1
Remarks
9
