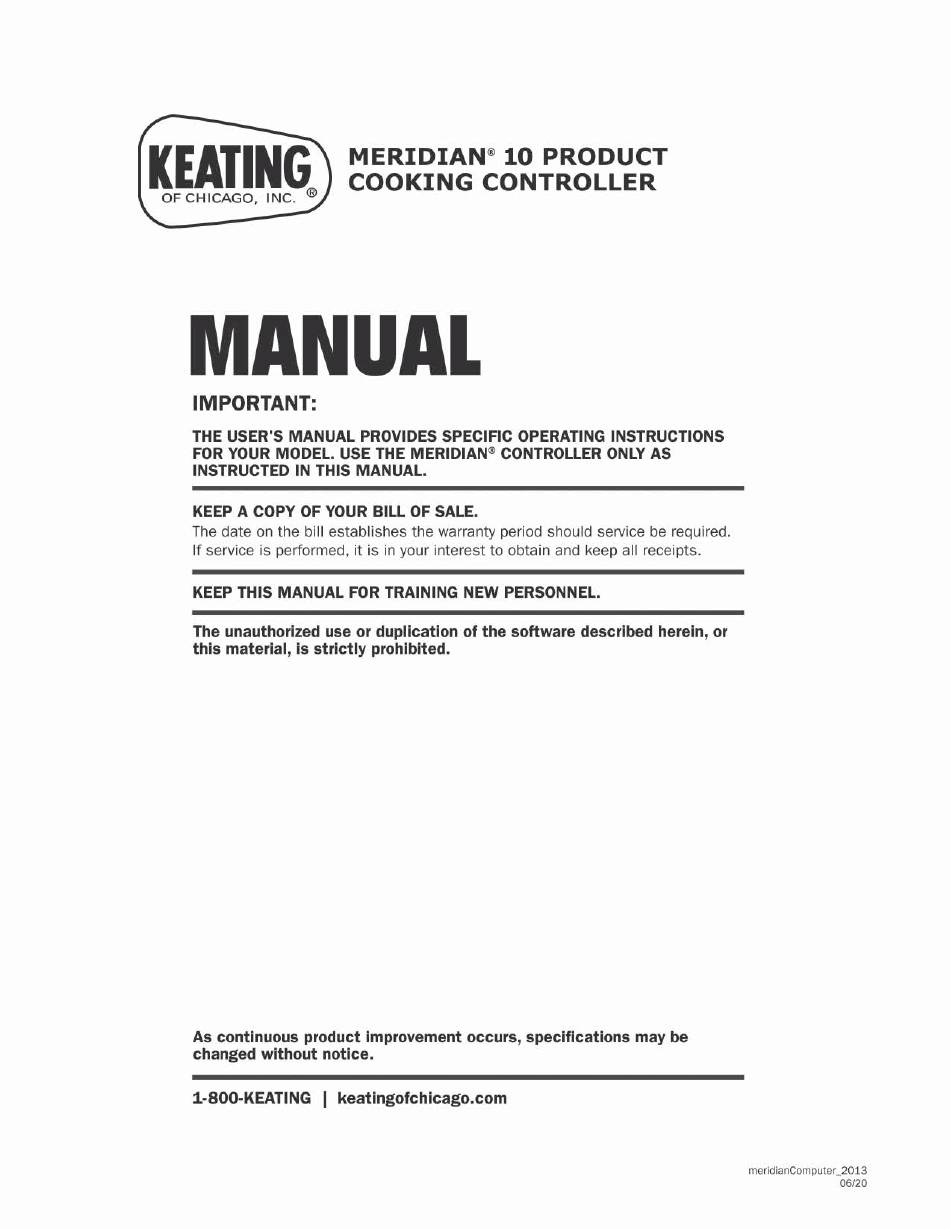

Keating Of Chicago Meridian 10 Manual

Cooking controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Keating Of Chicago Meridian 10

Summary of Contents for Keating Of Chicago Meridian 10

  • Page 2 NOTE: The unauthorized use or duplication of the software described herein, or this material, is strictly prohibited. WARNING Burns Shock Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.

  • Page 3: Table Of Contents

    MERIDIAN® CONTROLLER  TABLE OF CONTENTS Important Safety Instructions ..........i PRODUCT KEY PROGRAMMING ........8 SYSTEM PROGRAMMING ..........12 INTRODUCTION .............. 1 INSTALLATION OFFSET PROGRAMMING ..........14 Damage During Shipment ..........1 PROGRAMMING CUSTOM NAMES/ALARMS ....16 Tools Required ..............2 SERVICE DIAGNOSIS ............

  • Page 4: Tools Required

     FIRST STEPS NOTE: Not all features are available on all models. CLEANING THE CONTROLLER INSTALLATION Not all features are available on all models. NOTE: 1. Using a clean damp cloth, wipe down your Tools Required: Straight Screwdriver controller daily. 1.

  • Page 5: Controller Features

    MERIDIAN® CONTROLLER  PROGRAMMABLE PRESSURE VALVE CONTROLLER FEATURES The pressure valve state for each stage on each prod- NOTE: Not all features are available on all models. uct key can be programmed. The valve can be open or closed. AUTOMATIC LEAST HOLD DISPLAY NOTE: The valve is normally open when not cooking.

  • Page 6: Display Descriptions

     DISPLAY DESCRIPTIONS NOTE: Not all features are available on all models. Controller is in Operating Mode. Actual vat temperature is more than 10 degrees below the programmed vat temperature. Controller is in Operating Mode. Actual vat temperature is within the proper cooking temperature range.

  • Page 7: Operating The Controller

    MERIDIAN® CONTROLLER  OPERATING THE CONTROLLER STARTING A COOK CYCLE To start a cook cycle, simply press the product key for the product you wish to cook. If the key is 2:00 programmed, the correct cooking time will be displayed (example: ) and will immediately start DONE to count down in minutes and seconds.
  • Page 8 COUNTS TO ENTER BOIL MODE: Press and hold the P key for 3 seconds. will be displayed. Press: Display: BOIL BOIL Press the up or down arrow keys until is displayed, then press the P key. will be displayed, and boil mode will begin. Press: Display: TO EXIT BOIL MODE: Press ON/OFF to stop Boil Mode.
  • Page 9 MERIDIAN® CONTROLLER prod 1 Press the P key. , will be displayed then the number of cooks that were completed on that key. Display: RESETTING THE PRODUCT COUNTS CLRPROD Once you go through all keys, the display will show then .

  • Page 10: Product Key Programming

    TOTALX10 is displayed, then a number. Press the P key again. Display: Press: TO EXIT PRODUCT COUNTS COUNTS will be displayed. Press the up arrow key. Display: Press: EXIT will be displayed. Press the P key. The controller will exit counts mode. Display: Press: ...
  • Page 11 MERIDIAN® CONTROLLER Type in 1 7 2 4 using the ress the P key. All product Program a Product Key product keys. Press the P key. key LEDS will light up. Press the product key you want to program. Press the P key.
  • Page 12 NOTE: Some models have up to 3 action alarms. On some models, each product key can be programmed up to 10 stages. If no additional stages are required at this point, set the time to zero. Press the P key to continue to Action Alarm. Set Action Alarm Set Action Alarm Name ALMNAME1...
  • Page 13 MERIDIAN® CONTROLLER NOTE: Not all features are available on all models. Press the P key. Either press another product key Press the P key. to program and repeat the programming instructions, or exit by pressing the up arrow key. Press the up arrow key. Press the P key.

  • Page 14: System Programming

     SYSTEM PROGRAMMING SYSTEM 3228 - STORE MANAGER Enter System Programming Mode Press and hold the P key Press the down arrow key. Press the P key. for 3 seconds. Type in 3 2 2 8 using the product Press the P key. Set Appliance Mode keys.
  • Page 15 MERIDIAN® CONTROLLER Set the Control Type Set Temperature Scale Set Preheat Mode Use the left and/or right Use the left and/or right Use the left and/or right arrow keys to choose arrow keys to choose arrow keys to choose Temperature or Time Fahrenheit (F) or Celsius (C).

  • Page 16: Offset Programming

     OFFSET PROGRAMMING NOTE: Offset Temperature can be set from 20 to -20F (-6.6 to -28.8C). SYSTEM 3228 - STORE MANAGER Enter Offset Programming Mode Press and hold the P key Press the down arrow key. Press the P key. for 3 seconds.
  • Page 17 MERIDIAN® CONTROLLER Use the product keys to Press the down arrow key enter a new offset temperature. two times. Press the P key. To change from negative to positive use the left and right arrow keys. Press the P key. Press the P key.

  • Page 18: Programming Custom Names/Alarms

     PROGRAMMING CUSTOM PRODUCT and ACTION ALARM NAMES TO LIBRARY SYSTEM 3228 - STORE MANAGER Enter Library Programming Mode Press and hold the P key Press the down arrow key. Press the P key. for 3 seconds. PRODLiBR Type in 3 2 2 8 using the product Press the down arrow key Choose either PRODLiBR...
  • Page 19 MERIDIAN® CONTROLLER A fl ashing dash will be Continue spelling the TO SAVE WORD, press the displayed. Press the SCAN word. When done, press P key again. To modify or key and use the product the P key. cancel, see next step. keys to spell a new word.
  • Page 20 Press the P key. Press the up arrow key Press the P key. 2 times. keatingofchicago.com...

  • Page 21: Service Diagnosis

    WARRANTY STATEMENT Keating’s warranty begins with the date of installation. Keating of Chicago, Inc. provides a limited one-year war- ranty for its products (except probes and hoses for which the period is 90 days). A copy of the exact provisions of this warranty and the other terms and conditions of sale are available upon request.
  • Page 23 CUSTOM PASTA FILTER SYSTEM TOP-SIDE COOKER HOTPLATE I HAVE READ THE INSTALLATION AND OPERATING INSTRUCTIONS. SIGNED: DATE: KEATING OF CHICAGO, INC. 1-800-KEATING 8901 West 50th Street PHONE: 708-246-3000 McCook, IL 60525-6001 FAX: 708-246-3100 Serving Those Who Serve the Very Best...
