Viking Professional VUIM150T Specification Sheet

Standard Features & Accessories
Model includes
• Bin capacity—35 lbs.
• Agency-certified for outdoor use
Insulated electrical terminals, sealed
o
electrical contacts, and water-
resistant thermostat
Permanently lubricated sealed
o
compressor and pump ensure long
life and professional performance
• Heavy-duty commercial-type
construction, design, and styling
Stainless steel exterior cabinet
o
surrounds unit and forms a water-
resistant seal
Model Options
FINISH DETAILS
• Stainless Steel (SS)
• Brass Trim Option (BR)—nameplate and
handle/brackets. Brass components
have a durable protective coating for
maintenance-free normal use.
ORDERING INSTRUCTIONS
First specify model number, followed by hinge preference ("R" for right or "L" for left)—(VUIM150TRSS). If ordering optional brass trim,
specify code at end (VUIM150TRSSBR).
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M
OUTDOOR—REFRIGERATION

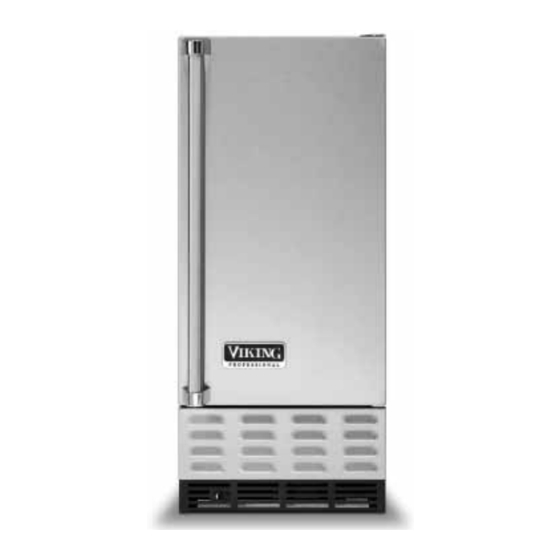

Undercounter/Freestanding 15"W. Ice Machine
Stainless steel kickplate
o
o Stainless steel-covered ice bin front
• 3/4" cube thickness
• Produces up to 35 lbs. of ice per day
• Operating range between 45ºF (7.2ºC)
and 110ºF (43ºC)
• Heavy-duty ice scoop included
• Stainless steel ice cutter
• Draining process automatically
removes old ice to ensure a constant
supply of fresh ice
• Equipped with cleaning mode
• Adjustable leveling legs
VUIM150T
Outdoor Ice Machine
• 1 - 8 8 8 - V I K I N G 1
• Install as undercounter or freestanding
unit
• Can be installed in existing cutouts
with little or no cabinetry alterations
• Must be ordered right or left hinge
(As you face unit, RIGHT has hinge on
right side and handle on left side; LEFT
has hinge on left side and handle on
right side)
R E L E A S E D 1 2 / 1 / 0 7
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
