Viking VDSC Specification Sheet

Professional Freestanding Dual Fuel Self-Clean 48"W.
Standard Features & Accessories
All models include
• Right oven—large self-cleaning
convection oven
o Overall capacity—4.0 cu. ft.
(23"W. x 16-1/8"H. x 18-3/4"D.)
o AHAM Standard capacity—3.3 cu. ft.
(23"W. x 16-1/8"H. x 15-3/8"D.)
o Eight functions: two-element bake,
convection bake, Mini-Broil, Maxi-
Broil, convection broil, TruConvec™
convection cooking (element around
fan), convection dehydrate, and
convection defrost
o Three heavy-duty racks/six rack
positions
o Two lights
• Left oven—self-cleaning oven
o Overall capacity—2.1 cu. ft.
(12-1/8"W. x 16-1/8"H. x 18-3/4"D.)
o AHAM Standard capacity—2.0 cu. ft.
(12-1/8"W. x 16-1/8"H. x 17-1/4"D.)

Model Options

VDSC487-6G*
Six-Burner/Griddle Range
FINISH DETAILS FOR ALL MODELS
• Stainless Steel (SS), Black (BK), White
(WH), Metallic Silver (MS), Graphite Gray
(GG), Stone Gray (SG), Taupe (TP), Biscuit
(BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE),
Sage (SA), Mint Julep (MJ), Sea Glass
(SE), Iridescent Blue (IB), Viking Blue (VB),
Pumpkin (PM), Racing Red (RR), Apple
Red (AR), Burgundy (BU), Plum (PL),
Chocolate (CH), and Cobalt Blue (CB).
o Finish designates door front, lower
front panel, and side panels.
*Shown throughout with 6"H. backguard. See Installation Notes & Accessories for details.
ORDERING INSTRUCTIONS
First specify model number, and then color code (VDSC487-6GSS). If ordering optional brass trim, specify code at end (VDSC487-6GSSBR).
If ordering optional LP conversion, specify code at end (VDSC487-6GSSBRLP).
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M
o Three functions: two-element bake,
broil, proof (separate low-wattage
element)
o Two heavy-duty racks/six rack positions
o One light
• Exclusive VSH™ Pro Sealed Burner
System (VariSimmer™ to High)—
combination of patented burner and
top design provide cleanability plus
superior performance at simmer and
high
• Exclusive VariSimmer™ setting for all
burners
• Exclusive one-piece tooled and
porcelainized cooking surface contains
spills for easy cleaning
• Drip tray with roller bearing glides and
two-quart drip pan
6G models include
• Six 15,000 BTU brass sealed burners

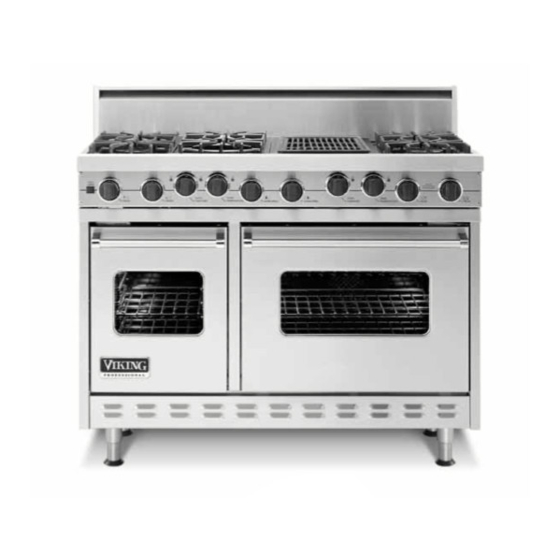

VDSC487-6Q*
Six-Burner/Grill Range
o Has black porcelain grates, black
porcelain burner caps, black
porcelain grate supports/burner
bowls, and black knobs/switches.
• White (WH)
o Finish designates door front, lower
front panel, side panels, porcelain
grate supports/burner bowls,
porcelain center worktop, and
knobs/switches.
o Has black porcelain grates and black
porcelain burner caps.
• 1 - 8 8 8 - V I K I N G 1
COOKING
Sealed Burner Range
with porcelain/cast iron caps and
automatic ignition/re-ignition
• 12"W. thermostatically controlled steel
griddle/simmer plate
6Q models include
• Six 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition
• 12"W. grill with flavor generator
plates and automatic ignition/
re-ignition
4G models include
• Four 15,000 BTU brass sealed burners
with porcelain/cast iron caps and
automatic ignition/re-ignition
• 24"W. thermostatically controlled steel
griddle/simmer plate (separate burner/
control for the left and right side)
VDSC487-4G*
Four-Burner/Double Griddle Range
• All finishes have stainless steel
handle/chrome-plated brackets and
stainless steel drip tray pull, control
panel, and landing ledge.
• Brass Trim Option (BR)—nameplate,
window trim, handle, drip tray pull,
knob bezels, thermal-convection switch
bezel, and grate support side trim.
Brass components have a durable
protective coating for maintenance-
free normal use.
© 2 0 0 7 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E
R E L E A S E D 1 2 / 1 / 0 7
