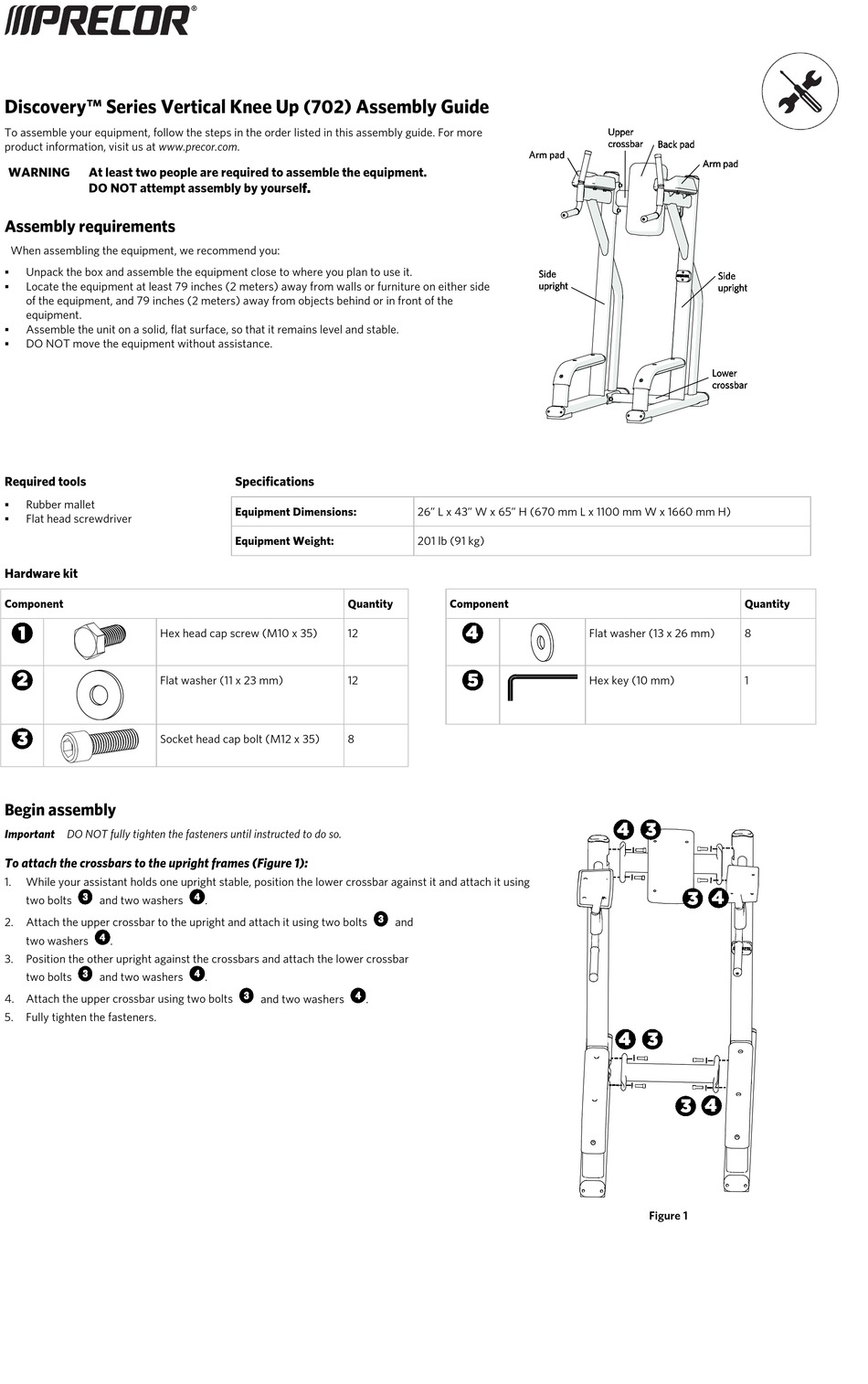

Discovery™ Series Vertical Knee Up (702) Assembly Guide
To assemble your equipment, follow the steps in the order listed in this assembly guide. For more
product information, visit us at www.precor.com.
WARNING At least two people are required to assemble the equipment.
DO NOT attempt assembly by yourself.
Assembly requirements
When assembling the equipment, we recommend you:
Unpack the box and assemble the equipment close to where you plan to use it.

Locate the equipment at least 79 inches (2 meters) away from walls or furniture on either side

of the equipment, and 79 inches (2 meters) away from objects behind or in front of the
equipment.
Assemble the unit on a solid, flat surface, so that it remains level and stable.

DO NOT move the equipment without assistance.

Required tools
Rubber mallet

Flat head screwdriver

Hardware kit
Component
Hex head cap screw (M10 x 35)
Flat washer (11 x 23 mm)
Socket head cap bolt (M12 x 35)
Begin assembly
Important DO NOT fully tighten the fasteners until instructed to do so.
To attach the crossbars to the upright frames (Figure 1):
1. While your assistant holds one upright stable, position the lower crossbar against it and attach it using
two bolts and two washers
2. Attach the upper crossbar to the upright and attach it using two bolts
two washers .
3. Position the other upright against the crossbars and attach the lower crossbar
two bolts and two washers
4. Attach the upper crossbar using two bolts
5. Fully tighten the fasteners.
Specifications
Equipment Dimensions:
Equipment Weight:
Quantity
12
12
8
.
.
and two washers .
26" L x 43" W x 65" H (670 mm L x 1100 mm W x 1660 mm H)
201 lb (91 kg)
Component
and
Quantity
Flat washer (13 x 26 mm) 8
Hex key (10 mm) 1
Figure 1
