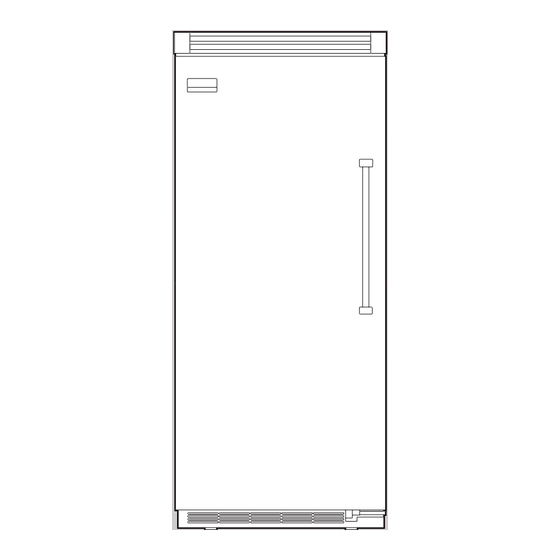

Viking VCFB304 Installation Manual
Hide thumbs
Also See for VCFB304:
- Service notebook (48 pages) ,
- Installation manual (32 pages) ,
- Brochure & specs (64 pages)
Related Manuals for Viking VCFB304
Summary of Contents for Viking VCFB304
- Page 1 Viking Installation Guide All Refrigerator/Freezer 111 Front Street Greenwood, Mississippi 38930 USA...
-
Page 2: Table Of Contents
Table of Contents Warnings & Important Information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4 Professional Dimensions (30”... - Page 3 IMPORTANT– Please Read and Follow! • Make sure that incoming voltage is the same Your safety and the safety of others is as unit rating. An electric rating plate very important. specifying voltage, frequency, wattage, amperage, and phase is attached to the We have provided many important safety product.
-
Page 4: Dimensions (30" And 36")
Dimensions (Professional All Refrigerator/Freezer) 30” Professional 3 – 1 9 / 3 2 ” ( 9 . 1 c m 36” Professional 3 – 1 9 / 3 2 ” ( 9 . 1 c m 2 9 – 1 / 2 4 ”... -
Page 5: Specifications (30" And 36")
Specifications (Professional All Refrigerator/Freezer) 30” All Refrigerator/Freezer Description VCFB304 VCRB304 Overall Width 30” (76.2 cm) Min. 82 3/4” (210.2 cm) to Max. 84 1/16” (213.5 cm) Overall Height from Bottom Overall Depth from Rear To front edge of side trim: 22 3/16”... -
Page 6: Cutout Dimensions (30")
Cutout Dimensions (Professional All Refrigerator/Freezer) 30” Professional Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” ( 2 2 . 9 c m ) 9 ” ( 2 2 . 9 c m ) 8 2 –... -
Page 7: Anti-Tip Dimensions (30")
Anti-Tip Dimensions (Professional All Refrigerator/Freezer) 30” Professional Anti-Tip Location 7 9 – 3 / 8 ” 3 ” ( 2 0 1 . 6 c m ( 7 . 6 c ) m i n t o b o t t o m a n t i - t i p b o a r d... -
Page 8: Cutout Dimensions (36")
Cutout Dimensions (Professional All Refrigerator/Freezer) 36” Professional Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” ( 2 2 . 9 c m ) 9 ” ( 2 2 . 9 c m ) 8 2 –... -
Page 9: Anti-Tip Dimensions (36")
Anti-Tip Dimensions (Professional All Refrigerator/Freezer) 36” Professional Anti-Tip Location 7 9 – 3 3 ” / 8 ” ( 2 0 1 . 6 c m ( 7 . 6 c ) m i n t o b o t t o m a n t i - t i p b o a r d... -
Page 10: Dimensions (Dual 30")
Dimensions (Professional All Refrigerator/Freezer) Dual 30” Professional 3 – 1 9 / 3 2 ” ( 9 . 1 c m 2 9 – 1 / 2 ( 7 4 ” . 9 c 2 9 – 4 ” 1 / 2 ( 7 4 –... -
Page 11: Dimensions (Dual 30" And 36")
Dimensions (Professional All Refrigerator/Freezer) Dual 30” and 36” Professional 3 – 1 9 / 3 2 ” ( 9 . 1 c m 2 9 – 1 / 2 ( 7 4 ” . 9 c 3 5 – 1 / 2 4 ”... -
Page 12: Dimensions (Dual 36")
Dimensions (Professional All Refrigerator/Freezer) Dual 36” Professional 3 – 1 9 / 3 2 ” ( 9 . 1 c m 3 5 – 1 / 2 ( 9 0 ” . 2 c 3 5 – 1 / 2 4 ”... -
Page 13: Specifications (Dual)
Specifications (Professional All Refrigerator/Freezer) Dual All Refrigerator/Freezer Description (2) 30” Units (1) 36” & (1) 30” Unit (2) 36” Units Overall Width 60” (152.4 cm) 66” (167.6 cm) 72” (182.9 cm) Overall Height from Bottom Min. 82 3/4” (210.2 cm) to Max. 84 1/16” (213.5 cm) To front edge of side trim: 22 3/16”... -
Page 14: Cutout Dimensions (Dual 30")
Cutout Dimensions (Professional All Refrigerator/Freezer) Dual 30” Professional Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” 9 ” ( 2 2 . 9 ( 2 2 . 9 c m ) c m ) 8 2 –... -
Page 15: Anti-Tip Dimensions (Dual 30")
Anti-Tip Dimensions (Professional All Refrigerator/Freezer) Dual 30” Professional Anti-Tip Location 7 9 – 3 / 8 ” ( 2 0 1 . 6 c m ) m i n t o b o t t o m a n t i - t i p b o a r d 8 0 –... -
Page 16: Cutout Dimensions (Dual 30" And 36")
Cutout Dimensions (Professional All Refrigerator/Freezer) Dual 30” and 36” Professional Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” 9 ” ( 2 2 . 9 ( 2 2 . 9 c m ) c m ) 8 2 –... -
Page 17: Cutout Dimensions (Dual 30" And 36")
Anti-Tip Dimensions (Professional All Refrigerator/Freezer) Dual 30” and 36” Professional Anti-Tip Location 7 9 – 3 / 8 ” ( 2 0 1 . 6 c m ) m i n t o b o t t o m a n t i - t i p b o a r d 8 0 –... -
Page 18: Cutout Dimensions (Dual 36")
Cutout Dimensions (Professional All Refrigerator/Freezer) Dual 36” Professional Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” 9 ” ( 2 2 . 9 ( 2 2 . 9 c m ) c m ) 8 2 –... -
Page 19: Anti-Tip Dimensions (Dual 36")
Anti-Tip Dimensions (Professional All Refrigerator/Freezer) Dual 36” Professional Anti-Tip Location 7 9 – 3 / 8 ” ( 2 0 1 . 6 c m t o b o ) m i n t t o m a n t i - t i p b o a r d 8 0 –... -
Page 20: Cabinet Information
Cabinet Information (Professional) Professional models fit “semi-flush” in standard 24” (61.0 cm) deep cabinet openings. The door face protrudes 2-1/2” (6.4 cm) from the cabinet face. The handle protrudes an additional 2-1/2” (6.4 cm) into the room. Top View Wall 1–13/16”... - Page 21 Cabinet Information (Professional) Professional models fit “semi-flush” in standard 24” (61.0 cm) deep cabinet openings. The door face protrudes 2-1/2” (6.4 cm) from the cabinet face. The handle protrudes an additional 2-1/2” (6.4 cm) into the room. Top View Wall 1–13/16”...
-
Page 22: Dimensions (30"And 36")
Dimensions (Designer All Refrigerator/Freezer) 30” Designer 3 – 1 / 2 ” ( 8 . 9 c m 36” Designer 3 – 1 / 2 ” ( 8 . 9 c m 3 0 ” 4 ” ( 7 6 –... -
Page 23: Specifications (30" And 36")
Specifications (Designer All Refrigerator/Freezer) 30” All Refrigerator/Freezer Description DDFB304 DDRB304 Overall Width 30” (76.2 cm) Overall Height from Bottom Min. 82 3/4” (210.2 cm) to Max. 84 1/16” (213.5 cm) To front edge of side trim: 23 13/16” (60.5 cm) Overall Depth from Rear To front of top grille: 24”... -
Page 24: Cutout Dimensions (30")
Cutout Dimensions (Designer All Refrigerator/Freezer) 30” Designer Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” ( 2 2 . 9 c m ) 9 ” ( 2 2 . 9 c m ) 8 2 –... - Page 25 Anti-Tip Dimensions (Designer All Refrigerator/Freezer) 30” Designer Anti-Tip Location 7 9 – 3 ” / 8 ” 1 1 / 2 ( 2 0 1 . 6 c m ( 3 . 8 c t o b o ) m i n t t o m a n t i - t i p b...
-
Page 26: Cutout Dimensions (36")
Cutout Dimensions (Designer All Refrigerator/Freezer) 36” Designer Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” ( 2 2 . 9 c m ) 9 ” ( 2 2 . 9 c m ) 8 2 –... -
Page 27: Anti-Tip (30")
Anti-Tip Dimensions (Designer All Refrigerator/Freezer) 36” Designer Anti-Tip Location 7 9 – 3 ” 1 1 / 2 / 8 ” ( 2 0 1 . 6 c m ( 3 . 8 c ) m i n t o b o t t o m a n t i - t i p b... -
Page 28: Dimensions (Dual 30")
Dimensions (Designer All Refrigerator/Freezer) Dual 30” Designer 3 – 1 / 2 ” ( 8 . 9 c m 3 0 ” ( 7 6 . 2 c 3 0 ” 4 ” – 3 / ( 7 6 . 2 c ( 5 2 1 ”... -
Page 29: Dimensions (Dual 30" And 36")
Dimensions (Designer All Refrigerator/Freezer) Dual 30” and 36” Designer 3 – 1 / 2 ” ( 8 . 9 c m 3 0 ” ( 7 6 . 2 c 3 6 ” ( 9 1 . 5 c 1 ” ( 2 . -
Page 30: Dimensions (Dual 36")
Dimensions (Designer All Refrigerator/Freezer) Dual 36” Designer 3 – 1 / 2 ” ( 8 . 9 c m 3 6 ” ( 9 1 . 4 c 3 6 ” / 4 ” ( 9 1 . 4 c –... -
Page 31: Specifications (Dual)
Specifications (Designer All Refrigerator/Freezer) Dual All Refrigerator/Freezer Description (2) 30” Units (1) 36” & (1) 30” Unit (2) 36” Units Overall Width 60” (152.4 cm) 66” (167.6 cm) 72” (182.9 cm) Overall Height from Bottom Min. 82 3/4” (210.2 cm) to Max. 84 1/16” (213.5 cm) To front edge of side trim: 23 13/16”... -
Page 32: Cutout Dimensions (Dual 30")
Cutout Dimensions (Designer All Refrigerator/Freezer) Dual 30” Designer Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” 9 ” ( 2 2 . 9 ( 2 2 . 9 c m ) c m ) 8 2 –... -
Page 33: Anti-Tip Dimensions (Dual 30")
Anti-Tip Dimensions (Designer All Refrigerator/Freezer) Dual 30” Designer Anti-Tip Location 7 9 – 3 / 8 ” ( 2 0 1 . 6 c m t o b o ) m i n t t o m a n t i - t i p b o a r d 8 0 –... -
Page 34: Cutout Dimensions (Dual 30" And 36")
Cutout Dimensions (Designer All Refrigerator/Freezer) Dual 30” and 36” Designer Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” 9 ” ( 2 2 . 9 ( 2 2 . 9 c m ) c m ) 8 2 –... -
Page 35: Anti-Tip Dimensions (Dual 30" And 36")
Anti-Tip Dimensions (Designer All Refrigerator/Freezer) Dual 30” and 36” Designer Anti-Tip Location 7 9 – 3 / 8 ” ( 2 0 1 . 6 c m t o b o ) m i n t t o m a n t i - t i p b o a r d 8 0 –... -
Page 36: Cutout Dimensions (Dual 36")
Cutout Dimensions (Designer All Refrigerator/Freezer) Dual 36” Designer Electric Outlet Location 6 ” ( 1 5 . 2 c m ) 9 ” 9 ” ( 2 2 . 9 ( 2 2 . 9 c m ) c m ) 8 2 –... -
Page 37: Anti-Tip Dimensions (Dual 36")
Anti-Tip Dimensions (Designer All Refrigerator/Freezer) Dual 36” Designer Anti-Tip Location 7 9 – 3 / 8 ” ( 2 0 1 . 6 c m ) m i n t o b o t t o m a n t i - t i p b o a r d ”... -
Page 38: Cabinet Information
Cabinet Information (Designer) Designer models fit flush in standard 24” (61.0 cm) deep cabinet openings with no protrusion into the room except 2”(5.1 cm) curved handle depth. Top View Wall 1” (2.5 cm) If standard 25” 25” (63.5 cm) (63.5 cm) standard Countertop cabinet depth... - Page 39 Cabinet Information (Designer) Designer models fit flush in standard 24” (61.0 cm) deep cabinet openings with no protrusion into the room except 2”(5.1 cm) curved handle depth. Top View Overlapping cabinet doors Wall 1” (2.5 cm) If standard 25” (63.5 cm) standard cabinet depth 24-3/4”...
-
Page 40: General Information
General Information Area Requirements ordinances. A 115 volt, 60-Hz, 15 amp, fused, electrical supply is required. It is Verify the following: required that a separate circuit serving only • Unit can fit into residence and can be this appliance be provided. This appliance moved around corners and through is equipped with a power supply cord doorways. - Page 41 2 quarts (1.9 L) of water through the copper tubing • The installation of Viking units with a and into a bucket to remove any particles reverse osmosis system is acceptable in the water line.
-
Page 42: Unpacking & Moving
General Information • Most of the unit’s weight is at the top. TIP OVER HAZARD Extra care is needed when moving the unit Appliance is top heavy and tips easily to prevent tipping. when not completely installed. Keep doors closed until appliance is •... -
Page 43: Installation
Installation Place unit in front of cutout. (Professional) Lift center grille louver up and pull out. (Designer) Pull the center grille louver up Using an 8” magnetic nut driver, remove at an angle and pull out. the two 1/4” screws. Remove grille assembly. -
Page 44: Hinge Adjustment
Hinge Adjustment Front of unit Remove four side screws and remove unit top. Loosen the four hinge screws. Adjust door. Retighten four hinge screws. Replace unit top. Replace four side screws. Wall Wall 2 x 4 2 x 4 Refrigerator Refrigerator Attach one 2x4 to wall stud (refer to dimensions page If needed, depending on cabinet and depth,... - Page 45 Plug in power cord to verify operation. Place unit within 3” of being flush with cabinets. Note: Make sure power switch and showroom switch Note: To avoid cabinet damage, place cardboard are in the “On” Position. between cabinets and unit. When moving unit, do not crimp, kink or crush water supply line.
-
Page 46: Kickplate Installation
Turn on water supply and check for leaks. Lift unit off rollers to desired height and level unit using a 5/16” head wrench. Note: DO NOT use an electric device. Overtightening can cause damage. Screw Wall 2 x 4 Refrigerator Attach positive secure self-tapping bolts to 2x4 Verify that drain pan is installed and aligned. -
Page 47: Door Stop Adjustment
Door Stop Adjustment 120˚ 110˚ 90˚ Open refrigerator door so door stop and shoulder Remove shoulder screw and place in 90Þ or screw are accessible. 120Þ position. Note: Shoulder screw should be in 110Þ door opening position. Final Installation Replace top air grille. Using an 8”magnetic nut driver, replace the two 1/4”... - Page 48 Open door. Display should flash. Press “ACTIVATE CONTROLS” button pad and close door. Note: There is a 6 minute delay before the unit starts.
-
Page 49: Performance Checklist
Performance Checklist Align/square door(s). Verify cabinet size. Verify drain pan is properly installed and Verify electrical supply and water supply there are no leaks in water connection. (if applicable). Install kickplate. Install anti-tip device(s) and verify unit is secure. Remove internal packaging and labels and wipe unit down. -
Page 50: Control Panels
Verify Operations Control Panels All Refrigerator COLDEST HIGH ....TEMP TEMP HIDDEN HIGHER LOWER HIDDEN ALARM DISPLAY ACTIVATE BUTTON TEMP TEMP TEMP BUTTON CONTROLS MAX FRZ DOOR OPEN All Freezer COLDEST HIGH... -
Page 51: Service & Registration
Service & Registration Service & Parts Only authorized replacement parts may be used in performing service on the appliance. Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be referred to a qualified technician. - Page 52 Viking Range Corporation 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-VIKING1 (845-4641) or visit the Viking Web site at www.vikingrange.com (PS0906VR) F20416...
