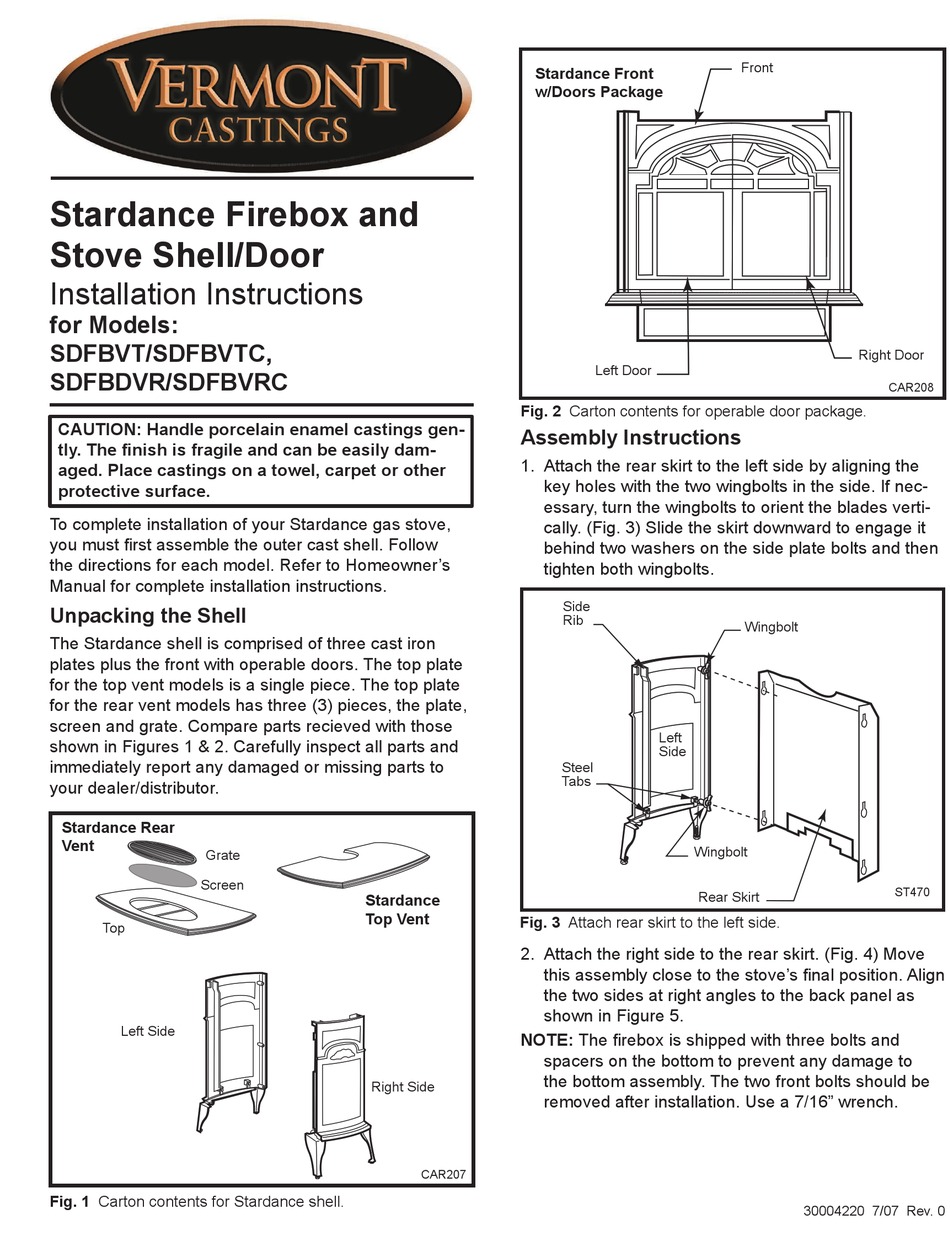

Vermont Castings SDFBVT Installation Instructions

Stardance Firebox and
Stove Shell/Door

Installation Instructions

for Models:
SDFBVT/SDFBVTC,
SDFBDVR/SDFBVRC
CAUTION: Handle porcelain enamel castings gen-
tly. The finish is fragile and can be easily dam-
aged. Place castings on a towel, carpet or other
protective surface.
To complete installation of your Stardance gas stove,
you must first assemble the outer cast shell. Follow
the directions for each model. Refer to Homeowner's
Manual for complete installation instructions.
Unpacking the Shell
The Stardance shell is comprised of three cast iron
plates plus the front with operable doors. The top plate
for the top vent models is a single piece. The top plate
for the rear vent models has three (3) pieces, the plate,
screen and grate. Compare parts recieved with those
shown in Figures 1 & 2. Carefully inspect all parts and
immediately report any damaged or missing parts to
your dealer/distributor.
Stardance Rear
Vent
Grate
Screen
Top
Left Side
Fig. 1 Carton contents for Stardance shell.
Stardance
Top Vent
Right Side
������
Stardance Front
w/Doors Package
Left Door
Fig. 2 Carton contents for operable door package.

Assembly Instructions

CAR208
1. Attach the rear skirt to the left side by aligning the
key holes with the two wingbolts in the side. If nec-
Stardance
essary, turn the wingbolts to orient the blades verti-
cally. (Fig. 3) Slide the skirt downward to engage it
front options
behind two washers on the side plate bolts and then
6/07
tighten both wingbolts.
Side
Rib
Steel
Tabs
Fig. 3 Attach rear skirt to the left side.
2. Attach the right side to the rear skirt. (Fig. 4) Move
this assembly close to the stove's final position. Align
the two sides at right angles to the back panel as
shown in Figure 5.
NOTE: The firebox is shipped with three bolts and
spacers on the bottom to prevent any damage to
the bottom assembly. The two front bolts should be
removed after installation. Use a 7/16" wrench.
CAR207
Front
Wingbolt
Left
Side
Wingbolt
Rear Skirt
ST470
Stardance
shell assy
9/28/00
30004220 7/07 Rev. 0
Right Door
CAR208
ST470
