EnGenius ENS202EXT Quick Installation Manual

Package content
Unpack the box and verify the content:
- ENS202EXT
- PoE injector
- Power adapter
- Quick Start Guide
- Wall mount screw set
- 2* Pole mounting strap
Minimum requirements
- Broadband Internet Service (cable or DSL modem)
- Internet browser (Internet Explorer, Safari, Firefox, Chrome)

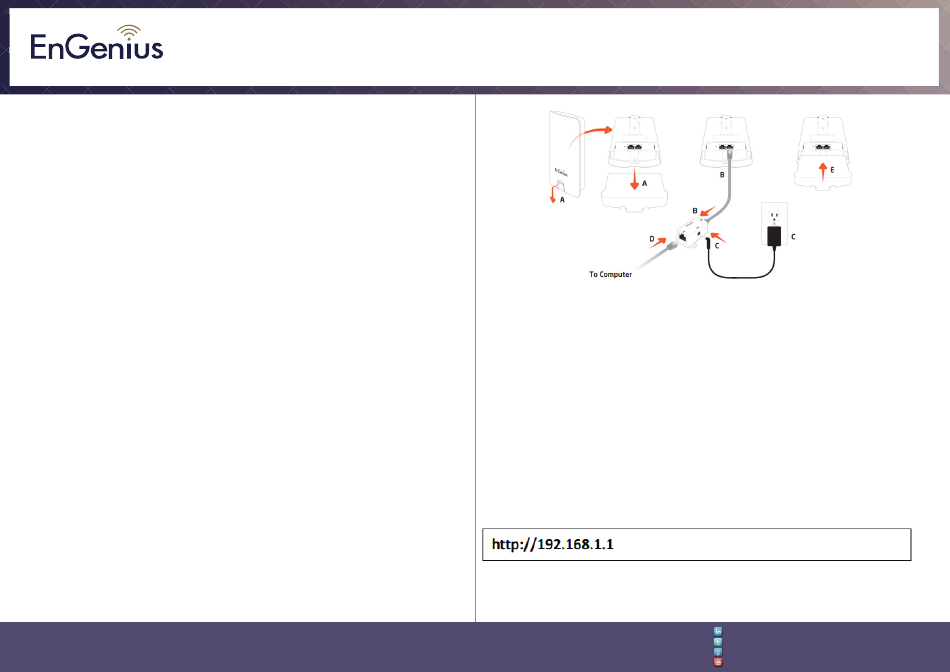

Connecting the ENS202EXT
1. Remove the rear bottom panel.
2. Connect one end of the Ethernet cable into the LAN(PoE) port of the
ENS202EXT and the other end to the PoE Ethernet port on the PoE injector.
3. Connect the power adapter to the DC-IN port of the ENS202EXT and plug
the other end into an electrical outlet.
4. Connect the second Ethernet cable into the LAN port of the PoE injector and
the other end to the Ethernet port on the computer.
5. Place the panel removed from step 1 back into the device.
Note: The ENS202EXT should ONLY be powered via Ethernet cable connected
to the included PoE Injector.
EnGenius Europe | Veldzigt 28, 3454 PW De Meern,
Netherlands | 0900-WIFIABC | www.wifiabc.com
ENS202EXT
Computer setup
1. After ensuring the EnGenius device is powered on and plugged in, ensure
that your computer is on.
2. For the next steps, refer to your 'operating system' user manual.
3. Once your computer is on, ensure that your TCP/IP is set to 'ON' or
'ENABLED'. In the control panel, double click network connections and then
double click on the connection of your Network Interface Card (NIC). Select
Internet Protocol (TCP/IP) and then click on the properties button.
4. If your PC is already on a computer network, ensure that you have set it to a
Static IP adress on the interface (or Ethernet card that will use
the ENS202EXT). Set it as 192.168.1.21 and set the subnet mask-address as
255.255.255.0. Select 'Use the following IP address'-radio button. Once the
computer has been prepared, proceed to setting up the ENS202EXT.
Disclaimer: Information may be subject to changes without prior notification.
Quick Installation Guide
