Summary of Contents for Verbatim Store 'n' Play VM-205
-

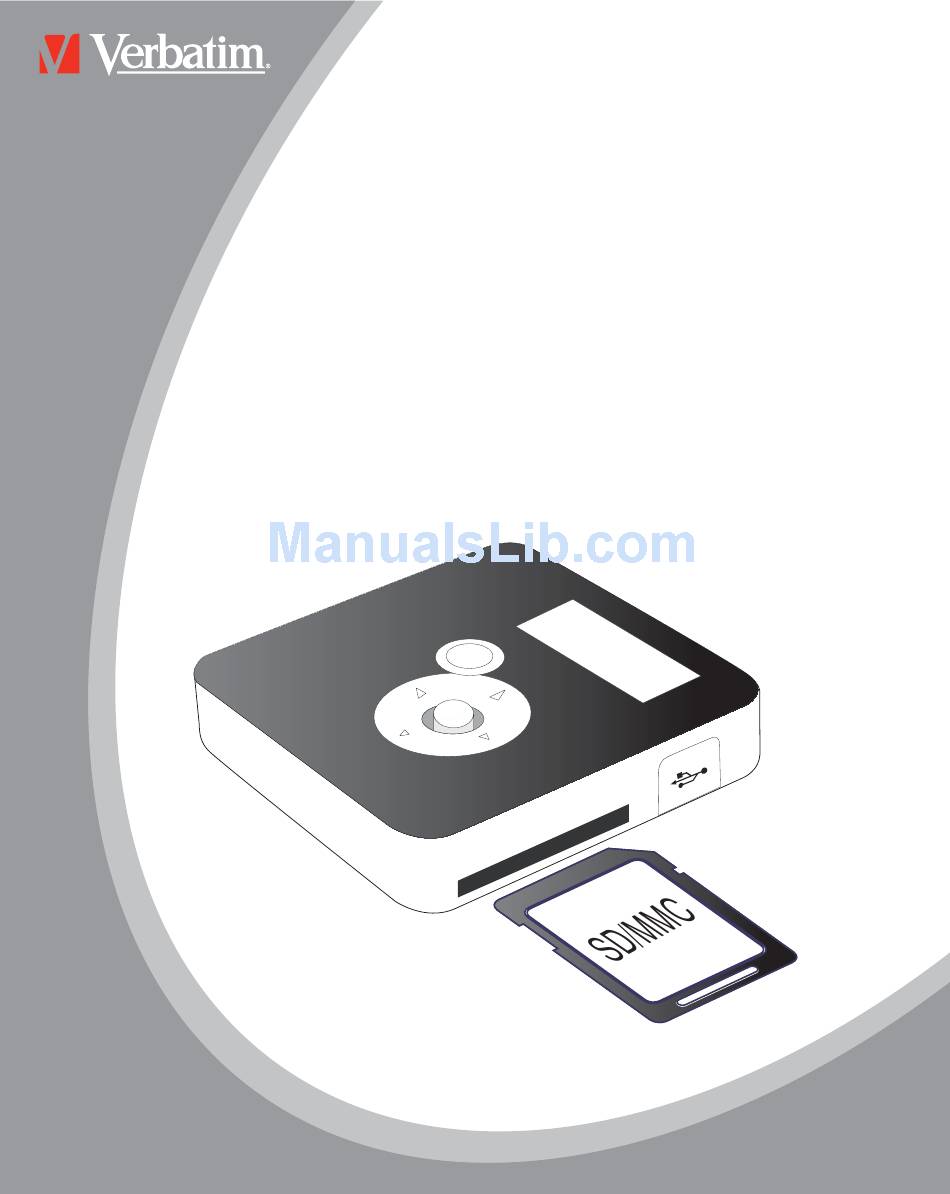

Page 1: Mp3 Player
Store ‘n’ Play MP3 PLAYER USER MANUAL VM205 English... - Page 2 Regulatory Information: Declaration of Conformity Model VM-205 This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Table Of Contents
Contents Handling precaution ... 3 Product features ... 4 Package contents ... 5 Product drawing and function keys..6 Description of LCD display ... 7 Operation instruction ... 8 Operation instructions of function keys ... 9 - Play music ... 9 - Folder Navigation Procedures ... -
Page 4: Handling Precaution
In irreparable cases, please contact Verbatim technical support. Verbatim shall take no liability for damages resulting from battery liquid leakage and resulting damage. -
Page 5: Product Features
Product Features - 256MB on board memory - SD/ MMC slot for additional memory capacity - SD/MMC card capacities up to 4GB - Supports WMA and MP3 fi le formats - Bit rates supported 32kbps - 320kbps constant & variable - Windows Media DRM 9 support - Negative LCD Display with LED back light - ID3 Tag: Song title on display... -
Page 6: Package Contents
Package Contents 1. Store ‘n’ Go MP3 Player VM-205 (x1) 2. Stereo earphones (x1) 3. Mini-USB Cable (x1) 4. AAA Battery (x1) 5. Carry Strap (x1) 6. Quickstart Guide 7. CD Containing Win 98SE driver and User Manuals... -
Page 7: Product Drawing And Function Keys
Product Drawing and Function Keys HO LD... -
Page 8: Description Of Lcd Display
Description of LCD display Repeat All Repeat one A to B Play status Elapse time Hard Icons A to B Repeat one Repeat shuffl e Key lock Battery indicator Song title Sound Level Total time of the song Repeat All Repeat shuffl... -
Page 9: Operation Instruction
MMC/SD card placement Important: Only insert or remover the card when the player is turned off, otherwise, the data may be damaged. Verbatim will not be resposible for data lost or card damage. Place & push your MMC/SD card in this direction until you hear a click sound. -
Page 10: Operation Instructions Of Function Keys
Operation instructions of function keys Short press-----press the key for less than one second Long press-----press the key for more than one second Under Stop mode Menu Long Power off Press Enter the Short setting Press mode In stop mode, there is an icon“ ” in front of the song name in the display. Play music Short press “Play”... -
Page 11: Folder Navigation Procedures
Folder Navigation Procedures Go to the menu by pressing “menu” key. In the menu, select the “Folder” item by pressing the “Play” key. Folder At Folder Navigation Press “Up” or “Down” key to browse the folder name. Press “Play” key to select the folder you want to browse. -
Page 12: Pause Mode
Pause mode Play mode Stop mode Play mode Lyric mode After long pressing “Menu” key to enter “setting mode”, short press “Left” / “Right” key to select “Lyric mode” to display lyric. To go back to Play menu, long pressing “Menu” again to enter the lyric mode, and select “No”... -
Page 13: Connected To The Computer
Connecting to the computer Computer system requirement 1. Microsoft Windows 98SE/Me/2000/XP 2. CD-ROM drive 3. Pentium CPU above 233MHz 4. With RAM memory above 32MB (if the operating system is Windows XP, the RAM should be above 64MB) 5. Hard disk space should be above 20MB 6. -
Page 14: Usb Connection
This player is a mass storage device. It does not need driver installation for PC connection. However for Windows 98SE OS, it needs to install the driver. Obtain the Windows 98SE driver from the following websites: www.verbatim-europe.com or www.verbatim.com Important: Please power on the unit before connecting to PC. -
Page 15: Introduction To Basic Functions
Introduction to basic functions Power on/off Power on A SD/MMC card has to be inserted into the device before long pressing”Menu” key to start it. When powered on, it enters “Play mode”. Please preload song to the card fi rst. no.of song Total no. -
Page 16: System Setting
System setting Play function setting Various settings are available under stop, play/pause mode. Under the STOP status, short press “Menu” key to enter menu, including Memory, EQ, Repeat, Lyric, Contrast, Power off, Backlight, Upgrade OS and Version etc. Under play/ pause mode, press “Menu” key to enter menu settings. Short press “Menu”... -
Page 17: Contrast Setting
The battery should be replaced to make it resume the normal status. Upgrade OS For detailed instructions, please refer to the webpage www.verbatim.com Version It indicates the version of the fi rmware of the device. You can check this version for customer service purpose or check new version no. -
Page 18: Firmware Upgrade
Firmware upgrade Firmware upgrade fi le and upgrade procedures are available from the below websites: www.verbatim-europe.com www.verbatim.com You are recommended to check the availability of new fi rmware release version to perform upgrade periodically to enhance the performance of the player. -
Page 19: Main Menu Tree Diagram
Main menu tree diagram Main menu display Music Folder Memory Internal memory External card EQ mode Repeat setting Normal Repeat one Repeat all Repeat Shuffle Lyric setting Contrast setting 0 - 6 Power off setting Backlight setting Always On Upgrade OS Upgrade Cancel Version... -
Page 20: Trouble Shooting
Trouble Shooting The device does not work or LCD does not work. 1) Check if there is enough battery power. 2) Check if the polarities of battery are correct. The device does not respond to key press 1) Check if it is in the status of “Key lock” 2) If it is in “Key lock”, all the keys can not work. - Page 21 The song skips or does not play at all, but the song title shows. What is the cause? There are several reasons why a song (fi le) can not play. 1) The fi le may be corrupted when it was converted from the CD or when it was copied over to the player during the transfer process.
-
Page 22: Specifi Cation
Specifi cations Dimensions (L x W x D) Weight Internal memory capacity Power supply PC interface Play formats Supported bit rate Battery life Signal-to-noise ratio SNR Frequency response (-3dB) Total harmonic distortion THD Channel separation Earphone output EQ mode Compliance Operating temperature Storage temperature Relative humidity... -
Page 23: Technical Support & Warranty
WARRANTIES OR OTHERWISE. This warranty gives you specifi c legal rights and you may also have other rights which vary from state to state or country to country. NOTE: Verbatim Corporation may at any time revise the content of this user guide without further notice.
