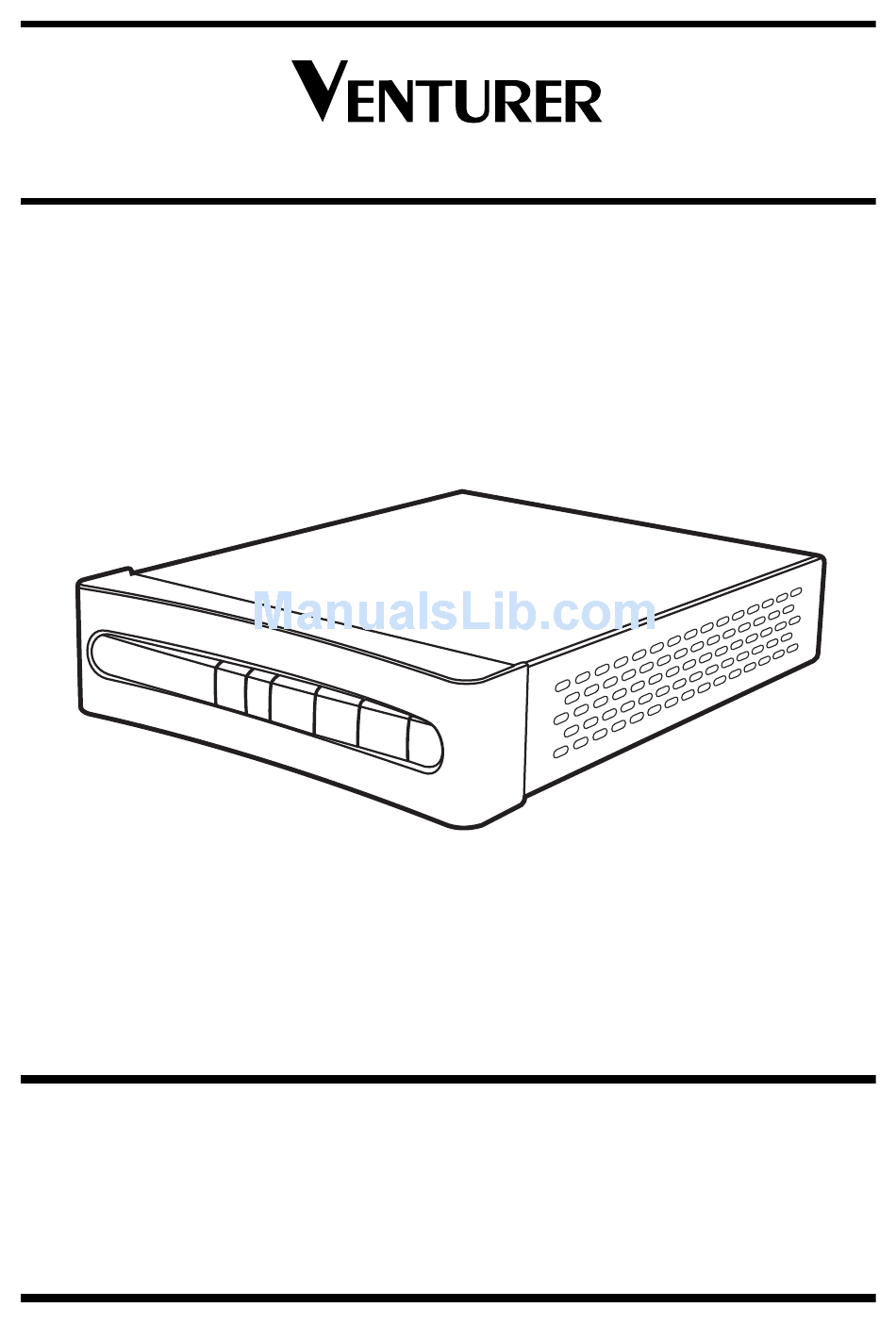

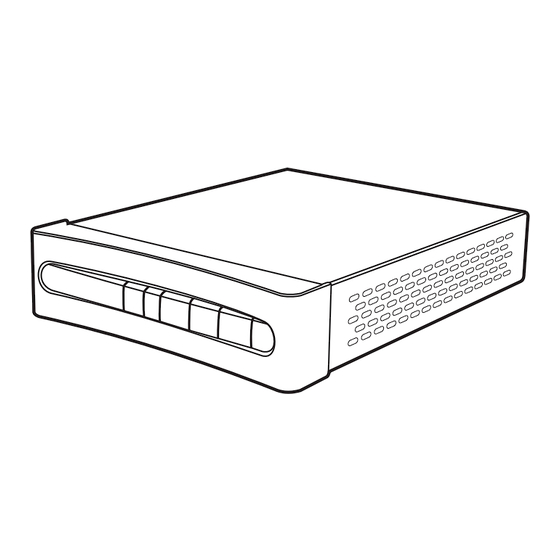

- Page 1 STB7766G1 ATSC Converter Box Instruction Manual Need More Help? DO NOT RETURN THIS PRODUCT TO THE STORE Please visit online help at http//www.venturer.com - 23 -...
-
Page 2: Ac Adapter
SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO NOT PLACE OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS UNIT. -
Page 3: Aaa Batteries (For Remote Control)
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 4: Table Of Contents
AC Adapter ... x 1 Remote Control ... x 1 AAA Batteries (for Remote Control) ... x 2 RF Cable ... x 1 Safety Precautions ... 1 Important Safety Instructions ... 2 Accessories ... 3 Contents ... 3 Remote Control ... 4 Quick Start Guide ... -
Page 5: Remote Control
• Point the remote control at the REMOTE SENSOR located on the unit. • When there is a strong ambient light source, the perform ance of the infrared REMOTE SENSOR may be degraded, causing unreliable operation. • The recommended effective distance for remote operation is about 16 feet (5 meters). To Install Batteries 1. -
Page 6: Quick Start Guide
QUICK START GUIDE STEP 1: CONNECTIONS When this converter box is powered on, digital signals from the ANTENNA RF IN jack are converted to analog signals and output from the TV RF OUT jack or the VIDEO OUT jack. When this converter box is in standby state, analog RF TV signals pass through the box and output from the TV RF OUT jack. - Page 7 QUICK START GUIDE STEP 2: TURNING ON THE UNIT 1. While the AC adapter is connected and the unit is on standby, power will be consumed and the power indicator is RED. 2. Press the STANDBY/ON button to turn on the unit. The power indicator is GREEN. STEP 3: SETTING THE OSD LANGUAGE 1.
- Page 8 QUICK START GUIDE DISPLAY CONTENTS When receiving a 16:9 digital broadcast signal, STB7766G1 Digital TV Converter will convert the 16:9 picture to fi t a 4:3 TV screen. Enter Aspect Ratio Menu to select among four conversion modes. AUTO MODE (DEFAULT) Displays all programs based on the aspect ratio of the program to 4:3 TV screen.
-
Page 9: Quick Start Guide
QUICK START GUIDE Letter Box Mode The entire 16:9 picture will be displayed on your TV, but there will be unused areas (black bars) along the top and bottom edges of your TV screen. Letter Box SQUEEZED MODE The entire 16:9 picture will be fi lled up your TV display but there will be distorted in the picture. Squeezed USING A 16:9 TV WITH THE DIGITAL TV CONVERTER It is recommended that you use the Squeezed option to obtain the best picture format. -
Page 10: Control Reference Guide
CONTROL REFERENCE GUIDE Remote Control MUTE Button Press to turn off the sound. MENU Button Press to display the on-screen menu or switch back to the previous menu screen. CURSOR ( , , , ) Buttons Use to highlight selections on a menu screen and adjust certain settings. -
Page 11: Control Reference Guide
CONTROL REFERENCE GUIDE Front View Back View Remote Sensor Receives infrared signals from the remote control. CH-/CH+ Buttons Press to select the channel upward or downward. Button Turns the power on or restores the unit to the standby mode. STANDBY/ON Indicator Green: power on Red: standby mode ANTENNA RF IN Terminal... -
Page 12: Connections
When this converter box is powered on, digital signals from the ANTENNA RF IN jack are converted to analog signals and output from the TV RF OUT jack or the VIDEO OUT jack. When this converter box is in standby state, analog RF TV signals pass through the box and output from the TV RF OUT jack. -
Page 13: Power Supply
Using the AC Adapter The supplied 9V adapter operates on AC 120V ~ 60Hz. While the AC adapter is connected and the unit is on standby, power will be consumed and the power indicator is RED. Cautions: • The AC adapter included with this unit is for its use only. Do not use it with other equipment. •... -
Page 14: Basic Operation
Searching for Channels Automatically 1. Press the MENU button on the remote control. 2. Use the buttons to select the CHANNEL menu. 3. Use the button to select Channel Scan and press the ENTER button or the Notes: • The unit MUST be connected to an antenna in order to receive digital TV signals. -
Page 15: On-Screen Menu-Channel
ON-SCREEN MENU - CHANNEL Use the menu confi guration to set detailed options for each function. Press the MENU button on the remote control to open the menu screen. • To return to the previous menu press the MENU button on the remote control. •... -
Page 16: On-Screen Menu-Option
ON-SCREEN MENU - CHANNEL Output Channel You can select NTSC RF output channel. 1. Press the MENU button on the remote control. 2. Use the buttons to select the CHANNEL menu. 3. Use the button to select Output Channel then press the ENTER button or the 4. -
Page 17: Language
ON-SCREEN MENU - OPTION Language 1. Press the MENU button on the remote control. 2. Use the buttons to select the OPTION menu. 3. Use the button to select Language then press the ENTER button or the button. 4. Use the buttons to select English / Español (Spanish) / Français (French). -
Page 18: On-Screen Menu-Option
ON-SCREEN MENU - OPTION DCC View Use this to set the character font. Only DCC (Digital Closed Caption) is set to Custom, DCC View is activated. 1. Press the MENU button on the remote control. 2. Use the buttons to select the OPTION menu. 3. -
Page 19: On-Screen Menu-Lock
ON-SCREEN MENU - LOCK Lock System 1. Press the MENU button on the remote control. 2. Use the buttons to select the LOCK menu. 3. Use the button to position the cursor on the input fi eld and enter password. If you have not specifi... -
Page 20: Tv Rating-Children
ON-SCREEN MENU - LOCK TV Rating-Children TV Rating-Children is for classifying the age level of TV programs for children. 1. Press the MENU button on the remote control. 2. Use the buttons to select the LOCK menu. 3. Use the buttons to select TV Rating-Children then press the ENTER button or the 4. -
Page 21: Movie Rating
ON-SCREEN MENU - LOCK Movie Rating 1. Press the MENU button on the remote control. 2. Use the buttons to select the LOCK menu. 3. Use the buttons to select Movie Rating then press the ENTER button or the 4. Use the buttons to select the rating. -
Page 22: Maintenance
Cleaning the Unit • Be sure to turn the unit off and disconnect the AC adapter before maintaining the unit. • Wipe the unit with a dry soft cloth. If the surfaces are extremely dirty, wipe clean with a cloth that has been dipped in a weak soap-and-water solution and wrung out thoroughly. -
Page 23: Limited Warranty
YOUR UNIT TO VENTURER WITHOUT PRIOR AUTHORIZATION. New or remanufactured replacements for defective parts or products will be used for repairs by Venturer at its designated Service Center for 1 year from the effective warranty date. Such replacement parts or products are warranted for an additional 1 year from the date of repair or replacement.
