Page 1: Surround Sound

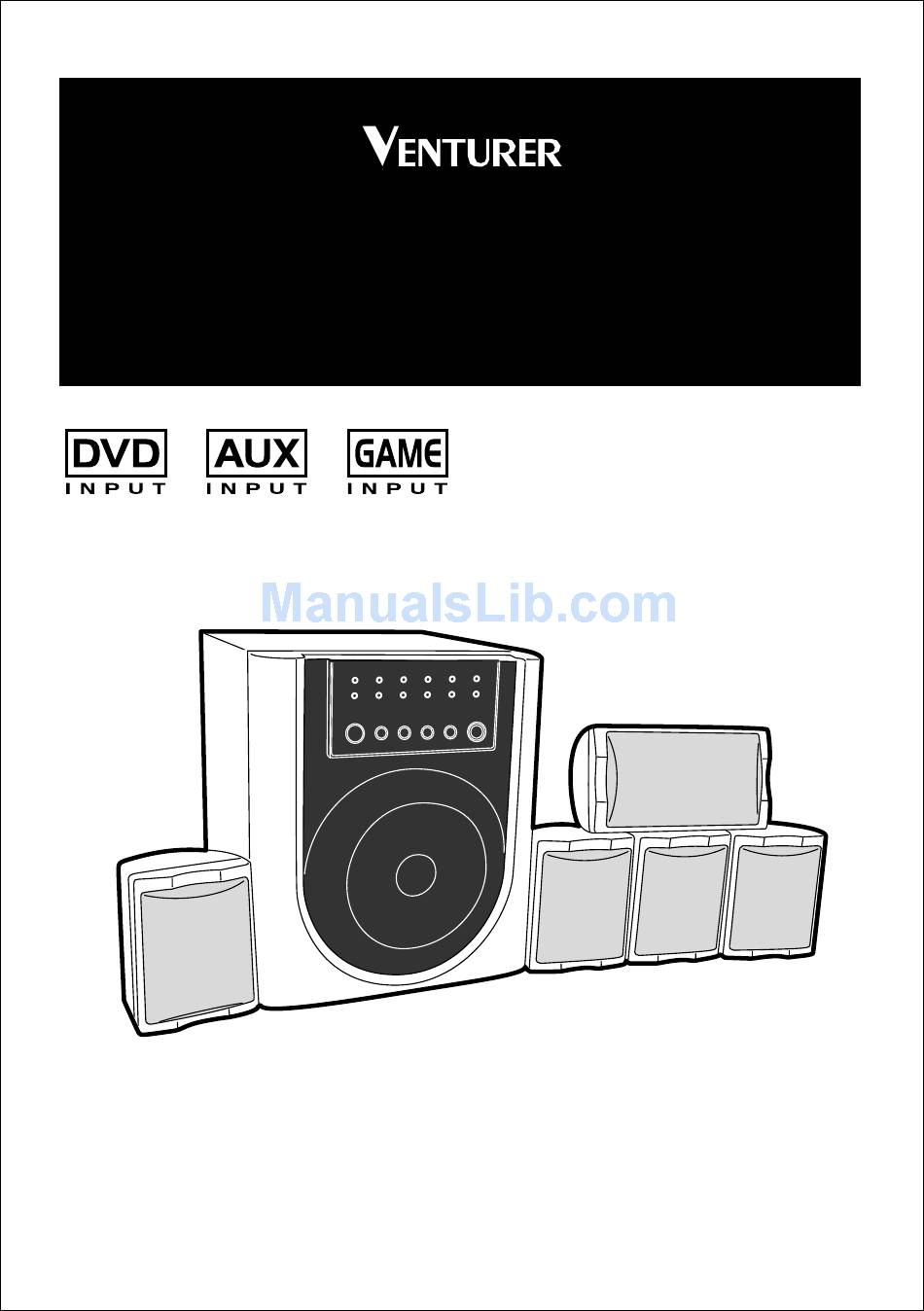

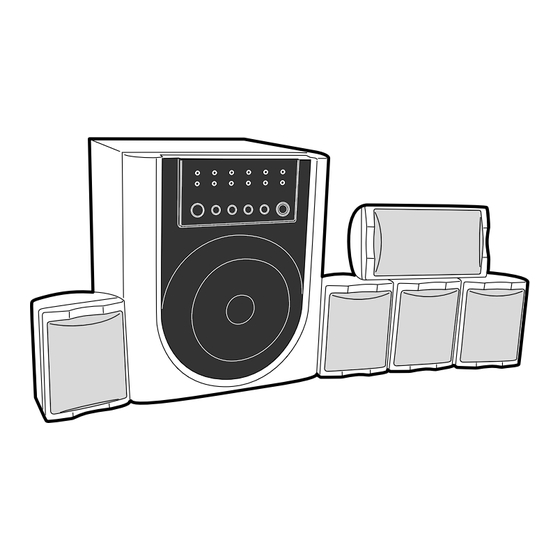

SURROUND SOUND HOME THEATER SYSTEM Instruction Manual Model ASR150 Please read the instruction manual carefully before using your unit. For support visit : www.1800customersupport.com... -
Page 2: Table Of Contents
GENERAL TABLE OF CONTENTS PRECAUTIONS ... 2 IMPORTANT SAFETY INSTRUCTIONS ... 3 FUNCTION CONTROL ... 4 Front Panel ... 4 Back Panel ... 4 Remote Control ... 5 Using the remote control correctly ... 5 To change remote battery ... 5 Battery replacement ... -
Page 3: Precautions
PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read Instructions - All the safety and operating instructions should be read before the appliance is operated. Retain Instructions - The safety and operating instructions should be retained for future reference. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to. Follow Instructions - All operating and use instructions should be followed. -
Page 5: Function Control
FUNCTION CONTROL FRONT PANEL BACK PANEL 1. SPEAKER indicators Lights when the corresponding speaker is active. 2. STANDBY/ON button Turns the unit ON, or puts the unit into STANDBY mode. 3. INPUT SOURCE button Select the sound input source to AUX, GAME or DVD. -
Page 6: Remote Control
FUNCTION CONTROL REMOTE CONTROL USING THE REMOTE CONTROL CORRECTLY • Point the Remote Control at the REMOTE SENSOR located on the unit. • When there is a strong ambient light source, the performance of the infrared REMOTE SENSOR may be degraded, causing unreliable operation. •... -
Page 7: Connections
CONNECTIONS POWER CONNECTION Notes: • Before you plug in the unit, make sure that the rated voltage of your unit matches your local voltage. • Keep your hands dry when you are connecting the power cord to the wall outlet to avoid electric shock. •... -
Page 8: Positioning The Speakers & Subwoofer
CONNECTIONS POSITIONING THE SPEAKERS & SUBWOOFER FRONT SPEAKERS FRONT SPEAKERS Place the front speakers on both sides of the TV, equal distances apart. CENTER SPEAKER Place the center speaker on the top of or below the TV. BUILT-IN SUBWOOFER Place the subwoofer on the floor near the TV or in any corner. REAR SPEAKERS Place the rear speakers on right beside or slightly behind your listening position, and a little higher than your ears. -
Page 9: Connection With Tv
CONNECTIONS IMPORTANT : Switch off the power before connecting equipment. CONNECTION WITH TV - Connect the audio cable to the white jack of AUX INPUT (L) and red jack of AUX INPUT (R) on the unit, and then connect to the corresponding AUDIO OUT jacks on your TV. This will allow your TV’s sound to play through the unit. -
Page 10: Set Up Diagram
CONNECTIONS (Continued) SET UP DIAGRAM IMPORTANT : Switch off the power before connecting equipment. NOTE : This system improves the sound of your DVD player, VCR or TV game, please connect the video cable directly to your TV video input jack. * One set of Audio Cable (Red &... -
Page 11: Sound Adjustment
SOUND ADJUSTMENT TO ADJUST THE MASTER VOLUME - Press the VOLUME +/– button on the unit or on the remote control to adjust the volume of all speakers. TO ADJUST THE VOLUME OF INDIVIDUAL SPEAKER - Press the SOUND button on the remote control to select the speaker sound mode when the indicator will light. -
Page 12: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE The following checks will assist in the correction of most problems which you may encounter with your system. PROBLEMS No power. No sound. No sound from one channel or unbalanced left and right volume. Reversed left and right sound. The centre speaker or the surround speakers give no sound...
