INSTALLATION
INSTRUCTIONS
1

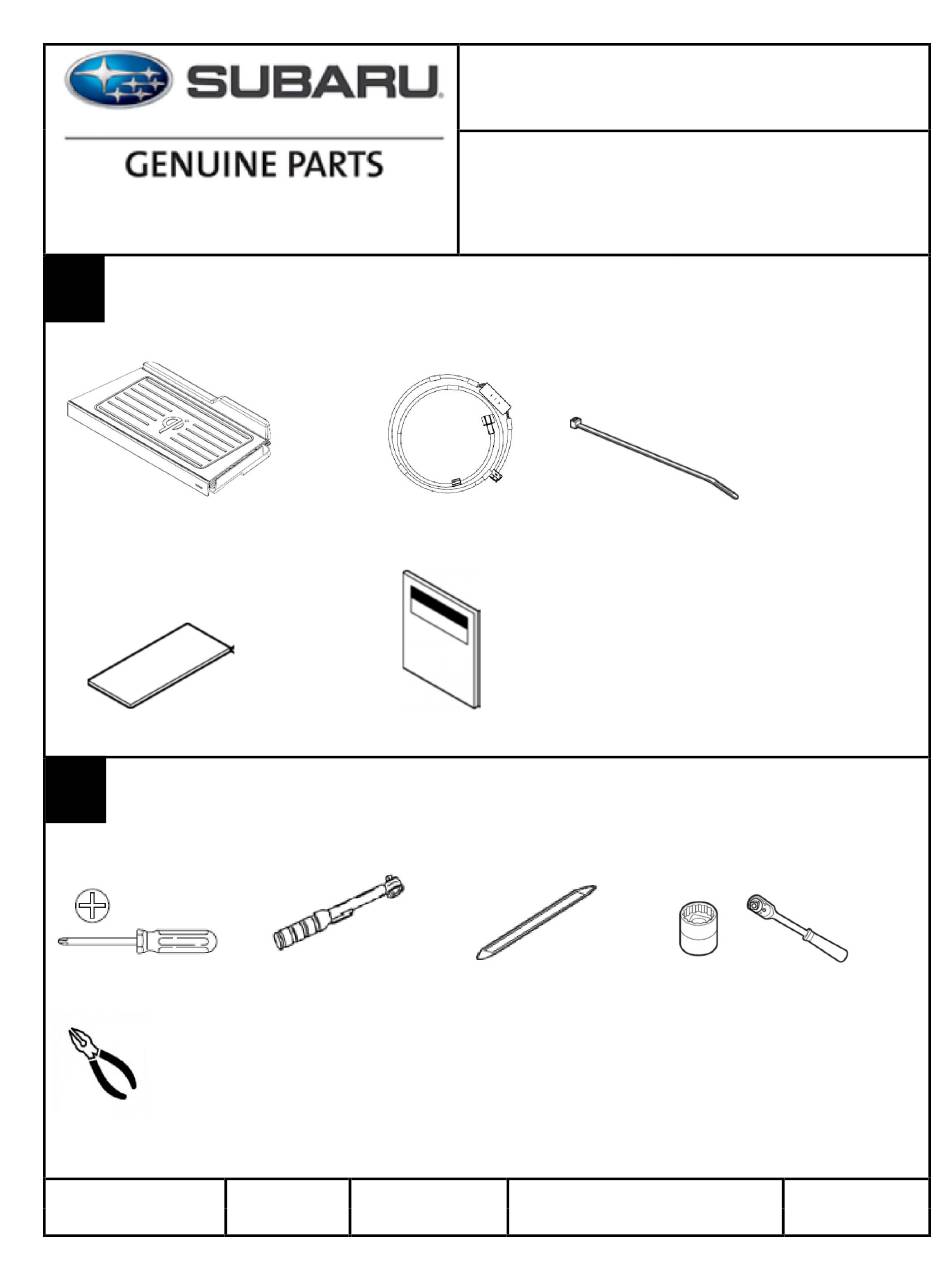

KIT CONTENTS
Wireless Charging Assembly
Foam Tape (Quantity=2)
z
2
TOOLS REQUIRED
Philips Screwdriver
Nipper
PART NUMBER
H671SXC200
T- Harness
Wireless Charging Information Card
Torque Wrench
ISSUE
DATE
REV 01
Nov 27 2019
PART NUMBER: H671SXC200
DESCRIPTION:
Tie Wrap (Quantity=6)
Panel Removal Tool 10mm socket and ratchet
SUBARU OF AMERICA
WIRELESS
CHARGER
1 OF 13
Advertisement
Table of Contents
Related Manuals for Subaru H671SXC200
Summary of Contents for Subaru H671SXC200
- Page 1 PART NUMBER: H671SXC200 DESCRIPTION: WIRELESS CHARGER INSTALLATION INSTRUCTIONS KIT CONTENTS Wireless Charging Assembly T- Harness Tie Wrap (Quantity=6) Foam Tape (Quantity=2) Wireless Charging Information Card TOOLS REQUIRED Philips Screwdriver Torque Wrench Panel Removal Tool 10mm socket and ratchet Nipper PART NUMBER...
- Page 2 4. Remove shifter knob retention pin by pushing both sides of the clip forward and then remove the shifter knob and collar. (FIGURE C) FIGURE C PART NUMBER ISSUE DATE SUBARU OF AMERICA 2 OF 13 H671SXC200 REV 01 Nov 27 2019...
- Page 3 (FIGURE FIGURE D 6. Use panel removal tool to remove console cover. (FIGURE E) FIGURE E Disconnect console power connection. (FIGURE F) FIGURE F PART NUMBER ISSUE DATE SUBARU OF AMERICA 3 OF 13 H671SXC200 REV 01 Nov 27 2019...
- Page 4 8. Use panel removal tool to remove rear console trim cover. (FIGURE G) FIGURE G 9. Remove 10mm bolt. Repeat on opposite side of console. (FIGURE H) FIGURE H PART NUMBER ISSUE DATE SUBARU OF AMERICA 4 OF 13 H671SXC200 REV 01 Nov 27 2019...
- Page 5 (FIGURE I) FIGURE I 2. Pull back rear console. (FIGURE K) FIGURE J 3. Unplug connector. Remove rear console. (FIGURE K) FIGURE K PART NUMBER ISSUE DATE SUBARU OF AMERICA 5 OF 13 H671SXC200 REV 01 Nov 27 2019...
- Page 6 5. Pull passenger side console cover and remove. (FIGURE N) FIGURE M 6. Pull back driver side console cover and lay to the side. (FIGURE N) FIGURE N PART NUMBER ISSUE DATE SUBARU OF AMERICA 6 OF 13 H671SXC200 REV 01 Nov 27 2019...
- Page 7 9. Route harness up through driver side hole containing AVH and Xmode harnesses. Secure to harness. Leave slack for installation. Place tie wrap as shown. (FIGURE Q) FIGURE Q PART NUMBER ISSUE DATE SUBARU OF AMERICA 7 OF 13 H671SXC200 REV 01 Nov 27 2019...
- Page 8 Wireless charger connector will be facing driver side. 11. Plug in wireless charger. Clip down. (FIGURE R) FIGURE R PART NUMBER ISSUE DATE SUBARU OF AMERICA 8 OF 13 H671SXC200 REV 01 Nov 27 2019...
- Page 9 FIGURE S 2. Reinstall passenger side console cover. Make sure center clip is latched. (FIGURE FIGURE T 8. Reconnect connector. (FIGURE U) FIGURE U PART NUMBER ISSUE DATE SUBARU OF AMERICA 9 OF 13 H671SXC200 REV 01 Nov 27 2019...
- Page 10 VEHICLE PARTS RE-INSTALLATION 4. Reinstall rear console by sliding it forward.cover. (FIGURE V) FIGURE V 5. Reinstall 4 Philips head screws. (FIGURE FIGURE W PART NUMBER ISSUE DATE SUBARU OF AMERICA 10 OF 13 H671SXC200 REV 01 Nov 27 2019...
- Page 11 FIGURE V 7. Reinstall 4 Philips head screws. (FIGURE FIGURE W 8. Reinstall 10mm bolts on both sides of console. (FIGURE X) FIGURE X PART NUMBER ISSUE DATE SUBARU OF AMERICA 11 OF 13 H671SXC200 REV 01 Nov 27 2019...
- Page 12 9. Reinstall console trim cover. (FIGURE Y) FIGURE Y 10. Reconnect console power connection. (FIGURE Z) FIGURE Z 11. Reinstall console cover. (FIGURE AA) FIGURE AA PART NUMBER ISSUE DATE SUBARU OF AMERICA 12 OF 13 H671SXC200 REV 01 Nov 27 2019...
- Page 13 POST INSTALLATION CHECKLIST Place car in ACC or ON mode Ensure wireless charger indicator light illuminates in white. PART NUMBER ISSUE DATE SUBARU OF AMERICA 13 OF 13 H671SXC200 REV 01 Nov 27 2019...
