VEC018
MANUFACTURING, Lt.d

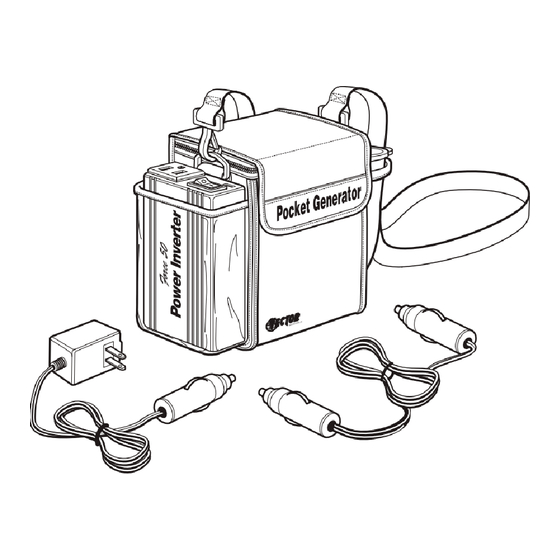

POCKET GENERATOR
™
PORTABLE/CORDLESS/RECHARGEABLE
POWER SUPPLY
110-VOLT AC & 12-VOLT DC
PATENT PENDING
OWNER'S MANUAL
& WARRANTY INFORMATION
THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION,
MAINTENANCE AND STORAGE OF THIS PRODUCT.
PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE TO AVOID
POSSIBLE INJURY OR PROPERTY DAMAGE.
4140 S.W. 28th Way, Ft. Lauderdale, FL 33312
VECTOR MANUFACTURING, Ltd.
®
4140 S.W. 28th Way
Tel: (954) 584-4446 • Fax: (954) 584-5504
Ft. Lauderdale, FL 33312
www.vectormfg.com
Advertisement
Related Manuals for Vector Pocket Generator VEC018
Summary of Contents for Vector Pocket Generator VEC018
-
Page 1: Power Supply
MAINTENANCE AND STORAGE OF THIS PRODUCT. PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE TO AVOID POSSIBLE INJURY OR PROPERTY DAMAGE. 4140 S.W. 28th Way, Ft. Lauderdale, FL 33312 VECTOR MANUFACTURING, Ltd. ® 4140 S.W. 28th Way Tel: (954) 584-4446 • Fax: (954) 584-5504 Ft. - Page 2 30 days of the date of purchase will be replaced free of charge. If such a product is returned more than 30 days but less than one year from the purchase date, Vector Manufacturing will repair the unit or, at its option, replace it free of charge.
- Page 3 Problem: Television Interference The Vector™ Power Force 50™ is shielded to minimize interference with TV signals. However, in some instances, some interference may still be visible, particularly when the TV signal is weak. Try the following corrective measures: •...
-
Page 4: Troubleshooting
6. WARNING: Do not run both AC and DC devices at the same time. 7. ALWAYS turn OFF the Power Force 50™ inverter BEFORE charging the Pocket Generator™. 8. The nylon case that is provided with the Pocket Generator™ is water-resistant only to the extent that it will help protect the unit from rain or water spray;... -
Page 5: Operation
Note: The Power Force 50™ will not operate appliances and equipment that generate heat, such as hair dryers, microwave ovens, and toasters. NOTE: Vector™ recommends charging from a vehicle only while its engine is running, so as not to run down the vehicle’s battery. The ideal charging rate is 14.5-15.5 volts, which is nearly identical to the charging rate of... - Page 6 110-volt AC Operation CAUTION: Rechargeable Devices Certain rechargeable devices are designed to be recharged by plugging them directly into an AC receptacle. These devices may damage the inverter unit of the Pocket Generator™. When first using a rechargeable device, monitor its temperature for the initial ten minutes of use to determine whether it emits excessive heat.
-
Page 7: Fuse Replacement
Power Force 50™ Output Waveform The AC output waveform of the Power Force 50™ is known as a “quasi-sine wave” or a “modified sine wave”. It is a stepped waveform that is designed to have characteristics similar to the sine wave shape of utility power. This type of waveform is suitable for most AC loads, including linear and switching power supplies used in electronic equipment, transformers, and motors. - Page 8 Vector Manufacturing, Ltd. (954) 923-1155. The Vector™ Power Force 50™ inverter supplied with the Pocket Generator™ is one in a series of the most advanced DC to AC inverters available today. With proper care and maintenance, it will deliver years of dependable service.
