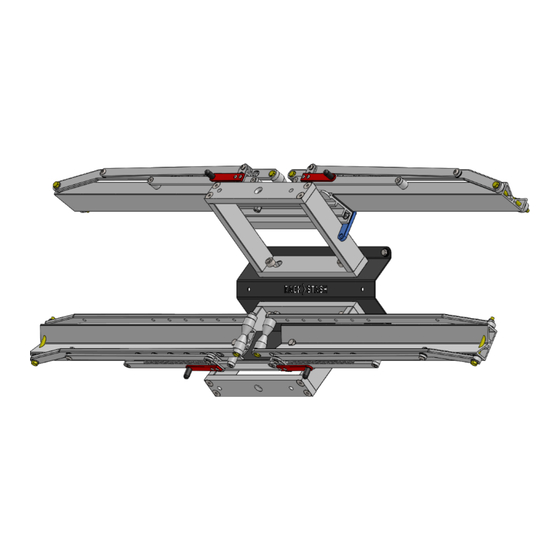

1UP USA RACK STASH Manual

In the Box:
•
RS Add-On Holder
•
Installation Hardware
•
Add-On Mounting Bolts
Installation
•
Begin by finding wall location to install. Unit requires two studs for horizontal
mounting and one stud for vertical mounting. 20" minimum clearance required
beyond both ends of unit.
•
Use level and tape to mark and drill 1/4" pilot holes in wall for mounting. Horizontal
mounting will require four holes. Vertical mounting will require two holes.
•
Use supplied lags and washers to install unit. 2" lags used for horizontal mounting.
4 1/2" lags used for vertical mounting. Spacers used for vertical mounting. Lags
should be tightened firmly.

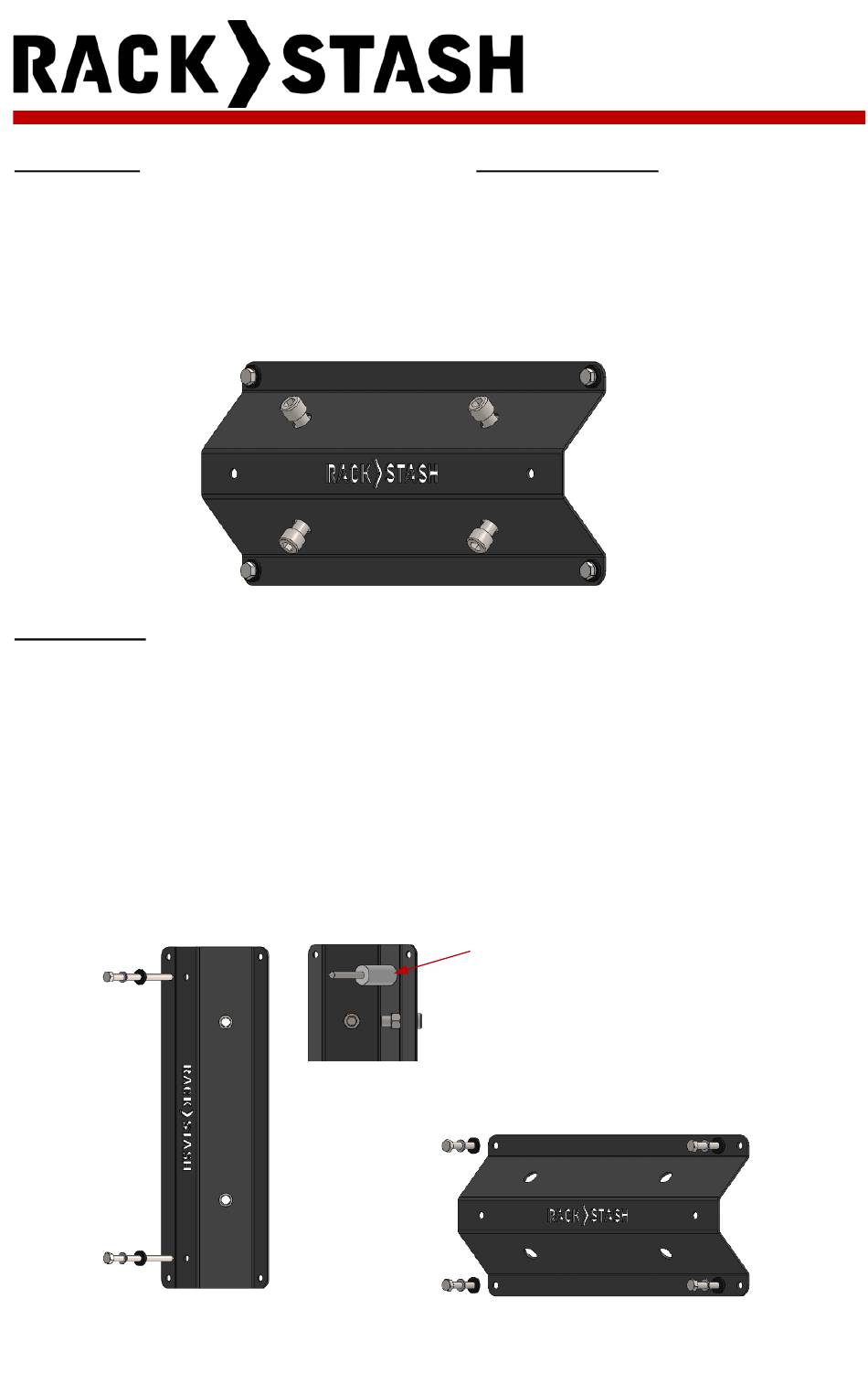

Vertical Mounting
RS Add-On Holder
Tools Required:
•
Drill
•
1/4" Drill Bit
•
1/2" Socket and Ratchet
•
Tape Measure
•
Level
•
3/8" Allen Wrench
Spacers to install on backside
of RS Add-On Holder.
Horizontal Mounting
