We're here to help! Please do not return your faucet to the store. For questions, installation support,
missing or replacement parts, contact us first.
¡Estamos aquí para servirle! Por favor no devuelva su llave de agua/grifo a la tienda. Para hacer
preguntas, obtener ayuda con la instalación, piezas que le falten o de repuesto, contáctenos primero.
Nous sommes là pour vous aider! Ne retournez pas votre robinet au magasin. Si vous souhaitez
obtenir des renseignements, du soutien pour l'installation ou des pièces de rechange ou si des pièces
sont manquantes, communiquez d'abord avec nous.
www.deltafaucet.com

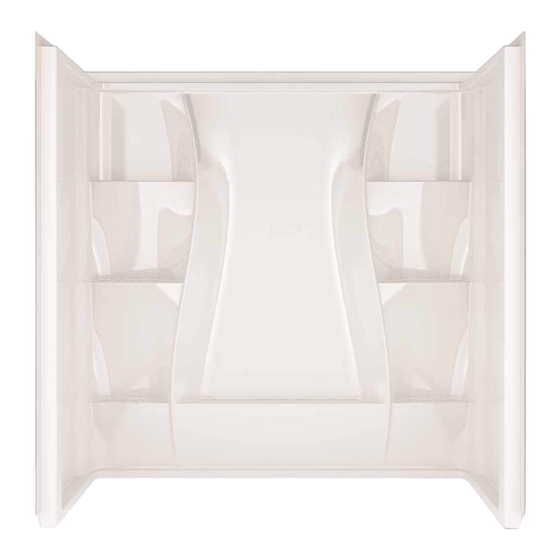

DIRECT-TO-STUD BATHTUB WALL SET
CONJUNTO DE PARED DE TINA
DIRECTA AL MONTANTE
ENSEMBLE MURAL POUR BAIGNOIRE FIXÉE AUX
MONTANTS
40204
www.deltafaucet.com
1-800-355-2721
consumercare@deltafaucet.com
1
40044
101144
12/6/17
101144 Rev. A
