Quick Installation Guide
* TL-WPA4220 (European version) is used for demonstration in this guide.
e
r l i n
w e
P o
New Extender

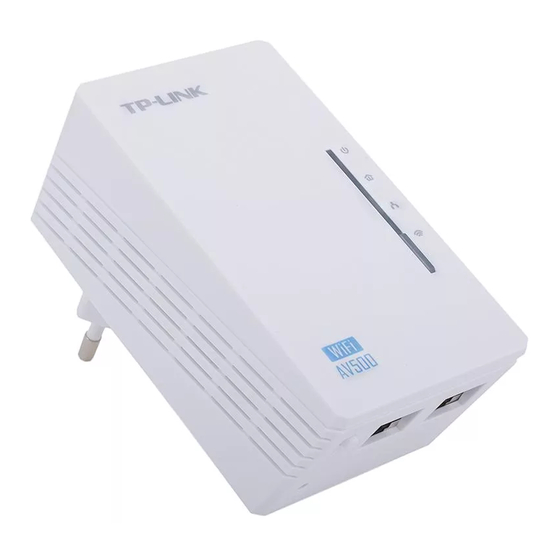

TL-WPA4220
1
Plug in the new extender near one of your existing powerline devices.
2
Check the new extender's Powerline LED
>
Step 4
>
Step 3
Existing Powerline Device
(for demonstration only)
. Is it on?
3
Pair the powerline devices.
A
Press the Pair button on the existing powerline
device for 1 second. The Power LED
starts blinking.
Note: If the Power LED does not blink, press the Pair
button again.
Blinking
Within 2 minutes
Existing Powerline Device
4
Relocate the extender to the Wi-Fi "dead" zone on the same electrical circuit. Connect your
devices to the internet using the default SSID (network name) and password on the label at
the top of the extender.
Note: If the Powerline LED is blinking, it means the signal strength is poor. Try another wall outlet.
If you cannot find this SSID in your Wi-Fi network list, this may mean the Wi-Fi Move feature
has automatically copied over the existing wireless settings (see back for more information).
In this case, use the SSID and password of your existing powerline network to connect.
Attention
Plug powerline devices into wall outlets instead of power strips.
Wall Outlet
B
Within 2 minutes, press the Pair button on the new
extender for 1 second. The Power LED
starts blinking.
When the Powerline LED
on the new extender turns
on, the pairing process is complete.
Blinking
On
New Extender TL-WPA4220
Power Strip
