Summary of Contents for Uniden UH088sx

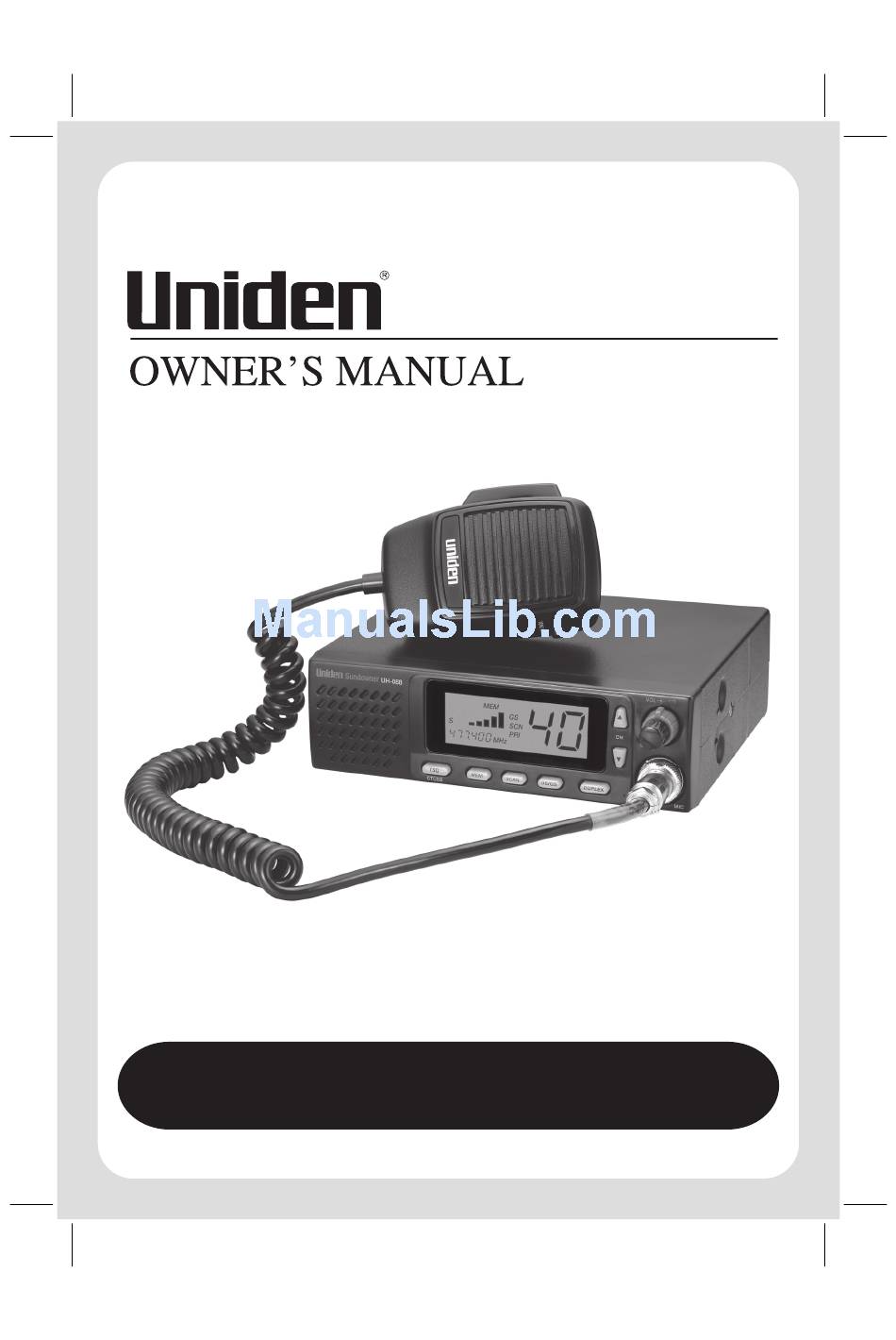

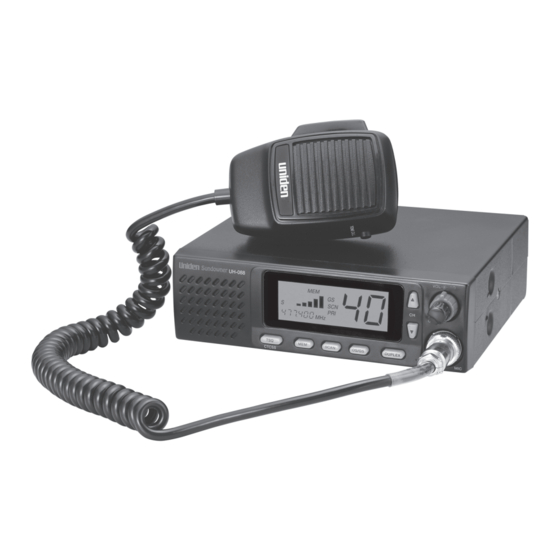

- Page 1 UNIDEN uh088sx CB RADIO...
-
Page 3: Table Of Contents
Operation Setting the Squelch... 9 Selecting a Channel... 10 Transmitting... 10 Using Repeater Channels... Operating the uh088sx in Duplex Mode... 11 Scanning... 11 Open Scan (OS) Mode... 11 Group Scan (GS) Mode... 12 Choosing a Priority Channel... 13 Drop Out Delay... 13 Programming Scan Channels... - Page 4 UNIDEN UHF CB Transceiver Contents Continuous Tone Coded Squelch System (CTCSS)... 16 Selective Calling (Optional Selcall PCB Required) Outline... Selective Calling (SELCALL)... Receiver Quieting (Tone Squelch)... Call Alarm... 17 Tone Squelch Scanning... 17 Tone Calling... 17 Group Calling Capability... Tables FM-CB Frequency List...
-
Page 5: Controls/Indicators/Connections
ON/OFF, VOLUME & SQUELCH CONTROLS ON/OFF & Volume Control (Centre Knob) Turns the uh088sx power ON or OFF and adjusts the volume. Squelch Control (Outer Ring) Eliminates background noise in the absence of an incoming spiral. PUSH-TO-TALK (PTT) - SWITCH -... -
Page 6: Indicators
Quiet Mode, or flashes when the radio is called using SELCALL. 20. CALL Indicator (CAL) - The CAL icon appears when the uh088sx radio is called using SELCALL. It also appears when SELCALL codes are being transmitted. 21. MEMORY Indicator (MEM) - MEM appears when the displayed channel is programmed either in GS or OS Memory. -
Page 7: Connections
UNIDEN UHF CB Transceiver Controls/Indicators/Connections CONNECTIONS FRONT PANEL 23. MICROPHONE SOCKET The microphone plug is inserted into this socket. BACK PANEL 24. EXTERNAL SPEAKER JACK - used for remote receiver monitoring. When the external speaker is connected, the internal speaker is automatically disconnected. The connecting wire must use a 3.5mm miniature plug only. -
Page 8: Introduction
The Uniden uh088sx is designed to provide you with years of trouble free service. It's rugged components and materials are capable of withstanding harsh environments. We are certain that you will enjoy your uh088sx. Please read this operating Manual carefully to ensure you gain the optimum performance of the unit. -
Page 9: Layout
UNIDEN UHF CB Transceiver Introduction LAYOUT Front Panel Layout Microphone Layout Tone Call... -
Page 10: Included With Your Uh088Sx Cb Radio
UNIDEN UHF CB Transceiver Included with your uh088sx CB radio uh088sx Owners Manual Microphone Mounting Bracket, Knobs, Microphone Hanger Screws Rubber washer, Washer Stars and washers and Screws. DC Power Cord with fuse... -
Page 11: Operation
UNIDEN UHF CB Transceiver Operation Setting the Squelch 1. To turn the unit ON, rotate volume clockwise. Adjust volume to a comfortable level. You must select a channel which is not in use before setting the SQUELCH control.(see p.10) 2. Think of the Squelch control as a gate. If you turn SQUELCH fully clockwise it raises the "Squelch Gate so... -
Page 12: Selecting A Channel
UNIDEN UHF CB Transceiver Operation SELECTING A CHANNEL Press button to select a channel TRANSMITTING Select the desired channel. Press the Microphone's PTT button, hold it approx 7cm from your mouth and speak normally into the microphone. icon will light. Release the PTT button to end the transmission and listen for a reply. -
Page 13: Operating The Uh088Sx In Duplex Mode
Check with your local Retailer to determine if there is a Repeater in your area. Scanning The uh088sx has a scanning feature that allows you to search for active channels automatically. Furthermore, the uh088sx is designed to have two types of scanning;... -
Page 14: Group Scan (Gs) Mode
CH40 becomes active. If SCAN is deactivated while it is turned to an active channel, the uh088sx will stay on that active channel. If none of the channels are active, the uh088sx will reinstate the starting channel. -
Page 15: Choosing A Priority Channel
, to select a lower channel Drop-out delay While scanning, the uh088sx stops at a busy channel and receives a transmission. When the received signal is over, the unit will wait for three seconds for the return of the signal, otherwise, the radio resumes scanning. -
Page 16: Programming Scan Channels
UNIDEN UHF CB Transceiver Operation Programming Scan Channels 1 Select which Scanning Mode you wish to use on the channel. OS or GS Mode 2. Select the channel you want to store. 3. Press and hold for 1.5sec. to store. -
Page 17: Channel Seeking Operation
Channel Seeking Operation Unlike normal scanning, CHANNEL SEEK is used more often when checking for active channels. If a signal is detected, while seeking, the uh088sx will tune to that signal for 4 seconds only and the resumes Seeking Operation. -
Page 18: Continuous Tone Coded Squelch System (Ctcss)
To turn CTCSS OFF please follow the above steps but select the desired CTCSS code oF (before code 01). Channels 05 and 35 are Emergency Channels. CTCSS cannot be selected on these channels. If a button is not pressed within 10 seconds the uh088sx will automatically exit Select Mode. code flashes. -
Page 19: Selective Calling (Optional Selcall Pcb Required) Outline
The uh088sx has an Optional Selective Calling system. Exceptional features, like Receiver Quieting, Tone Squelch Scanning, Tone and Group Calling make the uh088sx superior to any transceivers in its class. Receiver Quieting (Tone Squelch) When activated, it automatically mutes the receiver audio circuit of the radio. -
Page 20: Tables
UNIDEN UHF CB Transceiver Tables FM - CB Frequency List - Australia & New Zealand Simplex Mode Transmit / Receive CH No. Frequency (MHz) 476.425 476.450 476.475 476.500 476.525 476.550 476.575 476.600 476.625 476.650 476.675 476.700 476.725 476.750 476.775 476.800 476.825... -
Page 21: Warranty
ELEMENTS OF WARRANTY: Uniden warrants to the original retail owner for the duration of this warranty its uh088sx (hereinafter referred to as the Product), to be free from defects in materials and craftsmanship with only the limitations or exclusions set out below. - Page 24 2004 Uniden Australia Pty Limited / Uniden New Zealand Limited Printed in the in China UTZZ01924ZZ...
- Page 25 uh064sx-2 Operating Guide To bring outstanding wireless communication products to people's lives throughout the world.
- Page 26 CONTROL & INDICATORS INCLUDED IN YOUR PACKAGE: • uh064sx-2 Radio (2) • Charging Cradle with AC Adaptor • Operating Guide • NiMH Battery Pack (2) • Belt Clip (2) • VOX Headset (2) • External Speaker Mic (2) OPTIONAL ACCESSORIES •...
-
Page 27: Battery Installation
GETTING STARTED Uniden does not represent this product to be waterproof. Do not expose this product to Rain or Moisture. BATTERY INSTALLATION Your uh064sx unit uses the included NiMH battery pack for power. The unit can be powered with optional 4 AAA ALKALINE batteries. - Page 28 INSTALLING THE CHARGE CRADLE 1. Plug the AC adaptor into the rear of the charge cradle and into the mains power. 2. Place the uh064sx into the charge cradle. The charge light will come on to indicate the unit is charging. 3.
-
Page 29: Belt Clip
BELT CLIP To attach the belt clip: Slide the belt clip until it snaps into place. To remove the belt clip: To remove the belt clip, press and hold belt clip locker, slide the belt clip at the same time until released. LOW BATTERY ALERT If the battery level becomes low, the battery indicator icon on the display begins flashing. - Page 30 OPERATION POWER ON/OFF 1. Press and hold select/ key to turn the radio on. A channel number will appear on the display. 2. Press and hold select/ key to turn the radio off. VOLUME 1. Press key to increase or decrease the volume level.
- Page 31 SELECTING A CHANNEL 1. Press ch/txp key momentarily to activate channel select mode. The displayed channel will flash. 2. Press key to select the desired channel. For your reference a list of the available channels, corresponding frequencies and guidelines for their use is printed on page 12.
- Page 32 AUTOMATIC SQUELCH FEATURE The uh064sx is equipped with an Automatic Squelch System which shuts off weak transmissions and unwanted noise. MONITOR This feature enables users to listen for weak signals on the current channel at the press of a key. To use monitor: 1.
- Page 33 REPLY DELAY While scanning, the uh064sx stops at a busy channel and receives a transmission. When the received signal is over, the unit will wait for 2 seconds for the return of the signal, otherwise, the radio resumes scanning. TO OPERATE IN DUPLEX MODE (REPEATERS) The Duplex function enables you to access local repeater stations.
- Page 34 CTCSS & DCS & (Continuous Tone Coded Squelch System) (Digital Coded Squelch) CTCSS is a feature that allows a group to talk to each other without hearing other users on the same channel. 1. Press select/ key momentarily to enter CTCSS mode.
-
Page 35: Transmitting A Call Tone
VOX is the automatic transmitting function by inputting voice into the VOX headset mic without pressing the PTT key. 1. Press select/ key momentarily twice while in standby mode to enter VOX Sensitivity mode. current selected VOX setting will flash on the display. 2. - Page 36 PRIORITY SCAN CHANNEL To set a priority scan channel: 1. Press select/ momentarily four times while in standby mode to enter Priority Scan Channel mode. The current priority channel will be indicated. 2. Press key to increase or decrease the desired channel number.
- Page 37 UHF CB CHANNELS & FREQUENCIES Please follow these guidelines for channel use in Australia: Channels 05 and 35 are Emergency Channels. • Channel 11 is a Calling Channel. • Channels 22 and 23 are for telemetry and telecommand applications • and TX is inhibited on these channels.
- Page 38 CTCSS & DCS Code List (o0) (o1) (o2) (o3) (o4) (13)
- Page 39 Repair Agent for a defect or malfunction covered by this warranty, (E) Used in conjunction with any equipment or parts or as part of a system not manufactured by Uniden, (F) Installed, programmed or serviced by anyone other than an authorised Uniden Repair Agent, or (G) Where the Serial Number label of the product has been removed or damaged beyond recognition.
- Page 40 © 2006 Uniden Australia Pty Limited/Uniden New Zealand Limited Printed in China UTZZ01933ZZ(0)
