Uniden UA466ZL Owner's Manual

Uniden owner manual wireless microphone ua466zl
Hide thumbs
Table of Contents

Advertisement

Quick Links

WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page a

Advertisement

Table of Contents
loading

Related Manuals for Uniden UA466ZL

Summary of Contents for Uniden UA466ZL

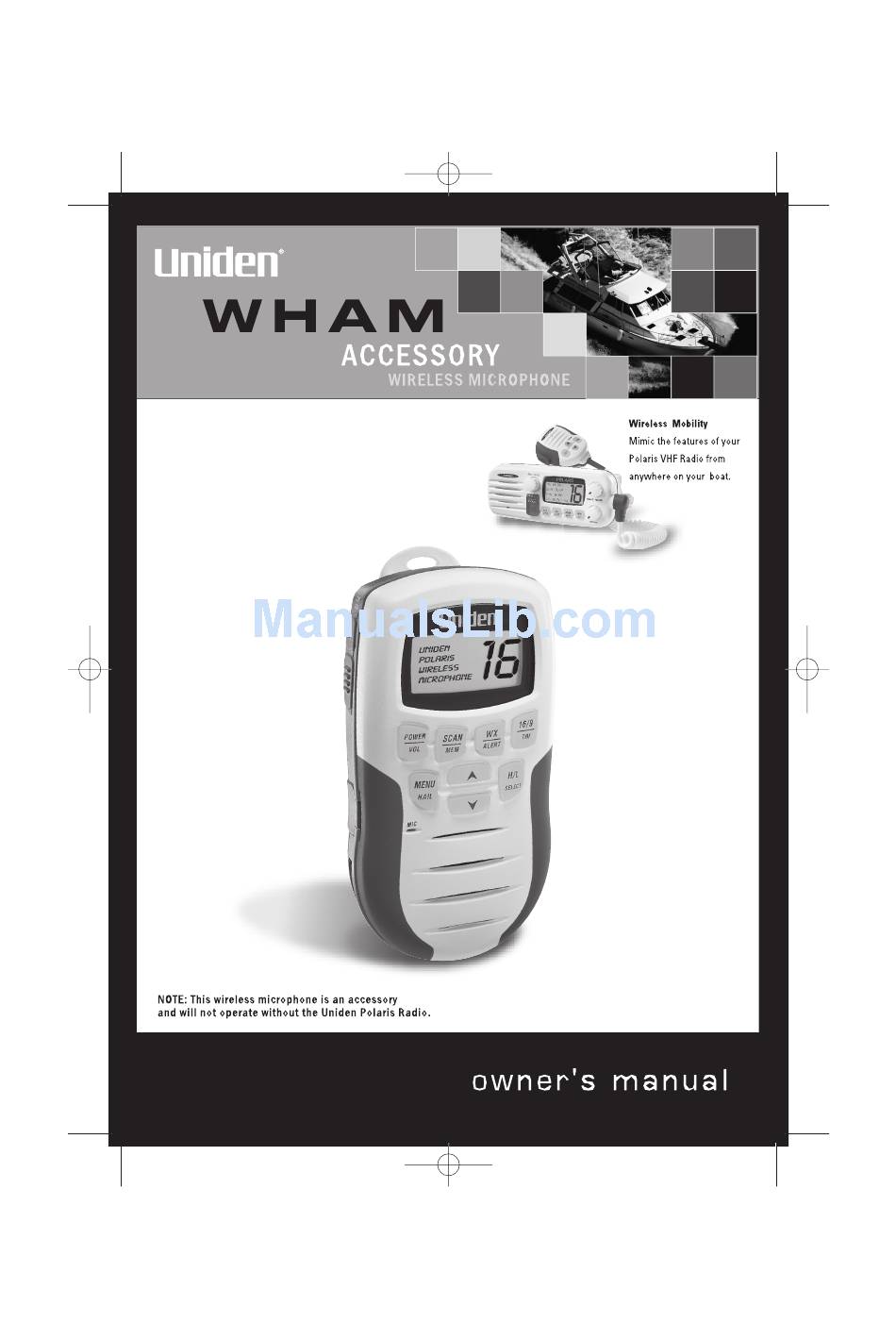

  • Page 1 WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page a...

  • Page 2: Table Of Contents

    Backlight Adjust ...13 Key Lock On/Off ...13 Distress...14 Troubleshooting ...15 Care and Maintenance ...15 Specification ...16 Warranty ...17 Spanish owner’s manual available at www.uniden.com http://www.uniden.com/productsupport.cfm?cat=Marine%20Electronics El manual pare el usuario, en el idioma español, está disponiole en www.uniden.com http://www.uniden.com/productsupport.cfm?cat=Marine%20Electronics Contents...

  • Page 3: Precautions

    SAVE THESE INSTRUCTIONS! The FCC Wants You To Know Changes or modifications to this product not expressly approved by Uniden, or operation of this product in any way other than as detailed by the owner’s manual, could void your authority to operate this product.

  • Page 4: Introduction

    WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page 2 WHAM is an accessory of the POLARIS™. The Uniden WHAM 900 MHz analog wireless mic is designed to provide you with years of trouble-free service. Its rugged components and materials are easily capable of withstanding the harsh marine environment. As it has a JIS7 waterproof housing to protect the electronics.

  • Page 5: Included With Your Wham

    WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page 3 Included with your WHAM WHAM Owner’s Manual WHAM Control Unit (UAZZ01466ZZ) Drop-in Charger AC Adapter DC Adapter (WH85) (AD-168) (WZ1244) Mounting Hardware Kit Alkaline Battery Belt Clip Battery Tray (BT-446) (GBCT4A2561Z) Screw (MSCW4A2560Z) Wrist Strap (RECT484647Z)

  • Page 6: Controls And Indicators

    WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page 4 Controls and Indicators SCAN/MEM - Select Scan mode and setup Memory channels. Press this key to activate the Scan operation. Press and hold this key for 2 seconds to place a channel into Scan Memory or remove a channel from Scan Memory.
  • Page 7 WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page 5 TX (Transmit) - Indicates transmitting. TRI (Triple Watch) - Indicates Triple Watch Mode and Triple Watch Scan Mode. HI (High) - Indicates transmit output is 25 Watts. LO (Low) - Indicates transmit output is 1 Watt. USA - Indicates US Channel Mode.

  • Page 8: Getting Started

    WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page 6 Mounting the Drop-in Charger Mount the drop-in charger to either a bulk head or dash. Plug one end of the AC adapter into a wall outlet, or the DC adapter into a cigarette lighter socket, and the other end into the drop-in charger.

  • Page 9: Installation

    WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page 7 Installing the Battery Pack Use a coin or screw driver to loosen the screw on the cover. Unlock both sides of the battery compartment. Open the cover. Connect the battery pack (BT-446) connector observing the correct polarity (black and red wires) to the jack inside the battery compartment.

  • Page 10: Installing The Beltclip

    WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page 8 Put the alkaline battery tray inside, and install the 3 AAA batteries in the tray. Replace the cover. Lock both sides of the battery compartment. Tighten the screw on the cover. Installing the Beltclip Place the beltclip on the mounting area on the back of the WHAM, making sure the hole in the clip lines up with the...

  • Page 11: Control Unit Connection And Installation

    WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page 9 Control Unit Connection and Installation Connect the Control Unit cable and the Remote Connector. Choose the best location for the POLARIS and the Control Unit. • Away from the vessels compass. • Away from metal objects that might interfere or obstruct the signal.

  • Page 12: Operation

    WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page 10 Power On/Off Press and hold POWER/VOL for 2 seconds to turn the WHAM On. You can turn the WHAM Off by pressing and holding POWER/VOL for 2 seconds again. * If you are not able to turn the WHAM Off, press and hold POWER/VOL for more than 15 seconds.

  • Page 13: Weather Channels

    WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page 11 Weather Channels To select Weather Channels 0-9, press WX/ALERT. The radio will go to the last selected Weather Channel. Press L or M to select a different Weather Channel. To exit from Weather Channel: G Press WX/ALERT.

  • Page 14: Registering The Wham To The Polaris

    WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page 12 Registering the WHAM to the POLARIS Note: When you use the WHAM in addition to the POLARIS wired mic, please set the BASE ID for the POLARIS the same as the WHAM. (Please refer to the Owners Manual for the POLARIS). When the WHAM is turned On for the first time, the following screen appears.

  • Page 15: Hail

    WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page 13 Hail To access the Hail mode, press and hold MENU/HAIL for more than 2 seconds on the WHAM. The HA icon appears on the display. Press the PTT switch on the microphone, hold the microphone approximately two inches away from your mouth, and speak clearly in a normal voice.

  • Page 16: Distress

    WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page 14 Distress Note: You must set the user MMSI in order to send a Distress call. Please see the POLARIS Owner’s Manual on page 40 to set the MMSI. This feature will allow you to transmit a Distress call. In order to transmit a Distress call, press and hold DISTRESS for 5 seconds.

  • Page 17: Troubleshooting

    WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page 15 If the WHAM does not perform to your expectations, try the suggestions listed below, If you cannot get satisfactory results, call Uniden Technical Support at (800) 586-0409, 8:00 a.m. to 5:00 p.m., Central Standard Time, Monday through Friday.

  • Page 18: Specification

    WHAM_UA466ZL UA01466ZA_0 9/20/02 12:50 PM Page 16 General Standard Voltage Operating Temperature Channel Standard Deviation Buttons Size Weight Water Protect Class Receiver Sensitivity 12 dB SINAD (at ±40 kHz Dev.) with CCITT Filter Frequency Response (Ref: 1kHz) 0.3 kHz Audio Output Level (8 ohms) Distortion at 1 mV RF Input Hum &...

  • Page 19: Warranty

    WARRANTOR: UNIDEN AMERICA CORPORATION (“Uniden”) ELEMENTS OF WARRANTY: Uniden warrants, for three years, to the original retail owner, this Uniden Product to be free from defects in materials and craftsmanship with only the limitations or exclusions set out below. WARRANTY DURATION: This warranty to the original user shall terminate and be of no further effect 36 months after the date of original retail sale.
