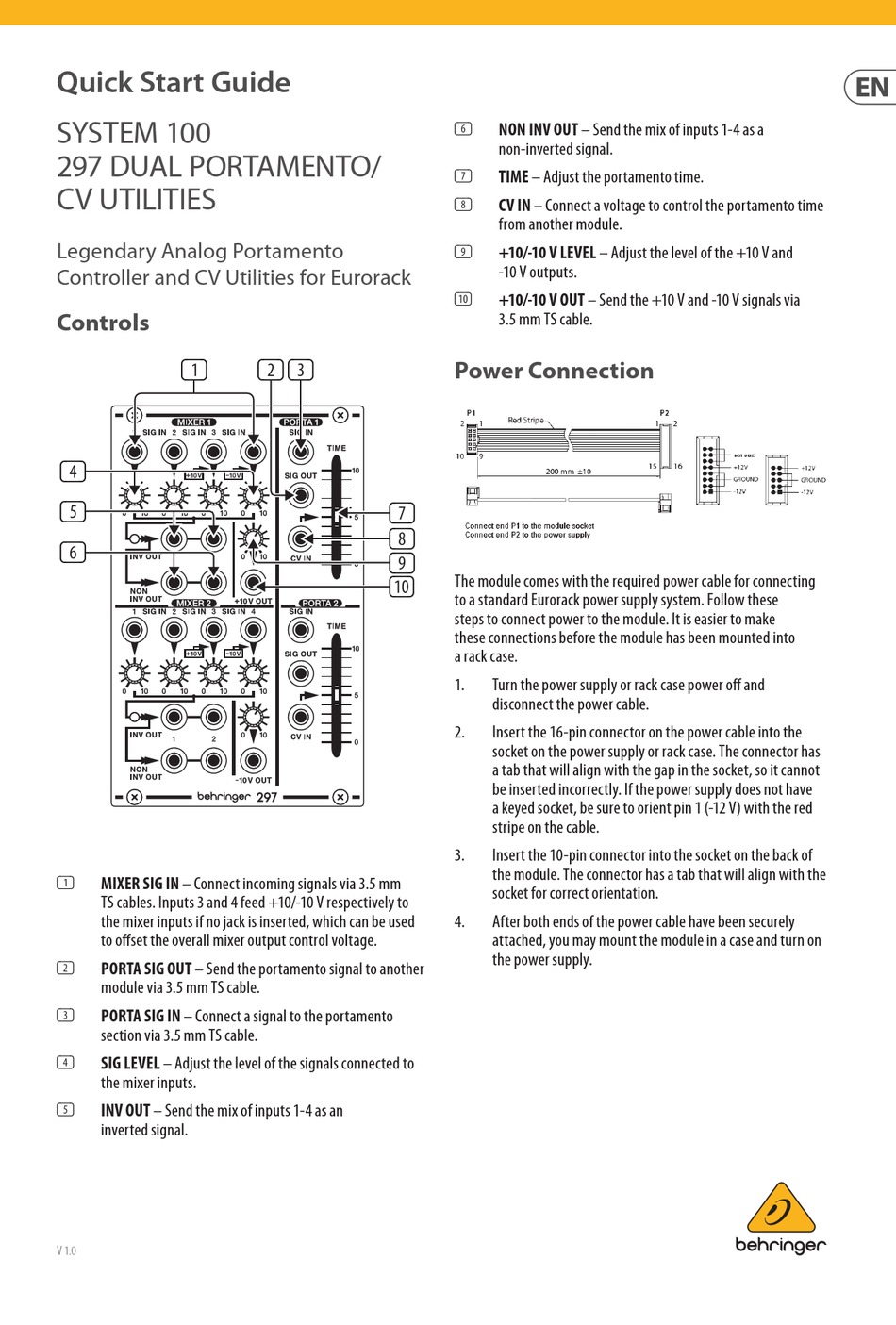

Quick Start Guide
SYSTEM 100
297 DUAL PORTAMENTO/
CV UTILITIES
Legendary Analog Portamento
Controller and CV Utilities for Eurorack
Controls
(1)
(4)
(5)
(6)
MIXER SIG IN – Connect incoming signals via 3.5 mm
(1)
TS cables. Inputs 3 and 4 feed +10/-10 V respectively to
the mixer inputs if no jack is inserted, which can be used
to offset the overall mixer output control voltage.
PORTA SIG OUT – Send the portamento signal to another
(2)
module via 3.5 mm TS cable.
PORTA SIG IN – Connect a signal to the portamento
(3)
section via 3.5 mm TS cable.
SIG LEVEL – Adjust the level of the signals connected to
(4)
the mixer inputs.
INV OUT – Send the mix of inputs 1-4 as an
(5)
inverted signal.
V 1.0
(2) (3)
(7)
(8)
(9)
(10)
NON INV OUT – Send the mix of inputs 1-4 as a
(6)
non-inverted signal.
TIME – Adjust the portamento time.
(7)
CV IN – Connect a voltage to control the portamento time
(8)
from another module.
+10/-10 V LEVEL – Adjust the level of the +10 V and
(9)
-10 V outputs.
+10/-10 V OUT – Send the +10 V and -10 V signals via
(10)
3.5 mm TS cable.
Power Connection
The module comes with the required power cable for connecting
to a standard Eurorack power supply system. Follow these
steps to connect power to the module. It is easier to make
these connections before the module has been mounted into
a rack case.
1. Turn the power supply or rack case power off and
disconnect the power cable.
2. Insert the 16-pin connector on the power cable into the
socket on the power supply or rack case. The connector has
a tab that will align with the gap in the socket, so it cannot
be inserted incorrectly. If the power supply does not have
a keyed socket, be sure to orient pin 1 (-12 V) with the red
stripe on the cable.
3. Insert the 10-pin connector into the socket on the back of
the module. The connector has a tab that will align with the
socket for correct orientation.
4. After both ends of the power cable have been securely
attached, you may mount the module in a case and turn on
the power supply.
