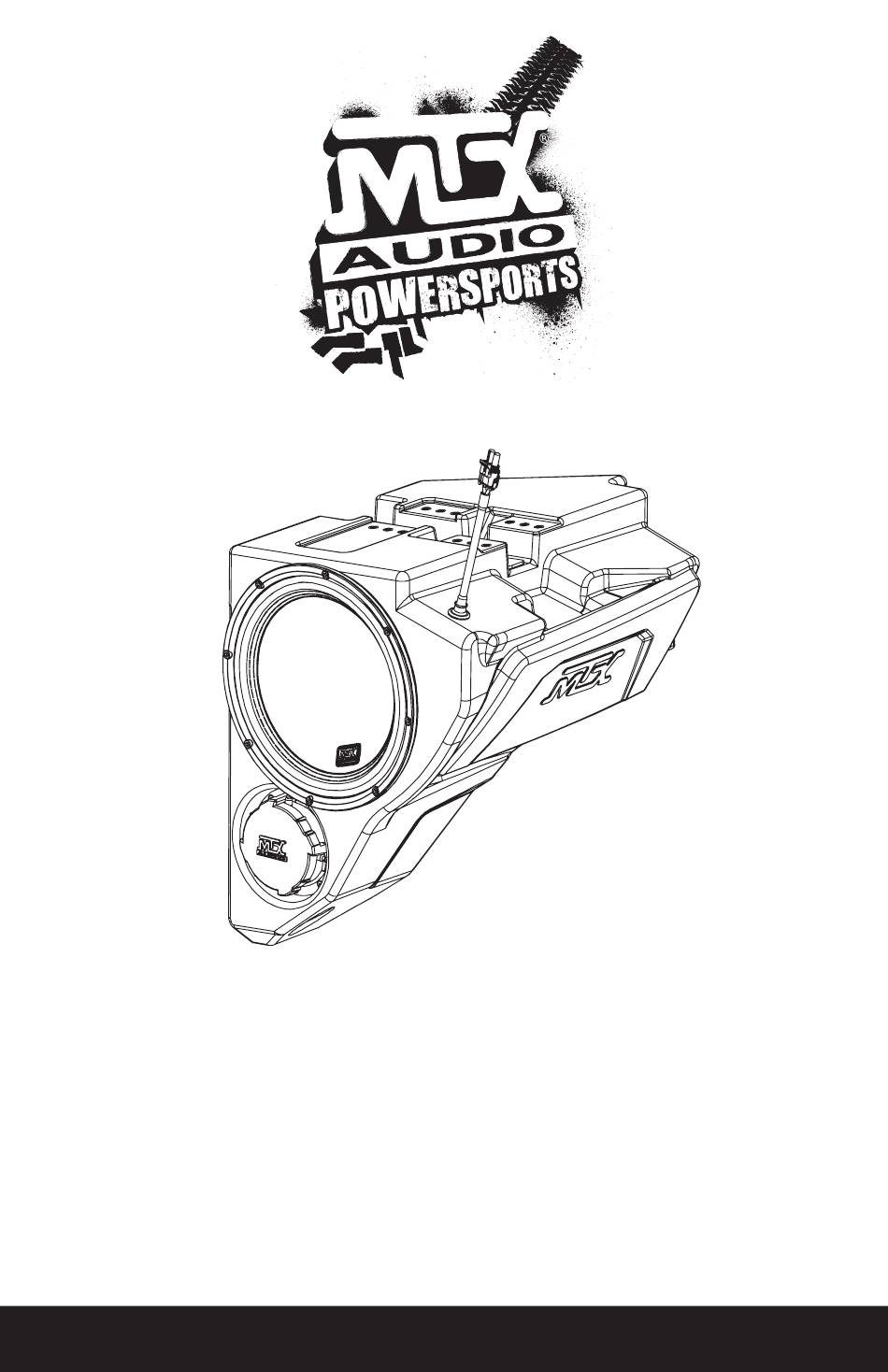

  • Page 1 RZR-14-SW POLARIS SUBWOOFER ENCLOSURE ® ® OWNER’S MANUAL M T X . C O M...

  • Page 2: We're Here To Help

    MTX! WE’RE HERE TO HELP We’re here to help with any installation or technical support. Visit mtx.com to chat, call 1-800-225-5689 to speak with an MTX Technical Support representative, or visit youtube.com/user/MTXAudioUSA to view product videos.

  • Page 3: Specifications

    FEATURES • Can Be Used as a Ported or Sealed Enclosure • Includes an MTX 55 Series Subwoofer for its Deep Bass Reproduction Capabilities • QuIPS (Quick Install Port Seal) Technology • Mounts Behind Dashboard • Factory Matched Texture • Installer Friendly Design •...
  • Page 4 DISASSEMBLY - RZR MODELS 2019+ Step 1 - Release the two quick locks to remove the hood from the vehicle. Lift the hood and slide it towards the front of the vehicle Step 2 - Remove the four (4) T40 screws holding down the top dash cover. Driver Side Passenger Side M T X .
  • Page 5 Step 3 - Remove the retaining clips holding the center dash compartment in place. Remove the compartment. Step 4 - Remove the dash top panel. M T X . C O M...
  • Page 6 Step 5 - Remove the two (2) bolts in the center behind the dash. Note: For vehicles with Ride Command units, you may find two additional bolts on either side of the display. Remove these if present. Step 6 - Remove the T-handle and clip. Step 7 - Remove the Torx head screw from the dash pocket brace.
  • Page 7 Step 8 - Unplug the gauge and switches making sure not to damage the vehicle and ignition wiring. Make note to remember what connector is associated with each specific switch. Step 9 - Carefully lift the dash out of the vehicle. There are locking clips on the right and left side that hold it in place.
  • Page 8 Step 10 - Remove the retaining clips holding the passenger side dash compartment in place. Remove the compartment. Step 11 - Remove the two (2) 10mm bolts above the glove box. M T X . C O M...
  • Page 9 Step 12 - Remove the glove box. Step 13 - Remove one (1) T40 Torx screw located directly above left foot rest on passenger side. The vehicle disassembly process is now complete. Please turn to page 14 to continue with the product installation process.
  • Page 10 DISASSEMBLY - RZR MODELS 2014 - 2018 Step 1 - Release the two quick locks to remove the hood from the vehicle. Step 2 - Lift up the hood and slide towards the front of the vehicle. Step 3 - Remove the two (2) T40 screws holding down the top dash cover. M T X .
  • Page 11 Step 4 - Lift and pull back the top dash cover to release the clips holding it in place. Unplug the gauge and switches making sure not to damage the vehicle and ignition wiring. Make note to remember what connector is associated with each specific switch. Step 5 - Remove the Torx head screw from the dash pocket brace.
  • Page 12 Step 6 - Remove the two (2) T40 screws holding the dashboard in place. Step 7 - Pull the dashboard towards the back of the vehicle. There are locking clips on the right and left side that hold it in place. The dash will pop out. M T X .
  • Page 13 Step 8 - Carefully lift the dash out of the vehicle. If the locking clips have fallen off, place them back onto the locking tabs on the dash. These are needed to re-assemble the dashboard. Step 9 - Remove the two (2) 10mm hex bolts that are holding the glove box to the vehicle frame. When the screws are removed the glove box can be lowered down and out of the enclosure.

  • Page 14: Installation

    INSTALLATION Step 1 - Install the large hardware bracket on the RZR-14-SW subwoofer enclosure using one 10mm bolt as pictured. Hand-tighten so the bracket is able to slide left to right. Step 2 - Hang the subwoofer enclosure from the T-handle mounting bar as shown by sliding the installed bracket over the bar.

  • Page 15: Warranty Period

    WARRANTY PERIOD At MTX Audio we engineer products that will stand up to the test of time. We also realize that from time to time a problem may occur. That’s why our products carry a 2-year limited warranty that begins at the time of sale to the end user.
  • Page 16 Like, Follow, & Subscribe © 2020 Mitek Corporation. All rights reserved. MTX is a trademark of Mitek Corporation. All other trademarks are property of their respective owners. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice.
