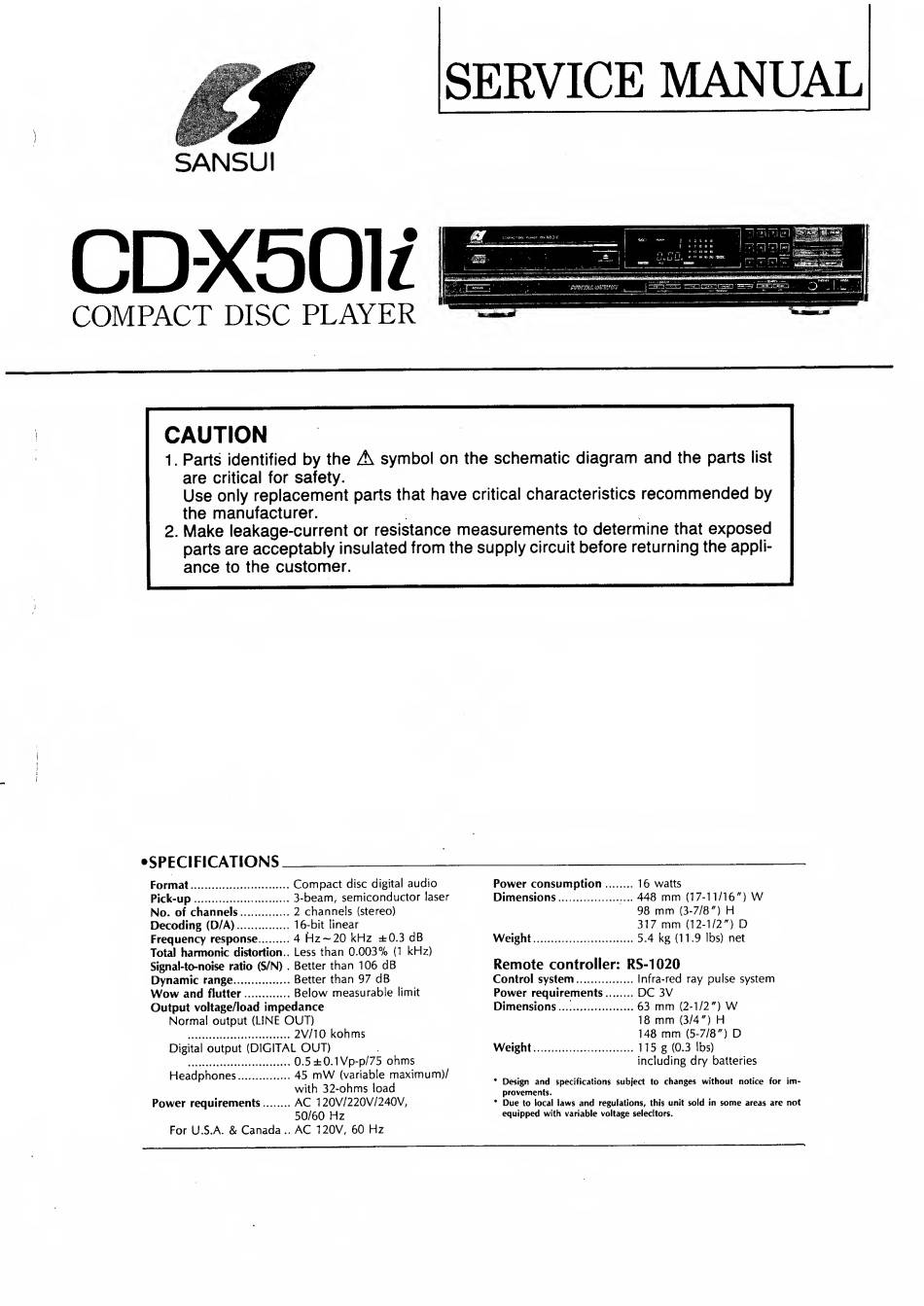

SANSUI
SERVICE
MANUAL

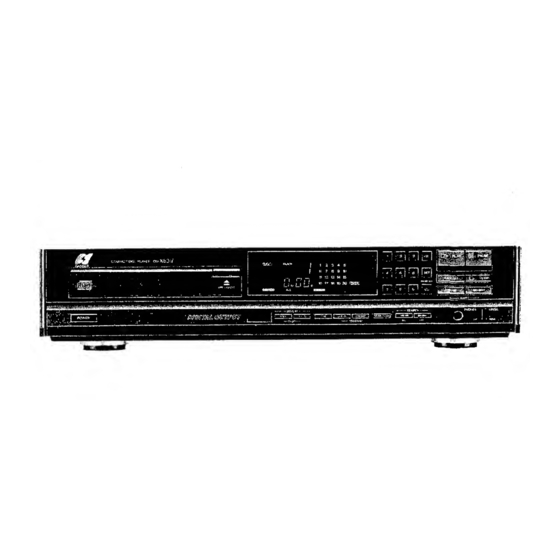

CD-X501*
COMPACT
DISC
PLAYER
CAUTION
1
.
Parts
identified
by
the
A
symbol on
the
schematic diagram
and
the parts
list
are
critical
for safety.
Use
only
replacement
parts
that
have
critical
characteristics
recommended
by
the manufacturer.
2.
Make
leakage-current
or resistance
measurements
to
determine
that
exposed
parts are
acceptably
insulated
from
the
supply
circuit
before
returning the
appli-
ance
to
the
customer.
•SPECIFICATIONS
Format
Compact
disc
digital
audio
Pick-up
3-beam, semiconductor
laser
No.
of
channels
2
channels
(stereo)
Decoding
(D/A)
16-bit linear
Frequency response
4
Hz~20
kHz
±0.3 dB
Total
harmonic
distortion..
Less
than
0.003%
(1
kHz)
Signal-to-noise
ratio
(S/M)
.
Better
than 106
dB
Dynamic
range
Better
than 97
dB
Wow
and
flutter
Below
measurable
limit
Output
voltage/load
impedance
Normal
output
(LINE
OUT)
2V/10
kohms
Digital
output
(DIGITAL
OUT)
0.5
±0.1 Vp-p/75
ohms
Headphones
45
mW
(variable
maximum)/
with
32-ohms
load
Power
requirements
AC
1
20V/220V/240V,
50/60
Hz
For U.S.A.
&
Canada
..
AC
120V, 60
Hz
Power consumption
16 watts
Dimensions
448
mm
(17-11/16")
W
98
mm
(3-7/8")
H
317
mm
(12-1/2")
D
Weight
5.4
kg
(11.9
lbs)
net
Remote
controller:
RS-1020
Control system
Infra-red
ray pulse
system
Power
requirements
DC
3V
Dimensions...!
63
mm
(2-1/2")
W
18
mm
(3/4")
H
148
mm
(5-7/8")
D
Weight
115
g
(0.3
lbs)
including
dry
batteries
*
Design
and
specifications subject to
changes without
notice for
im-
provements.
*
Due
to
local
laws
and
regulations,
this
unit sold
in
some
areas are
not
equipped
with variable voltage
selectors.
