U-Line Combo CO29FF Use And Care Manual page 13

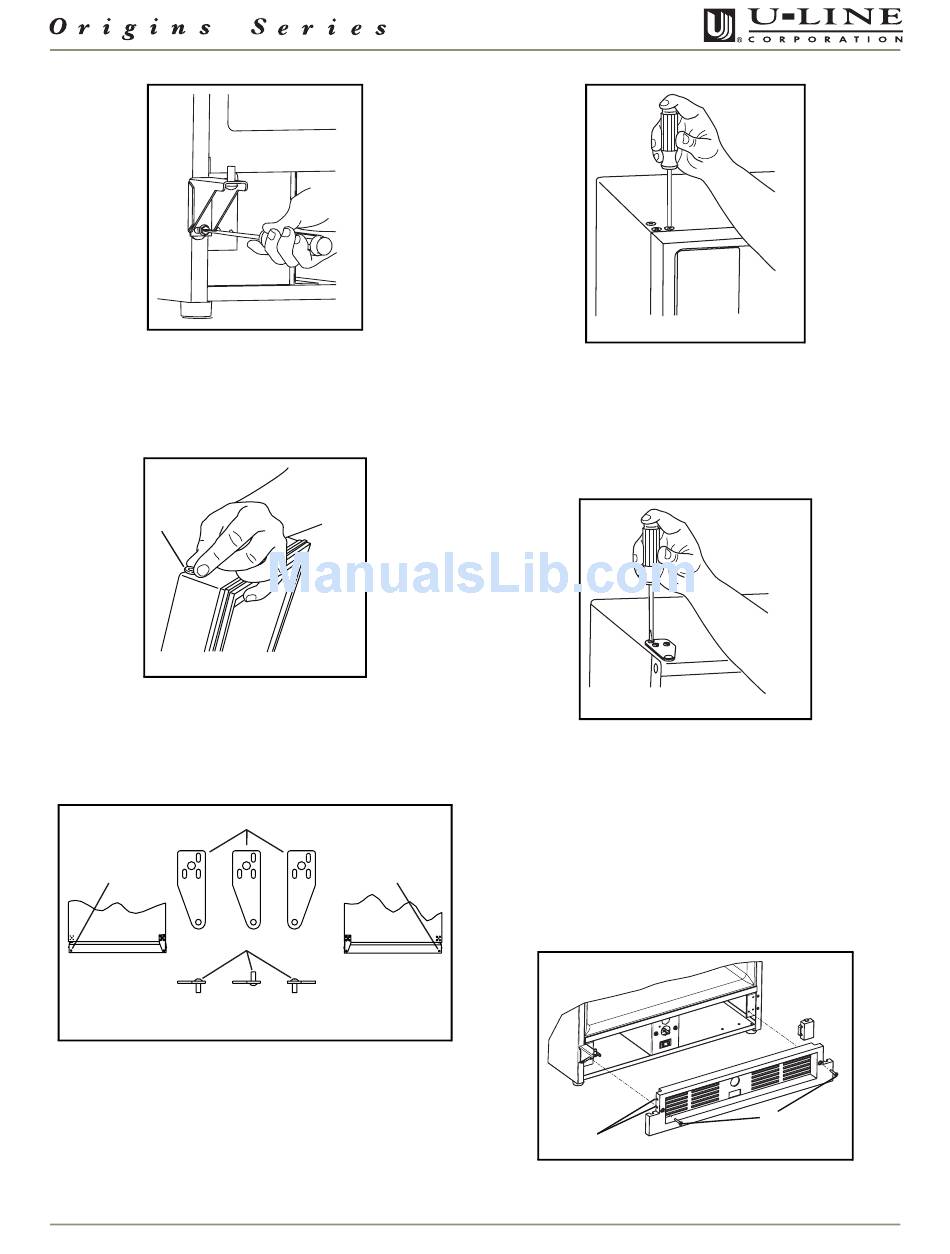

Figure 19
5. Install hinge on opposite side, bottom of cabinet
(Figure 19). Replace nut on back side where installed.
Align hinge outer edge with cabinet before tightening
screws.
1
Figure 20
6. Relocate plastic spacer/bushing (Figure 20, 1) on
bottom of door to opposite side, and place door on
bottom hinge pin. Clean out bushing hole in door
bottom with a screwdriver if needed.
Plastic
Plug Hole
Right Side
Door Swing
Right Side
Hinge
Figure 21
7. Remove plastic hole plug from door handle and
relocate on opposite side (Figure 21).
8. Remove pivot screw from top hinge, invert screw and
reinstall pivot screw in top hinge (Figure 21).
ULINE_0217_A
ULIN_0109_A
Hinge
Plastic
Plug Hole
Screw
Left Side
Door Swing
Invert Invert
Screw Hinge
ULIN_0142_A
9. Remove three plastic screw plugs in hinge holes, top of
cabinet, opposite side; being careful not to scratch
cabinet (Figure 22).
10. Place door on lower hinge pin. Invert and install upper
hinge on door.
11. Fasten upper hinge to unit (three screws) (Figure 23).
Partially tighten screws until door is aligned.
12. Adjust door to assure proper seal. Tighten upper hinge
screws securely.
13. Replace three plastic plugs removed in Step 10 into
holes on top of unit. Replace screws in holes in bottom
of unit, opposite side.
14. Re-inspect door seal and alignment. Adjust if needed.
1
CO29FF
ULIN_0144_A
Figure 22
ULIN_0145_A
Figure 23
2
ULIN_0214_A
Figure 24
13
