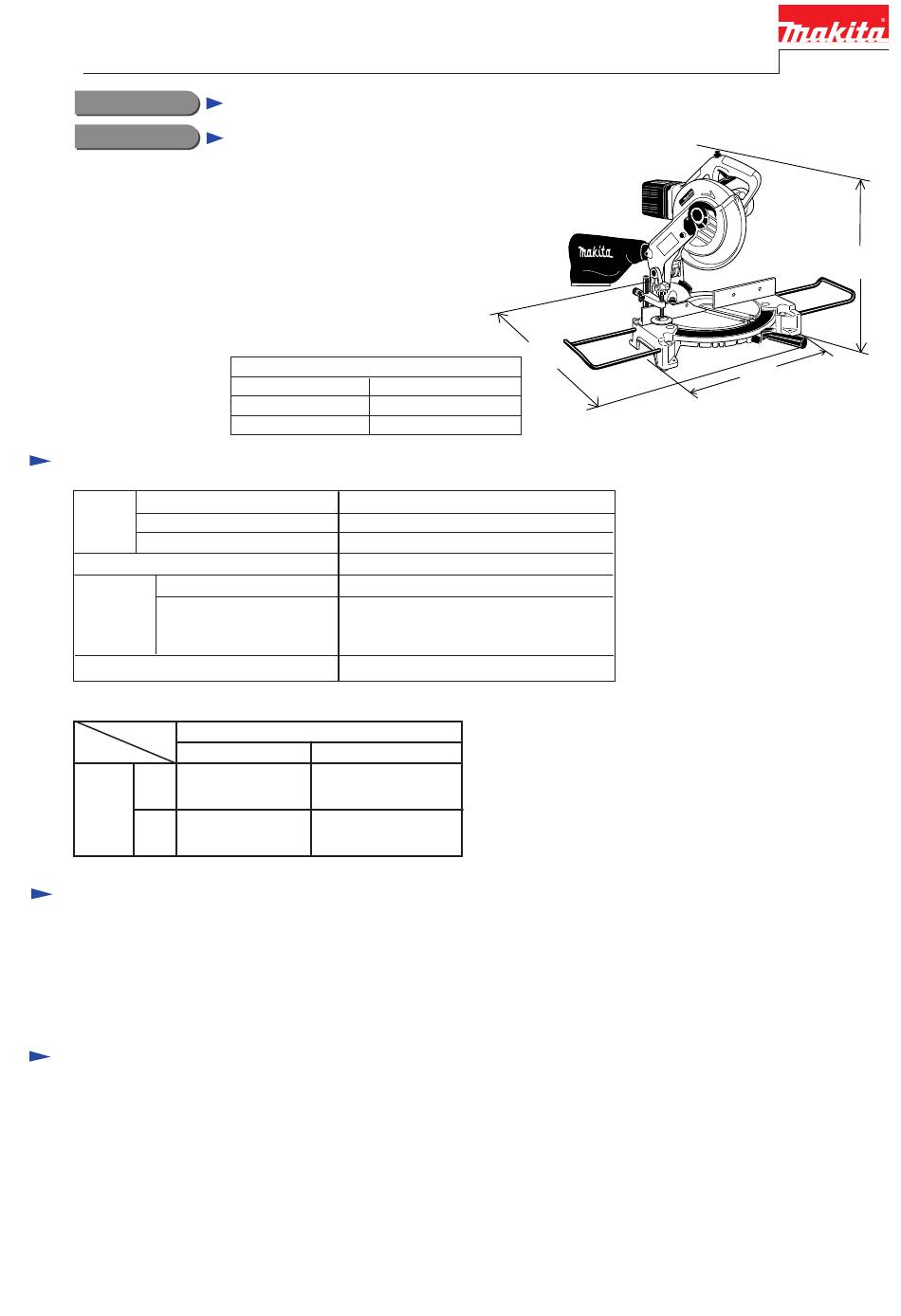

T
ECHNICAL INFORMATION
Models No.
Description
C
ONCEPTION AND MAIN APPLICATIONS
BLS820SF is included in Makita's new line-up of
24V cordless tools powered by our brand-new, 24V
Nickel-Metal Hydride battery.
Taking over the benefits of our existing Model LS800D,
yet, this machine is more powerful thanks to the new 24V battery.
Ideal for a wide range of interior works.
This model comes with
battery B2430 ( 24 V, 3.0Ah).
S
pecification
Voltage (V)
Battery
Capacity (Ah)
Energy (Wh)
No load speed : (min
Diameter : mm ( " )
Applicable
Blade
Hole diameter : mm ( " )
Net weight : Kg (lbs)
Max. cutting capacity : Height x Width / mm ( " )
61 x 122
0°
Miter
(2-3/8 x 4-13/16)
angle
61 x 85
45°
(2-3/8 x 3-3/8)
S
tandard equipment
* Charger DC24SA ..................................................... 1 pc.
* Vise assembly (excluding Canada, USA. Mexico).... 1 pc.
* Dust bag .................................................................. 1 pc.
* Holder set (excluding Canada, USA. Mexico).......... 1 pc.
* TCT.saw blade 216 w/ 40T ....................................... 1 pc.
< Note > The standard equipment for the tool shown may be differ from country to country.
O
ptional accessories
Battery B2417 24V / 1.7Ah
Battery B2430 24V / 3.0Ah
Charger DC24SA
Various chip saw blade
BLS820SF
Cordless miter saw 216mm (8-1/2")
charger DC24SA and
Dimensions : mm ( " )
Length (L)
Width (W)
Height (H)
= rpm)
-1
210 (8-1/4) - 216 (8-1/2)
15.88 (5/8) for Canada, USA. Mexico
30.0 (1-3/16 ) for European countries
25.4 (1)for Other countries
10.1 (22.3)
Bevel angle
0°
45°(left)
45 x 122
(1-3/4 x 4-13/16)
45 x 85
(1-3/4 x 3-3/8)
Holder assembly
Set plate
Vise assembly (horizontal)
W
430 (17)
528 (20-3/4)
486 (19-1/8)
24
3.0
72.0
2,300
* Battery B2430 ( 24 V, 3.0Ah) .... 1 pc.
* Box wrench 10 ......................... 1 pc.
* Triangular rule ........................... 1 pc.
* Lock off button ( for spare ) ....... 2 pcs.
* Sub plate .................................... 1 pc.
NEW TOOL
P 1 / 9
H
L
Advertisement
Related Manuals for Makita BLS820SF
Summary of Contents for Makita BLS820SF
- Page 1 BLS820SF Description Cordless miter saw 216mm (8-1/2") ONCEPTION AND MAIN APPLICATIONS BLS820SF is included in Makita's new line-up of 24V cordless tools powered by our brand-new, 24V Nickel-Metal Hydride battery. Taking over the benefits of our existing Model LS800D, yet, this machine is more powerful thanks to the new 24V battery.
- Page 2 P 2 / 9 epair < 1 > Lubrication Apply MAKITA grease N.No.1 to the following parts. * Blade case and arm section Grease Blade case Grease Grease Grease Rod 16-100 Sub arm * Turn base section Turn base Grease...
- Page 3 P 3 / 9 epair <2> Removing and assembling blade case section [1] Removing Lock handle in the raised position by pushing in stopper pin as illustrated in Fig.1. Stopper pin Fig.1 [2] Loosen the hex bolt holding center cover with socket wrench (standard equipment) by turning it counterclockwise as illustrated in Fig.2.
- Page 4 epair P 4 / 9 <3> Assembling safety cover unit [1] Insert the end of spiral spring 26 into the long hole of safety cover as illustrated in Fig.6. Spiral spring 26 Safety cover Fig.6 [2] Assemble center washer adjusting its holes to the 4 bosses of safety cover after hitching it with the another end of spiral spring 26, and assemble center cover as illustrated in Fig.7.
- Page 5 epair P 5 / 9 <4> Adjusting hex nut M8 and hex bolt M8 x 55 Hex nut M8x13 has to be so adjusted and fastened that the base can be operated smoothly without trembling. Hex nut M8x13 Flat washer 8 Turn base Base complete Hex bolt M8x55...
- Page 6 epair P 6 / 9 <6> Assembling arm section. See Fig.11. 73 71 67 Pan head screw M4x12 68 Lever 100 Turn base 69 Hex nut M10-17 70 Compression spring 5 71 Flat washer 10 72 Flat washer 10 73 Hex lock nut M10-17 79 Arm complete 80 Screw M10 81 Pin 5...
- Page 7 P 7 / 9 epair <8> Assembling yoke unit * Assemble yoke unit to motor housing with adjusting its cut part to the rib on the bottom of motor housing. * Be careful, not to pinch your finger when assembling armature to motor housing, because armature is pull strong into motor housing by the magnet power of yoke unit.
- Page 8 epair P 8 / 9 * Cutting depth has to be so adjusted that the circumference of saw blade 216mm in dia. comes to the slit of kerf board when the saw unit is on the lowest position. The adjustment can be made with hex bolt M6x16.
-
Page 9: Wiring Diagram
iring diagram P 9 / 9 Pass lead wires between rib A and B as illustrated in Fig.17. Rib A Rib B Yoke unit Motor hosing (View from armature fan side) Fig.17 Pass lead wires in handle L as illustrated in Fig.18. Set insulated terminal as illustrated in Fig.18.
