Table of Contents
Related Manuals for Curv Smart Alarm System
Summary of Contents for Curv Smart Alarm System
- Page 1 Curv Smart Alarm System Instructions...
-
Page 3: Box Contents

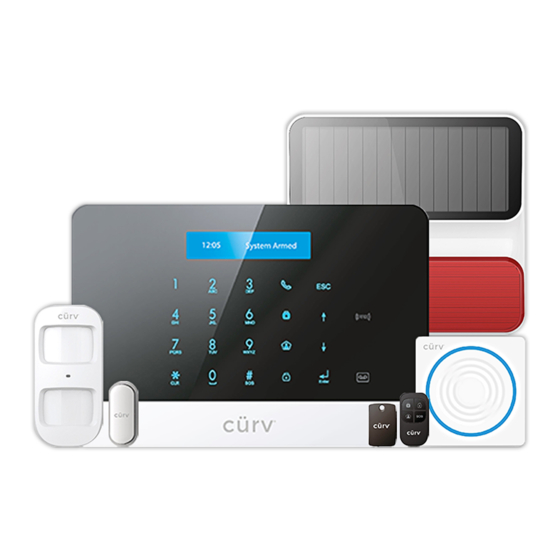

1 Box contents Alarm Control Panel x1 Pet Sensitive PIR Motion Sensor x4 Door/Window Contact x2 Remote Controls x4 RFID Tags x4 Internal x1 & External Siren x1 Documentation 2 Design TOP View CALL RFID READER/WIFI LED HOME MODE WIFI CONNECTION CLEAR DISARM Bottom View... -
Page 4: Specifications
Built-in siren (95dB) 600mAh lithium batteries included for more than 8hours standby mode. 4 Specifications Transmission distance < 80M in open space Product name Curv Smart Alarm System Backup batteries Lithium Batteries: 7.4V / 600 mAh CURV-ALR01 Internal siren 95dB Power Supply... - Page 5 5 Get your APP ready 5.1 Download APP “Curv Smart” on your smart phone. The app is available on the App Store and Google Play. 5.2 Run and install the APP on your smart phone. 5.3 Register by your Mobile number/e-mail address.
- Page 6 6 Connect the Alarm to your APP 6.1 Reset the WiFi: Disarm the system→Type Admin Code:123456 & select "Enter". Go to the settings menu→choose “WIFI Config”→choose "Connecting", then press "Enter" button to start the network setting. The following steps are to be carried out on the app 6.2 Add Device: choose “Add Device”→”...
-
Page 7: App Operation Interface
7 APP Operation Interface Device List Interface Operation Interface Settings Interface Accessories Interface... - Page 8 8 Use Alarm system with SIM card You will need a SIM card if you wish to use your Alarm system with SMS and phone calls. 8.1 Insert the SIM card in the control panel. 8.2 Plug the AC adapter to the DC Jack. 8.3 Turn on the Power switch.
-
Page 9: Connect Wireless Accessories
9 Connect wireless accessories 9.1 By the keypad: --Enter the settings menu, type Admin code123456+ Enter button; --Choose “Accessories”→”RFID Tag”/”Remote control”/”Wireless sensor”→”Add a new”; 9.2 By the APP: Connect to the alarm, choose the wireless accessory→ click “+” ADD. 9.3 Trigger the accessory which will be connected, you will hear one beep: the accessory is registered. - Page 10 By remote control Press on the “Home” button of the remote control . On the control panel Click Home mode button. By SMS Send 2 to the phone number of the SIM card in the control panel. (Only saved SMS numbers can disarm the system by SMS.) Disarm the system When your system is disarmed, all detectors are inactive except those assigned to the 24H zone.
-
Page 11: Control By Phone Call
11 Control by phone call This function applies only if you are using the Alarm system with a SIM card. This function enables you to control your alarm system by phone call. This can especially be helpful if you are located in an area without Wi-Fi or 3G/4G coverage. - Page 12 On your smartphone(if your alarm is connected to your Wi-Fi network) You receive a push notification in the Curv Smart app (you must have an Internet access on your smartphone). On your smartphone (with a SIM card in the control panel) The control panel sends an SMS noti cation to every SMS number saved.
- Page 13 Warning ATTENTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage”...
- Page 14 Standards This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities.
