Tripp Lite 932005 Owner's Manual

Tripp Lite Power Strips
Your Power Strip is designed to provide convenient multiple AC outlets.
SS Power Strips models (e.g. the SS7415-15) provide 450 joules of surge suppression to connected equipment.
Select models with surge suppression feature a green LED that lights when surge suppression components are
operating. All other Power Strips DO NOT provide connected equipment with surge or line noise protection.
ELECTRICAL CONNECTION
Plug your Power Strip into a standard, grounded electrical outlet. DO NOT plug your Power Strip into 2-wire
extension cords or adapters. DO NOT drill into or open any part of the housing. There are no user-serviceable
parts inside.
EQUIPMENT CONNECTION
Plug your equipment into the Power Strip's AC receptacles. DO NOT plug in equipment that draws more total
amps than your Power Strip's amperage rating (see label on Power Strip for amperage rating), or you will trip
the circuit breaker. If the circuit breaker trips, remove overload and depress breaker to reset. Leave enough clearance
at the end of the Power Strip to allow the circuit breaker to operate normally.
Note: Select models with a power switch feature a protective switch cover. To access the switch, simply flip open the attached cover.

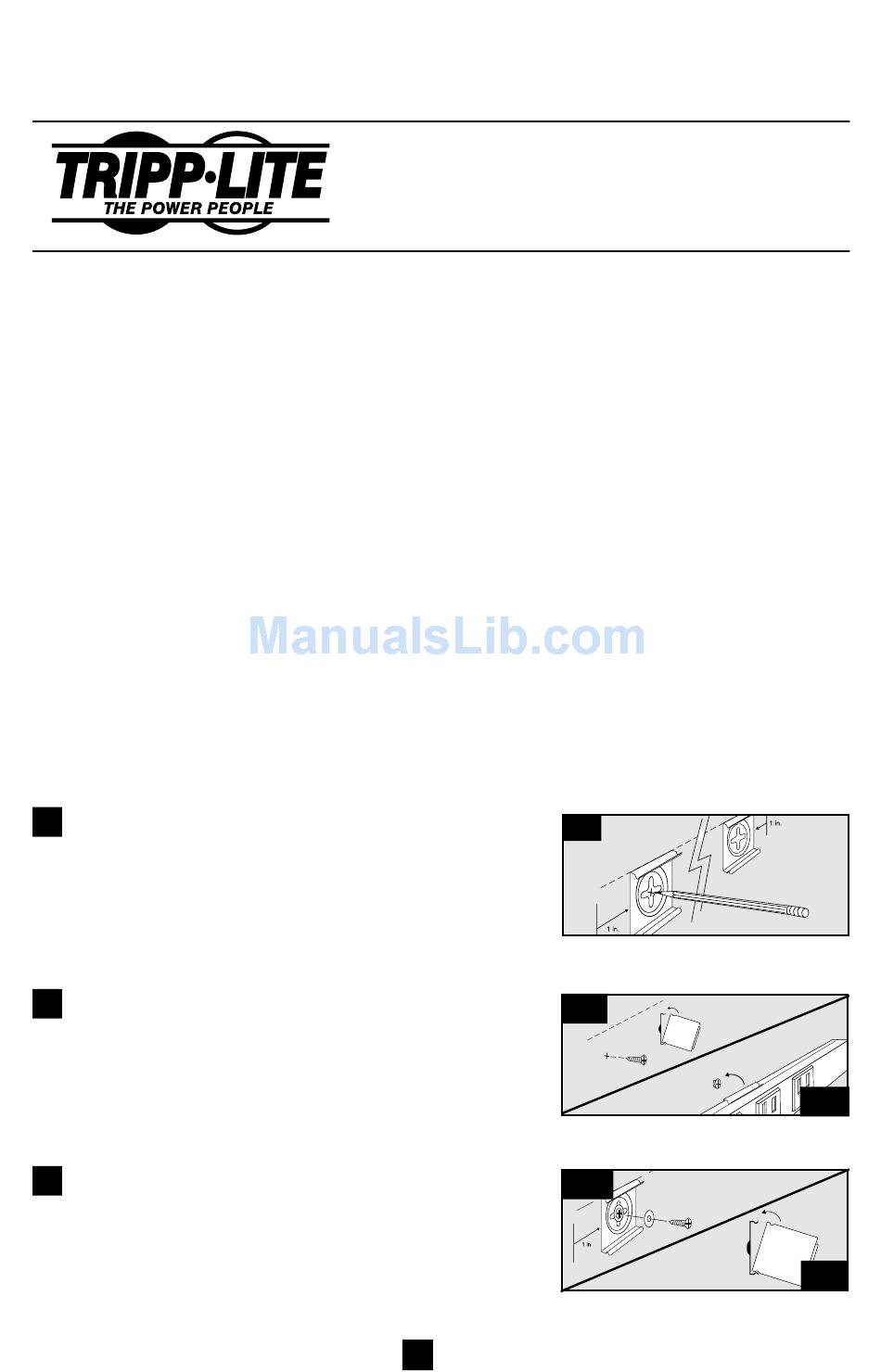

WALL MOUNTING
All standard Power Strip models feature clips for horizontal or vertical mounting on a variety of surfaces. The
user must supply other mounting hardware (screws, etc.) and determine their suitability for use with the chosen
mounting surface.
Mark a straight horizontal or vertical line where you want to
1
mount the Power Strip. At each end of the line, mark where
the edges of the Power Strip will be located. Place a mounting
clip on the mounting surface 1" in from these edges and mark
where the screws must be driven into the wall. For strips
longer than 48" (120 cm), also mark a screw hole for a third
mounting clip midway between the other two.
K K e e y y h h o o l l e e M M o o u u n n t t i i n n g g : : Drive #8 screws directly into the mount-
2
ing surface. Snap the mounting clips onto the Power Strip
(2a), then hang the Power Strip on the screws by the keyhole
slots on its mounting clips (2b).
C C l l i i p p M M o o u u n n t t i i n n g g : : Drive #10 screws through washers, through
3
the centers of the mounting clips and into the mounting
surface (3a). Place the Power Strip inside one edge of the
mounting clips, then snap the Power Strip into place (3b).
Standard Models
1111 W. 35th Street Chicago, IL 60609 USA
Customer Support: (773) 869-1234
www.tripplite.com
Français : p. 2; Español: p. 3
