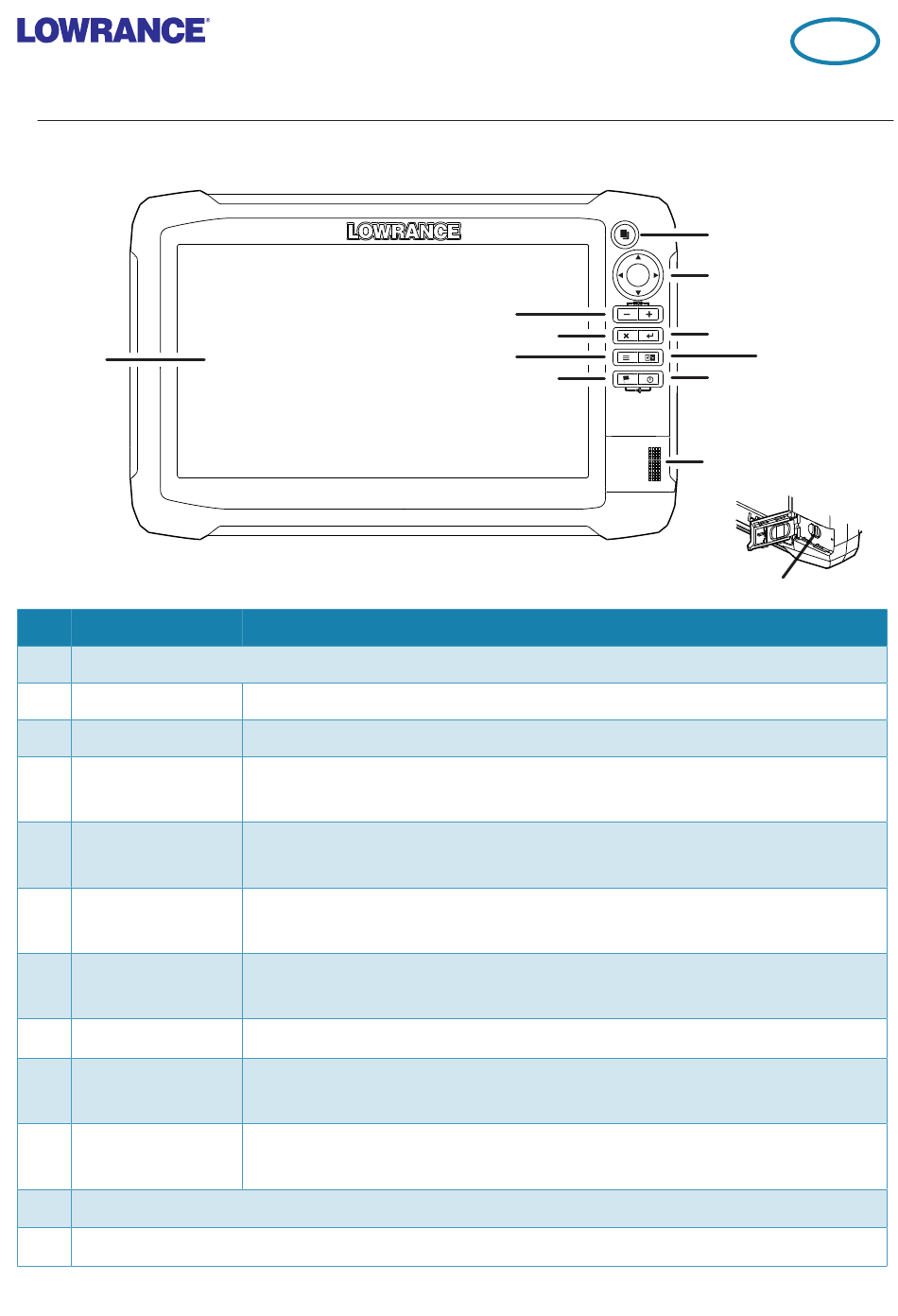

Overview
1
No. Key
1
Touchscreen
2
Pages key
3
Cursor keys
Zoom out/
4
Zoom in keys
5
Exit (X) key
6
Menu key
7
Waypoint key
8
Enter key
9
Panel key
10
Power key
Card reader door
11
microSD card readers
12
988-11255-001 EN 1/4
HDS Carbon
Quick Start Guide
Function
Activates the home page
Pans the cursor, moves through menu items and adjusts values
Zooms the screen; press keys simultaneously to save a Man
Overboard (MOB) waypoint
Exits dialogs, returns user to the previous menu level and removes
the cursor from the screen
Activates the panel menu; press twice to access the Settings
menu; press and hold to hide the panel menu
Opens the new waypoint dialog; press twice to save a waypoint;
press and hold to access the Find menu
Confirms selections and saves settings
Switches the active panel on a multiple-panel display; press and
hold to expand the active panel to a full-page panel
Opens the System Controls dialog, adjusts the backlight level and
powers the unit on/off
4
5
6
7
HDS Carbon |
Quick Start Guide - EN
EN
2
3
8
9
10
11
12
| 1

Advertisement

Table of Contents
loading

Related Manuals for Lowrance HDS Carbon

Summary of Contents for Lowrance HDS Carbon

  • Page 1 Opens the System Controls dialog, adjusts the backlight level and Power key powers the unit on/off Card reader door microSD card readers 988-11255-001 EN 1/4 HDS Carbon | Quick Start Guide - EN...

  • Page 2: System Controls Dialog

    Adjust splits Allows user to adjust panel size when multiple panels are displayed Data overlay Turns on/off data overlay display Edit overlay Allows editing of the size, position and content of overlay data HDS Carbon | Quick Start Guide - EN...

  • Page 3: Device Configuration

    When you start up the unit for the first time, or after restoring defaults, the configuration dialog appears. Configure this device Select to use the configuration wizard to configure the unit and other networked devices. Close Select to manually configure settings. HDS Carbon | Quick Start Guide - EN...

  • Page 4: Selecting Pages

    Selecting pages Tap the page icon Accessing quick splitscreen pages (quick splits) Press and hold the page icon Customizing favorite pages Several panel configurations are available: HDS Carbon | Quick Start Guide - EN...

  • Page 5: Data Overlay

    ¼ Note: You can also press and hold the key for three seconds to hide a page Menu menu. The menu is restored by pressing the key. Menu Settings menu Data overlay HDS Carbon | Quick Start Guide - EN...

  • Page 6: Using The Cursor

    Tap the screen or press the Cursor keys to activate the cursor. Drag your finger in any direction to pan the screen. Select Clear Cursor or press the Exit key to remove the cursor from the page. Multi-touch zooming HDS Carbon | Quick Start Guide - EN...

  • Page 7: Creating A Waypoint

    Press the dedicated waypoint key twice to quickly save a waypoint. Sonar Adjusting sonar settings Sensitivity and Colorline are adjusted by dragging the slide bar vertically. The slide bar is accessed by tapping Sensitivity Colorline on the Sonar menu. HDS Carbon | Quick Start Guide - EN...
  • Page 8 Selecting a sonar frequency ¼ Note: StructureScan® frequencies (800 kHz and 455 kHz) are selected from the Structure page frequency menu. HDS Carbon | Quick Start Guide - EN...
