Owner's Manual
WHEELED
WEEDTRIMMER
6.0 Horsepower
22 Inch Cut
Model No.
944.361063
CAUTION:
Read and follow all
Safety Rules and In struc tions
before operating this equipment.
Sears Canada, Inc., Toronto, Ontario M5B 2B8

Advertisement

Table of Contents
loading

Related Manuals for Craftsman 944.361063

Summary of Contents for Craftsman 944.361063

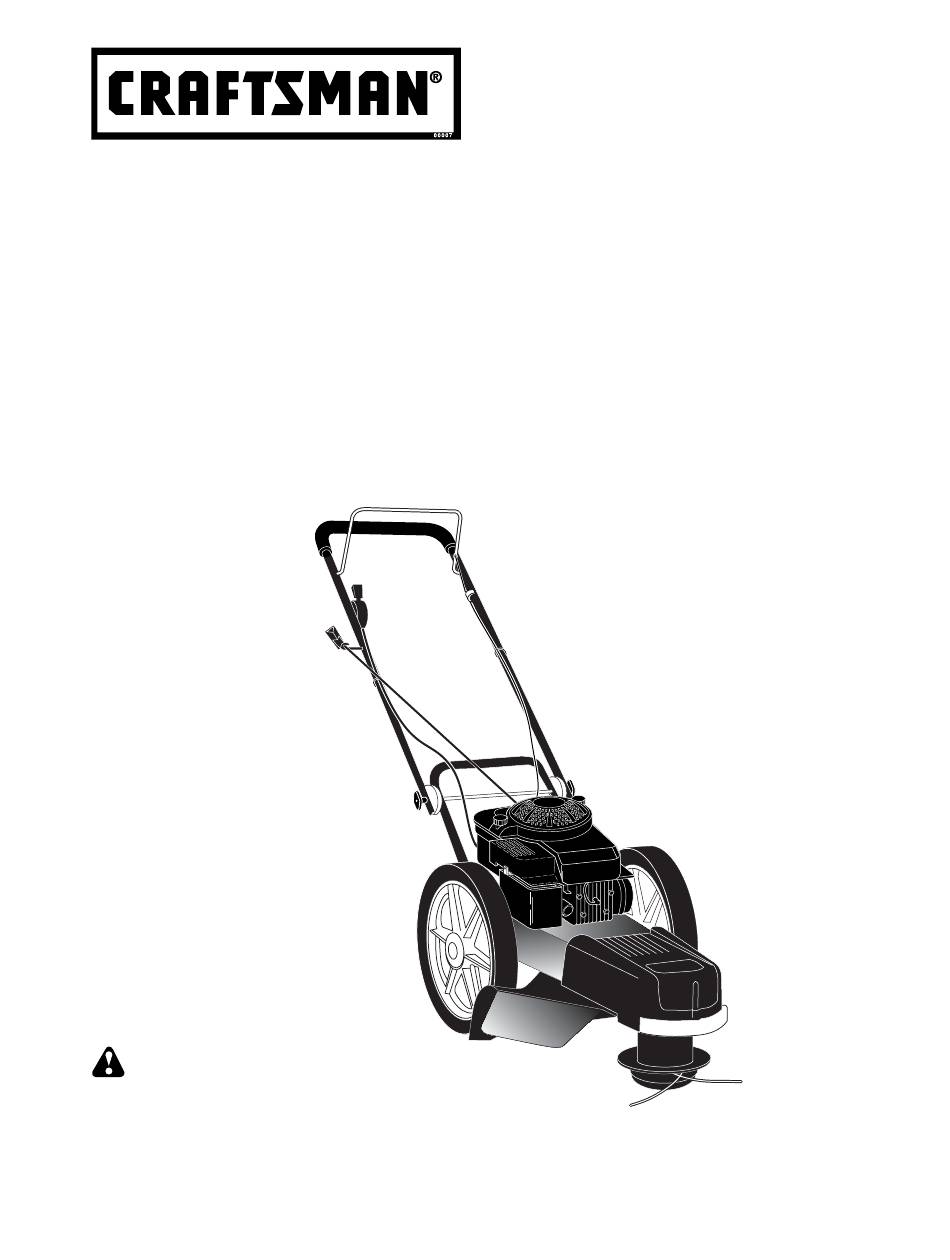

  • Page 1 Owner’s Manual WHEELED WEEDTRIMMER 6.0 Horsepower 22 Inch Cut Model No. 944.361063 CAUTION: Read and follow all Safety Rules and In struc tions before operating this equipment. Sears Canada, Inc., Toronto, Ontario M5B 2B8...

  • Page 2: Table Of Contents

    Sears Canada, Inc. will repair free of charge any defect in material or work man ship. If this Craftsman Weedtrimmer is used for commercial or rental purposes, this warranty applies for only 90 days from the date of purchase.

  • Page 3: Safety Rules

    SAFETY RULES The operation of any trimmer can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your trimmer or per form ing any adjustments or repairs. We rec om mend standard safety glasses or a wide vision safety mask worn over spectacles.
  • Page 4 II. SLOPE OPERATION IV. SERVICE Slopes are a major factor related to slip • Use extra care in handling gasoline and and fall accidents which can result in other fuels. They are fl ammable and severe injury. All slopes require extra cau- vapors are explosive.

  • Page 5: Assembly / Pre-Operation

    ASSEMBLY / PRE-OPERATION Read these instructions and this manual in TO REMOVE TRIMMER FROM its entirety before you attempt to assemble CAR TON or operate your new trimmer. 1. Remove loose parts included with trim- IMPORTANT: This trimmer is shipped mer.

  • Page 6: Operation

    OPERATION KNOW YOUR TRIMMER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR TRIMMER. Compare the illustrations with your trimmer to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your trimmer or in literature supplied with the product. Learn and understand their meaning.
  • Page 7 TO ADJUST TRIMMING HEIGHT CAUTION: Stop the engine and wait for all moving parts to stop. Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug. The height of cut can be set to six (6) dif- ferent positions ranging from 1-1/2 inches to 3 inches.
  • Page 8 ADD GASOLINE 2. Move throttle control lever to FAST position. • Fill fuel tank to bottom of tank fi ller neck. 3. Hold upper handle fi rmly and pull Do not overfi ll. Use fresh, clean, regular starter handle quickly. Do not allow unleaded gasoline with a minimum of starter rope to snap back.

  • Page 9: Maintenance Schedule

    MAINTENANCE GENERAL RECOMMENDATIONS IMPORTANT: Do not oil or grease plastic wheel bearings. Vis cous lu bri cants will The warranty on this trimmer does not cover at tract dust and dirt that will short en the items that have been subjected to operator life of the self- lu bri cat ing bearings.
  • Page 10 TRIMMER Always observe safety rules when per- form ing any main te nance. TIRES • Keep tires free of gasoline, oil, or insect control chemi cals which can harm rub- ber. • Avoid stumps, stones, deep ruts, sharp objects and other hazards that may cause tire damage.
  • Page 11 NOTE: Although multi-viscosity oils (5W30, 3. Clean by gently tapping on a fl at sur- 10W30 etc.) improve starting in cold weather, face. If very dirty, replace car tridge. these multi-viscosity oils will result in in- CAUTION: Pe tro leum solvents, such as creased oil consumption when used above ker o sene, are not to be used to clean car- 32°F.

  • Page 12: Service And Adjustments

    SERVICE AND ADJUSTMENTS TO REMOVE/REPLACE TRIMMER HEAD WARNING: To avoid serious injury, DRIVE BELT before performing any service and adjustments: 1. Remove screw at front of chassis cover. 1. Stop engine. 2. Lift cover up and away from trimmer. 2. Make sure the rotating lines and all moving parts have completely stopped.
  • Page 13 11. Assemble new belt, idler pulleys and screw securely. bottom belt keeper to idler bracket. Always use Craftsman replacement parts Tighten pulley bolts securely. to assure proper fi t and long life. NOTE: Be sure belt is inside top belt keeper on idler assembly.

  • Page 14: Storage

    STORAGE Immediately prepare your trimmer for stor- Also, alcohol blended fuels (called gasohol age at the end of the season or if the unit or using ethanol or methanol) can attract will not be used for 30 days or more. moisture which leads to separation and formation of acids during storage.

  • Page 15: Troubleshooting

    TROUBLESHOOTING - See appropriate section in manual unless directed to a Sears Service Center. PROBLEM CAUSE CORRECTION Does not start 1. Dirty air fi lter. 1. Clean/replace air fi lter. 2. Out of fuel. 2. Fill fuel tank. 3. Stale fuel. 3.

  • Page 16: Repair Parts

    REPAIR PARTS CRAFTSMAN WEED TRIMMER - - MODEL NUMBER 944.361063 22 2...
  • Page 17 CRAFTSMAN WEED TRIMMER - - MODEL NUMBER 944.361063 PART DESCRIPTION - - - Engine, Briggs & Stratton, Model Number 122H02-0220-B1 (See Breakdown) 150406 Bolt, Engine Mounting 3/8-16 179466 Pulley, Engine (Includes Setscrew, Key #4) 169821X479 Handle, Lower 150078 Screw, Hex Washer Head 5/16-18 x .75...
  • Page 18 CRAFTSMAN WEED TRIMMER - - MODEL NUMBER 944.361063 20 44...
  • Page 19 CRAFTSMAN WEED TRIMMER - - MODEL NUMBER 944.361063 PART DESCRIPTION 174031X558 Chassis Assembly 182133 Line, Trimmer .155 diameter x 18.75 long 173715 Screw, Self-Tapping 5/16-18 x 1 185476 V-Belt 172145X004 Bracket, Idler 166042 Pulley, Idler, V-Groove 173716 Bolt, Hex Head 3/8-16 x 1.25...
  • Page 20 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 122H02-0220-B1 1058 OWNER'S MANUAL 1019 LABEL KIT 122H02-0220-B1...
  • Page 21 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 122H02-0220-B1 121 CARBURETOR OVERHAUL KIT 977 CARBURETOR GASKET SET 122H02-0220-B1...
  • Page 22 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 122H02-0220-B1 1059 1211 1210 1036 EMISSION LABEL 122H02-0220-B1...
  • Page 23 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 122H02-0220-B1 358 ENGINE GASKET SET 122H02-0220-B1...
  • Page 24 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 122H02-0220-B1 KEY PART KEY PART DESCRIPTION DESCRIPTION 697322 Cylinder Assembly 498826 Short Block (Replacement 399269 Kit-Bushing/Seal Engine 125H02-0005-D1) 299819 • Seal-Oil (Magneto Side) 497465 Manifold-Intake 493279 Sump-Engine 272199 • Gasket-Intake 691160 Head-Cylinder 691650 Screw (Intake Manifold) 692249 Gasket-Cylinder Head...
  • Page 25 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 122H02-0220-B1 KEY PART KEY PART DESCRIPTION DESCRIPTION 690662 Nut (Flywheel) 393760 Defl ector-Muffl er 802574 Armature-Magneto 690661 Screw (Muffl er Defl ector) 691061 Screw (Armature Magneto) 690345 Screw (Breather Passage Cover) 802592 Spark Plug 691855 Spring-Friction 692390...
  • Page 26 SERVICE NOTES...
  • Page 28 186744 Rev. 1 06.18.03 BY Printed in U.S.A.
