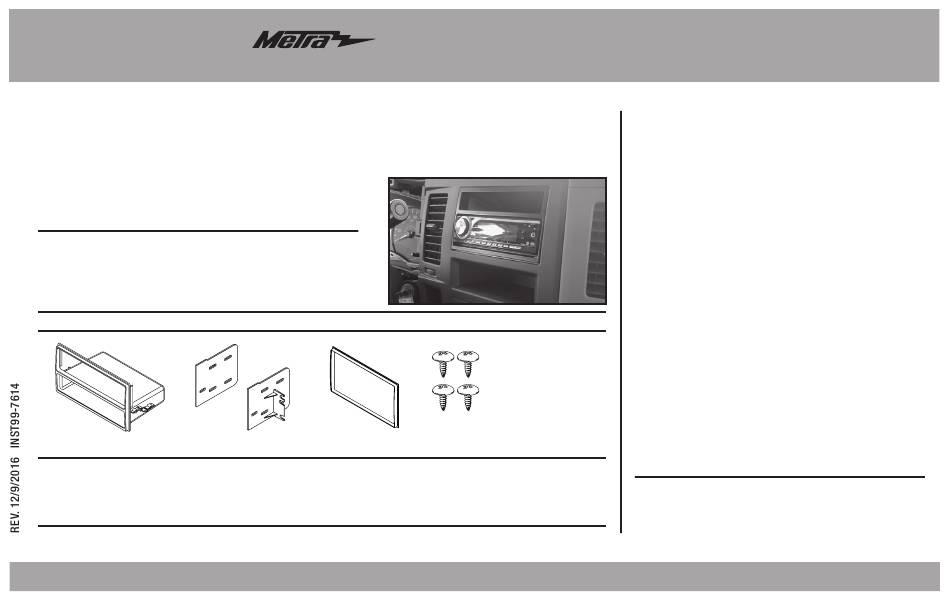

Installation instructions for part 99-7614
Nissan NV 2012-2014, NV
Nissan Quest
(without NAV or rear seat entertainment)
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
KIT COMPONENTS
• A) Radio housing • B) Radio brackets (C) • C) ISO DDIN trimplate • D) (4) #8 x 3/8" Phillips screws
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7552
Antenna Adapter: • 40-NI12
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
METRA - The World's best kits
®
(without NAV)
99-7614
C
D
®
metraonline.com
2015-up,
2011-2012
Dash Disassembly
Kit Assembly
CAUTION!
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
Table of Contents
Nissan
– NV 2012-2014 .................................................2-4
– NV 2015-up (without NAV) ...............................2-4
– Quest (without NAV or rear seat entertainment)
2011-2012......................................................5-6
– ISO DIN radio provision with pocket .................... 7
– ISO DDIN radio provision ..................................... 7
All accessories, switches, climate controls panels, and
© COPYRIGHT 2016 METRA ELECTRONICS CORPORATION
Advertisement
Related Manuals for Metra Electronics 99-7614
Summary of Contents for Metra Electronics 99-7614
- Page 1 ® Installation instructions for part 99-7614 Nissan NV 2012-2014, NV 2015-up, Table of Contents (without NAV) Nissan Quest 2011-2012 (without NAV or rear seat entertainment) Dash Disassembly 99-7614 Nissan – NV 2012-2014 ..........2-4 – NV 2015-up (without NAV) .......2-4 KIT FEATURES –...
- Page 2 ® 99-7614 Dash Disassembly NV 2012-2014, NV (without NAV) 2015-up 1. Unclip and remove the A/C vent to the right side of the factory radio. (Figure A) 2. Remove the (2) Phillips screws exposed behind vent on radio trim panel. (Figure B) 3.
- Page 3 ® 99-7614 Dash Disassembly (Cont) 5. Unclip the circle trim around the key cylinder. 6. Unclip and remove the gauge cluster trim panel. (Figure E) 7. Remove (2) Phillips screws exposed behind the panel on the left side of the radio trim panel.
- Page 4 ® 99-7614 Dash Disassembly Quest (without NAV or rear seat 3. Unclip and pull center console entertainment) 2011-2012 toward rear of vehicle. 1. Unclip and remove the panels from Note: You do not have to fully the bottom left and right side of the remove console.
- Page 5 ® 99-7614 Dash Disassembly (Cont) 6. Remove (1) Phillips screw from the trim panel above the glove box then unclip and remove the panel. (Figure F) 7. Remove (1) Phillips screw from the cup holder panel then unclip and remove the panel. (Figure G)
- Page 6 ® 99-7614 Dash Disassembly (Cont) 8. Remove (2) Phillips screws from the a/c control panel and unclip and let hang. (Figure G) 9. Remove (2) Phillips screws from the bottom of the radio trim panel including the vents then unclip and remove the panel.
- Page 7 Phillips screws provided. (Figure A) radio. (Figure A) Slide the radio into the bracket/ Note: 99-7614 radio brackets can housing assembly and secure be used in place of the factory using the screws supplied with the brackets.
- Page 8 ® Installation instructions for part 99-7614 IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
- Page 9 ® Instrucciones de instalación para la pieza 99-7614 Nissan NV 2012-2014, NV 2015-up, (sin NAV) Indice Nissan Quest 2011-2012 (sin NAV o entretenimiento para el asiento trasero) Desmontaje del tablero 99-7614 Nissan – NV 2012-2014 ..........2-4 – NV 2015-up (sin NAV) ........2-4 CARACTERÍSTICAS DEL KIT...
- Page 10 ® 99-7614 Desmontaje del tablero NV 2012-2014, NV (sin NAV) 2015 y mas 1. Desenganche y quite la rejilla del aire acondicionado que está a la derecha del radio de fábrica. (Figura A) 2. Quite los (2) tornillos Phillips que quedan a la vista detrás de la...
- Page 11 ® 99-7614 Desmontaje del tablero (Cont) 5. Desenganche la moldura circular alrededor del cilindro de la llave. 6. Desenganche y quite el panel de la moldura del conjunto de indicadores. (Figura E) 7. Quite los (2) tornillos Phillips que quedan a la vista atrás del panel del lado izquierdo del panel de la moldura del radio.
- Page 12 ® 99-7614 Desmontaje del tablero Quest (sin NAV o entretenimiento para 3. Desenganche y jale la consola el asiento trasero) 2011-2012 central hacia la parte de atrás del vehículo. 1. Desenganche y quite los paneles Nota: No es necesario quitar de la parte izquierda y derecha de abajo de la consola central.
- Page 13 ® 99-7614 Desmontaje del tablero (Cont) 6. Quite (1) tornillo Phillips del panel de la moldura que está arriba de la guantera, luego desenganche y quite el panel. (Figura F) 7. Quite (1) tornillo Phillips del panel de la moldura del portavasos, luego desenganche y quite el panel.
- Page 14 ® 99-7614 Desmontaje del tablero (Cont) 8. Quite los (2) tornillos Phillips del panel de control del aire acondicionado y desenganche y déjelo colgando. (Figura G) 9. Quite los (2) tornillos Phillips de la parte de abajo del panel de la moldura del radio, incluyendo las rejillas, luego desenganche y quite el panel.
- Page 15 (Figura A) 2. Asegure los soportes de radio Nota: 99-7614 soportes de radio a la carcasa de radio usando se pueden utilizar en lugar de los los (4) tornillos Phillips de 3/8 soportes de fábrica.
- Page 16 ® Instrucciones de instalación para la pieza 99-7614 IMPORTANTE Si tiene dificultades con la instalación de este producto, llame a nuestra línea de soporte técnico al 1-800-253-TECH. Antes de hacerlo, revise las instrucciones por segunda vez y asegúrese de que la instalación se haya realizado exactamente...
