Summary of Contents for Omega OMEGA+

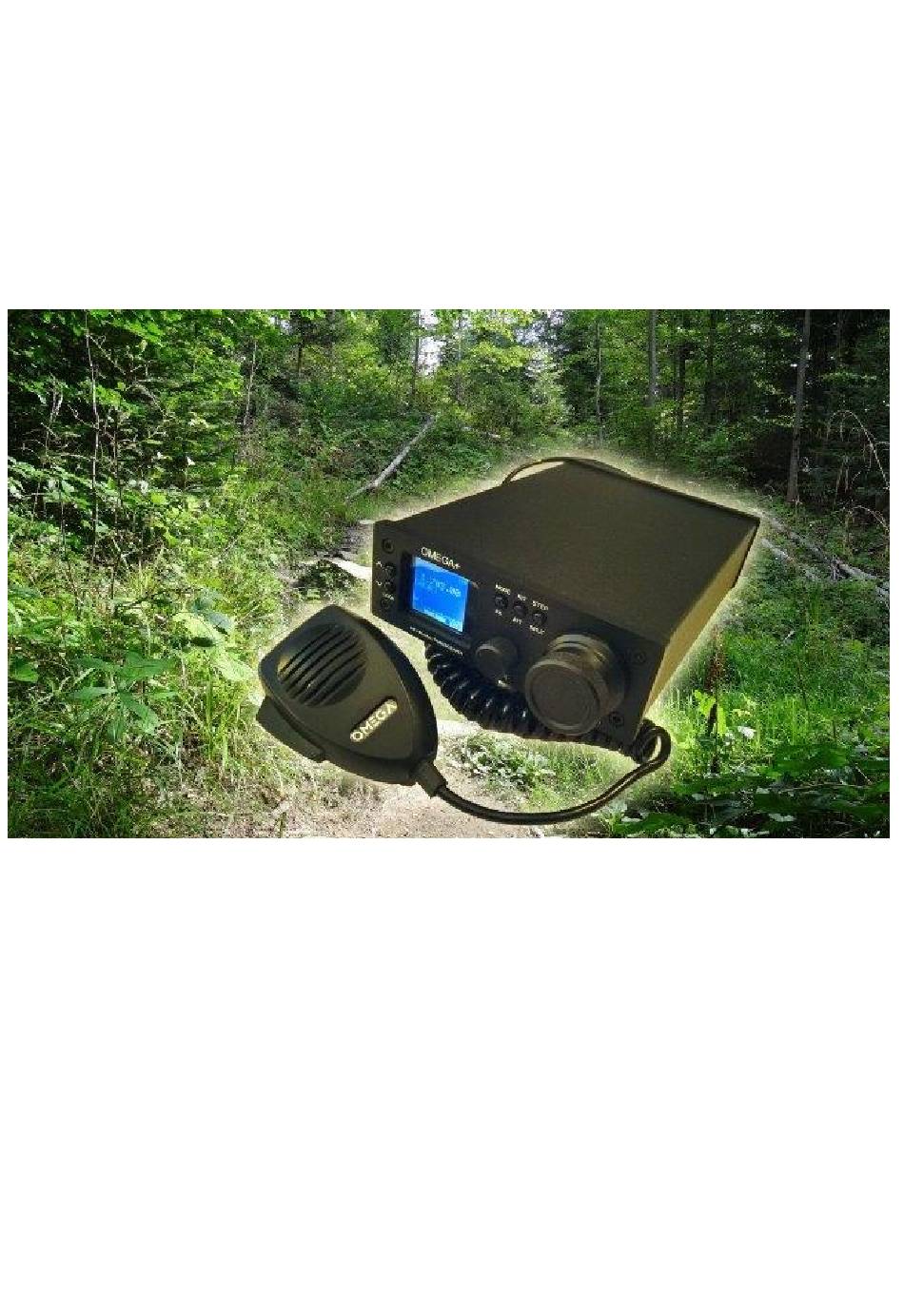

- Page 1 TRANSCEIVER QRP OMEGA+ OMEGA+ PORTABLE RADIO INSTRUCTION MANUAL www.omega-radio.eu...
-
Page 2: Specification
SPECIFICATION Frequency coverage (MHz) RX: 0.100 - 30.000 1.800 - 2.000 3.500 - 3.800 5.100 - 5.500 7.000 - 7.200 10.100 - 10.150 14.000 - 14.350 18.069 - 18.168 21.000 - 21.450 24.890 - 24.990 28.000 - 30.000 Mode: USB / LSB / CWU / CWL Antenna conector: SO-239 Power supply requirement: 11-14V DC Power consumption: Tx max power: 1,6A;... -
Page 3: Front Panel
FRONT PANEL MODE STEP 13,8V band 20m SPLIT 14.073.00 SETUP LOCK VOLUME press to select frequency band up band 20m 14.073.00 press to select frequency band down 14.073.00 press and hold to select either VFO A or VFO B VFO A press and hold to lock all buttons and vfo knob 14.073.00 LOCK... - Page 4 SETUP 13,8V to enter SETUP press simultaneously buttons band 20m and hold 3 seconds. 14.073.00 SETUP In SETUP mode: to select option turn vfo knob, to enter option press and hold , to save changes press and hold LOCK 1. EXIT SETUP – enter to exit setup a.
- Page 5 OMEGA+ SETTING BFO XF 2,45kHz USB +1,5kHz CENTER FREQUENCY 1199 8 LSB - 1,5kHz to enter SETUP press simultaneously buttons and hold 5 seconds. 13,8V band 20m In SETUP mode: to select option turn vfo knob, to enter 14.073.00 SETUP...
- Page 6 SETTING CW 13,8V band 20m to enter SETUP press simultaneously 14.073.00 SETUP buttons and hold 5 seconds. In SETUP mode: to select option turn vfo knob, to enter LOCK option press and hold , to save changes press and hold 7.CW release setup -- press...
-
Page 7: Rear Panel
3. 13,8V - connect a regulated 13,8V DC power source 4. EXT-SP- connect the external speaker, use special adapter 5. MIC - connect the microphone, or digi mode EXTERNAL SPEAKER 8ohm / 2W EXT.SP 13,8V OMEGA ANTENNA POWER SUPPLY DC 13,8 V max 2A OMEGA+ DIGI MODE... - Page 8 DIGI MODEM Use the microphone connector to connect OMEGA+ DIGI MODEM. Connect the DIGI MODEM IN socket to speaker Jack socket in computer. Connect the DIGI MODEM OUT socket to line-in Jack socket in computer. EXT.SP 13,8V OMEGA+ DIGI MODEM LINE IN.
- Page 9 PROCESSOR Install the microphone processor unit to level out large fluctuations in your voice while you speak. Use P1 to set input signal level. Use P2 to set output signal level. Use P3 to set compression level. P3 COMPRESSION OUTPUT VOLTAGE LEVEL INPUT VOLTAGE ( MIC) SPEAKER FILTER Use the external speaker filter to selectively cut high frequencies of AF output signal.
-
Page 10: Connecting Peripheral Equipment
CONNECTING PERIPHERAL EQUIPMENT Mini jack 3,5mm stereo Mini jack 3,5mm stereo EX-SP 8 OHM Straight KEY +9 V TX +9 V RX EX-SP 8 OHM... - Page 11 note...
